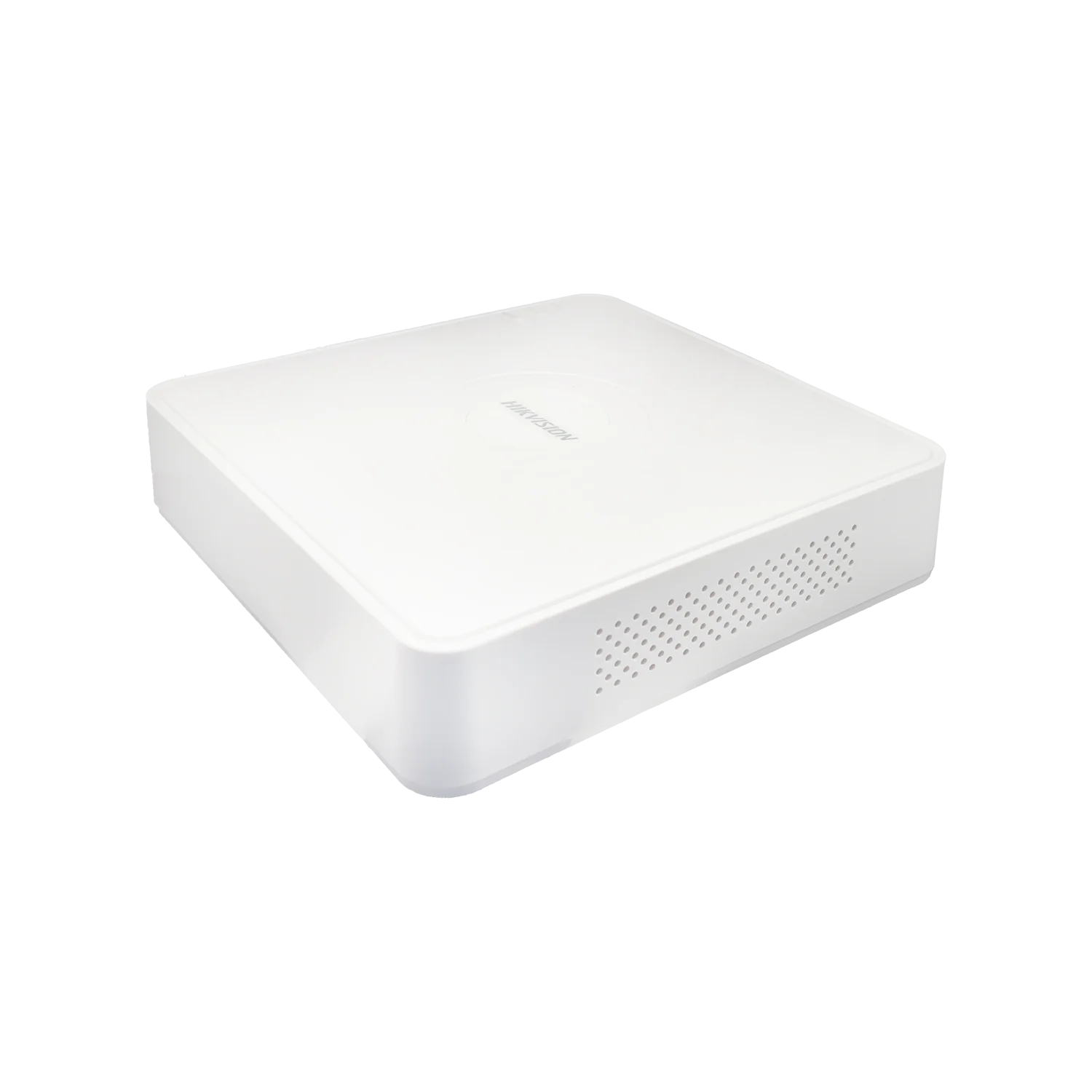

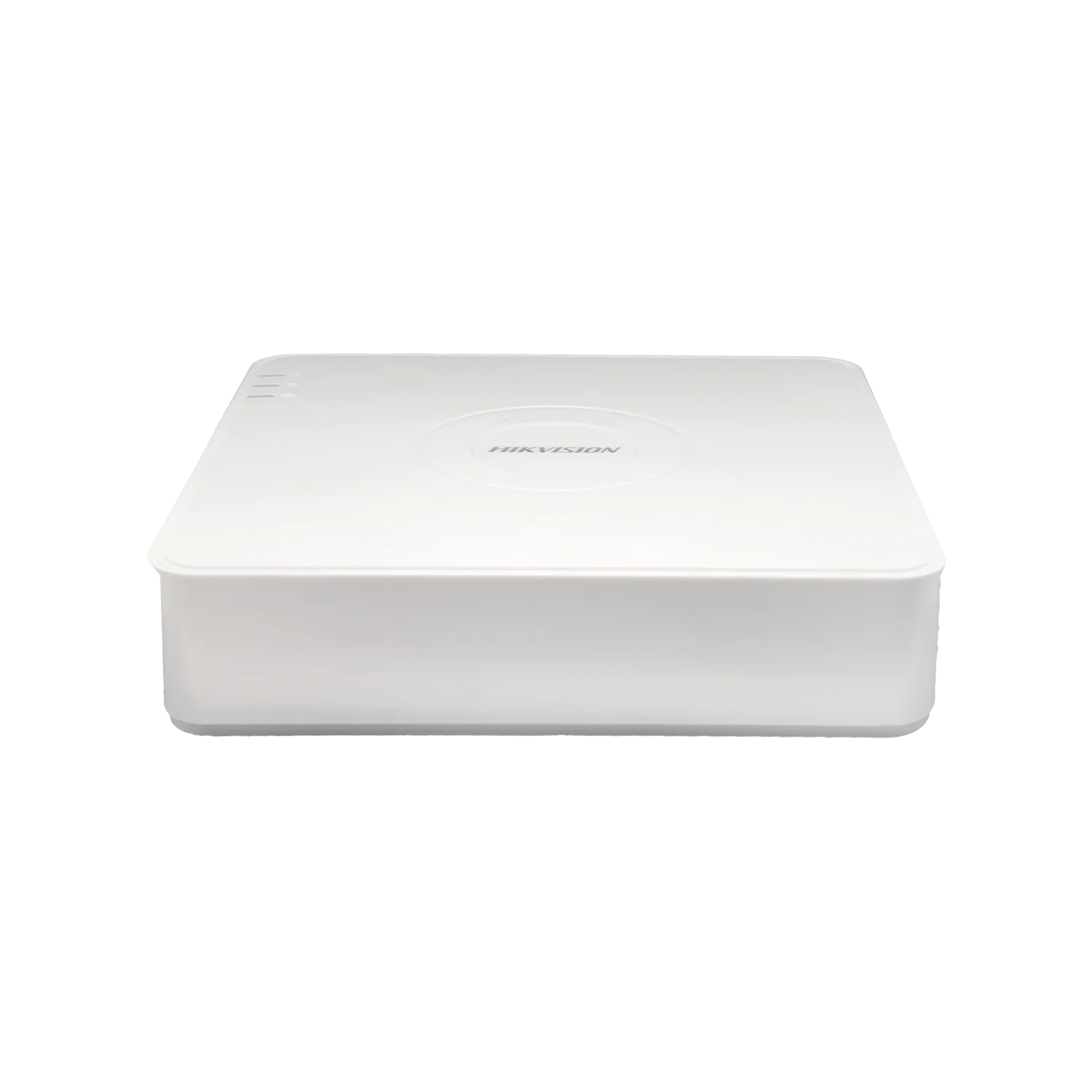

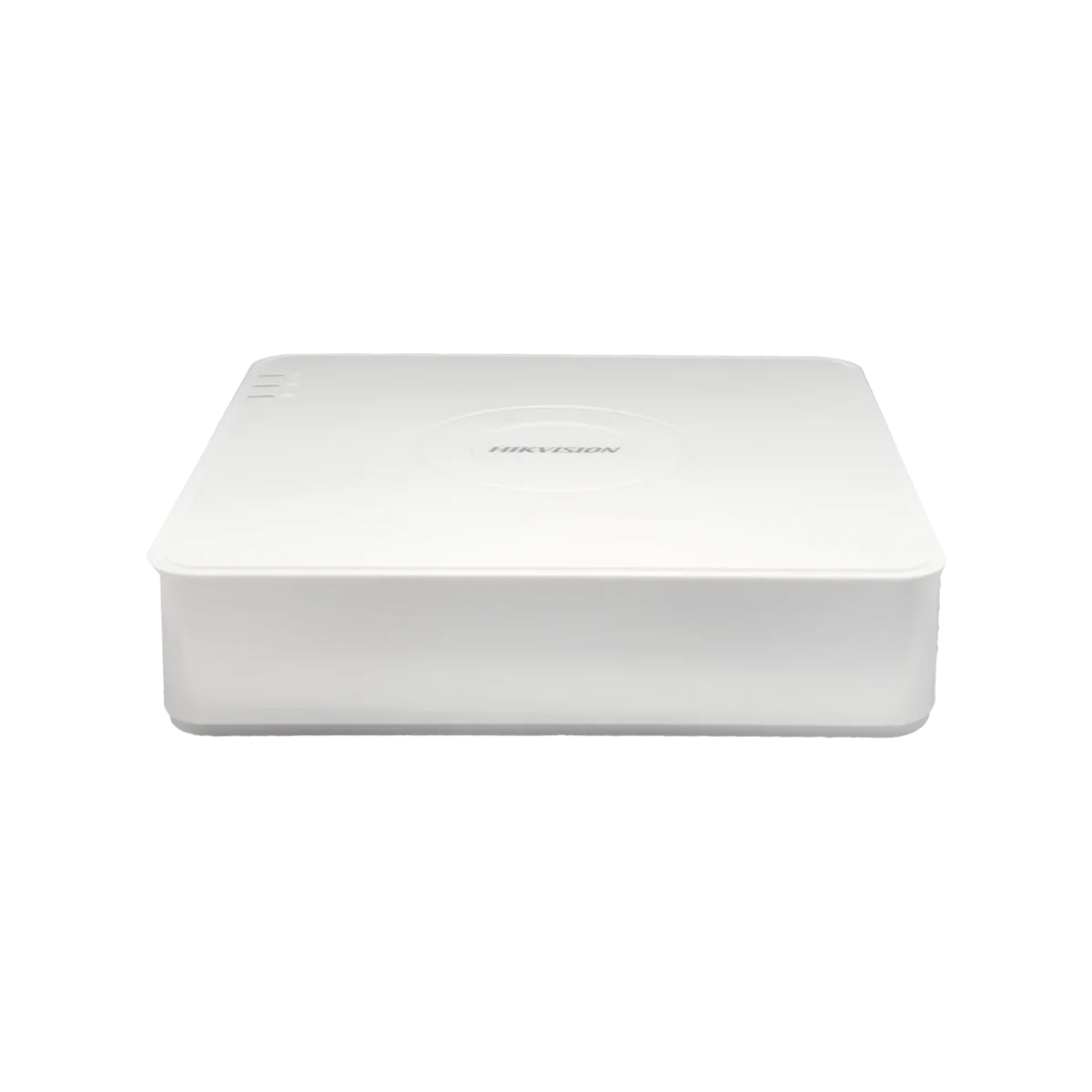

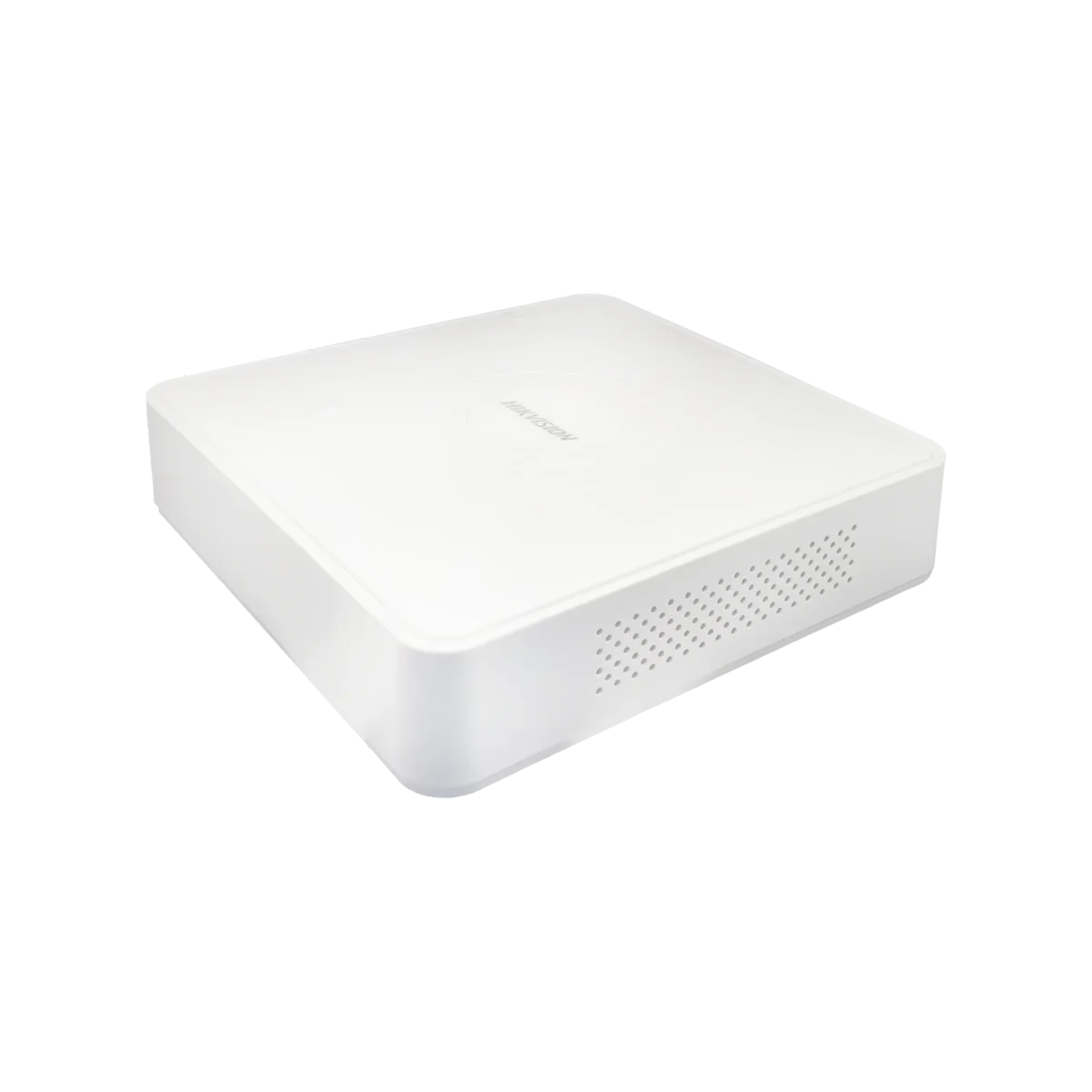

Hikvision DVR DS-7104HGHI-M1 4CH 2MP DVR



4-ch 1080p Lite Mini 1U H.265 DVR

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 5-ch IP camera inputs (up to 2 MP)
  • Up to 1080p Lite@30 fps encoding capability
  • Max. 1200 m for 720p HDTVI signal

₨ 9,199

Buy Now
Availability: In Stock

HikVision DVR DS-7104HGHI-M1 4CH 2MP DVR

HikVision’s DVR DS-7104HGHI-M1 is the best 4-channel 2MP DVR you need for your home!

Motion Detection 2.0

The new version of motion detection, based on deep learning, is now active by default for all analogue channels. It can accurately identify humans and vehicles, significantly reducing false alarms triggered by objects such as leaves and lights. Additionally, the system supports quick search by object or event type.

High-Resolution Recording With Better Video Compression

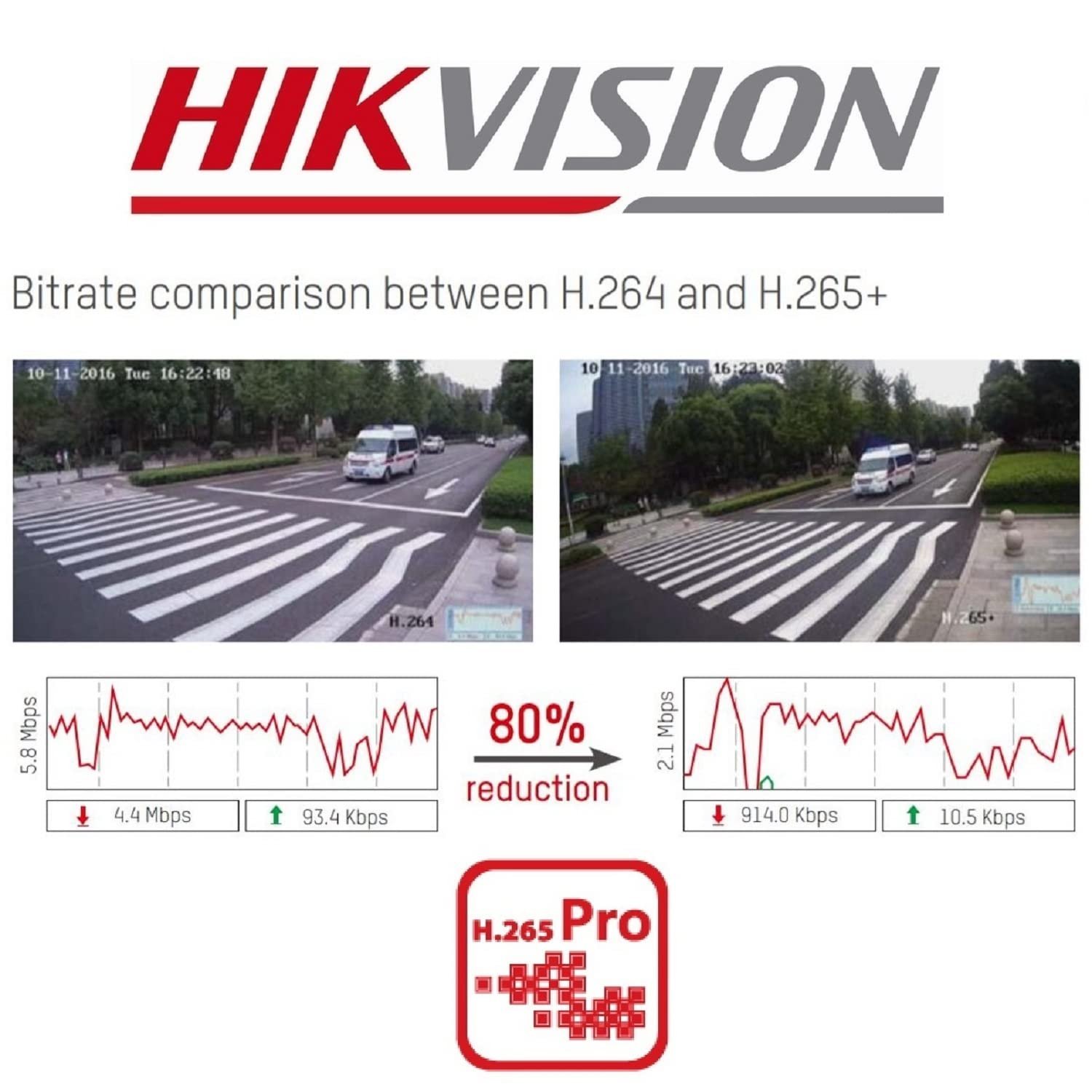

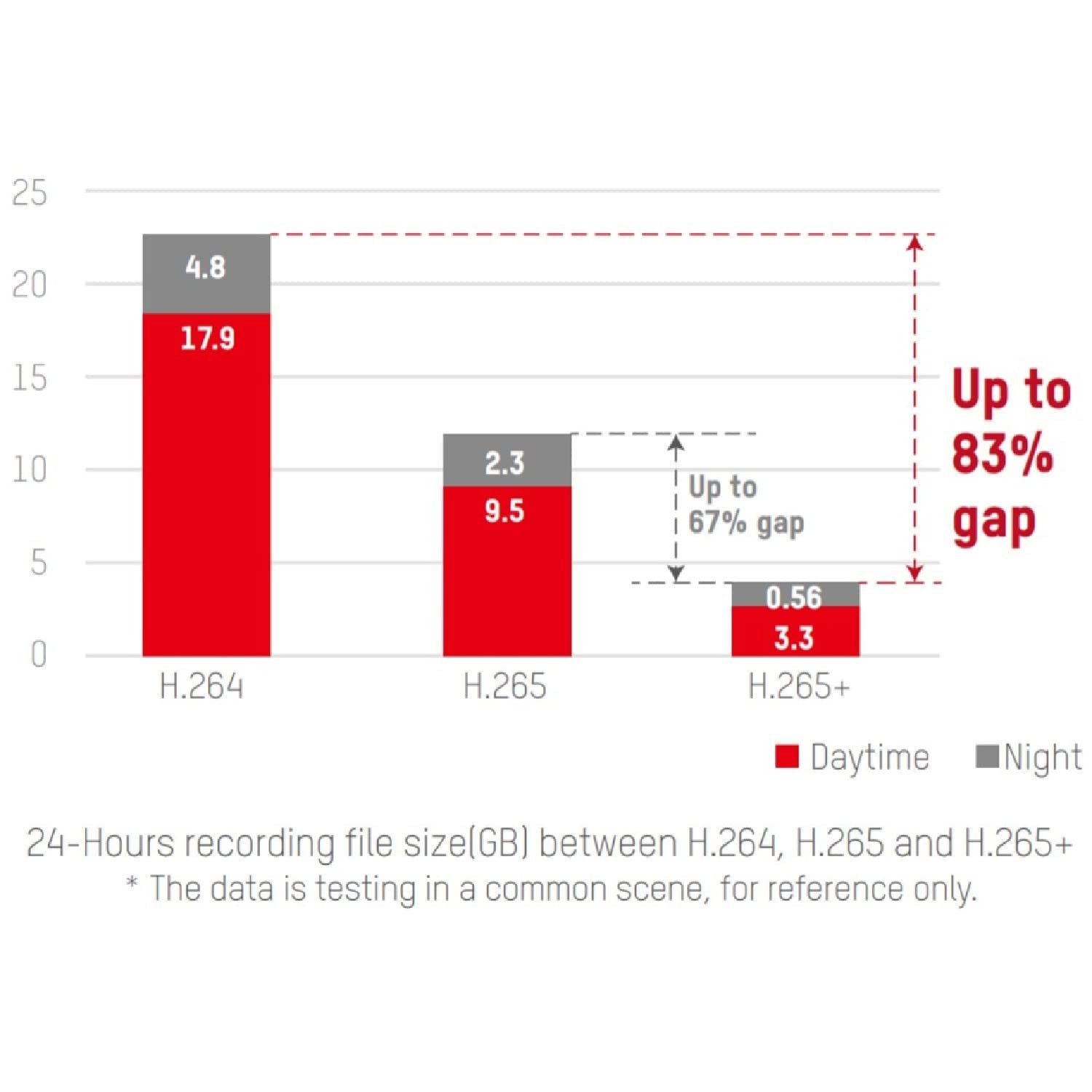

The HikVision DVR features high-resolution recording and can effortlessly capture 720p and 1080p videos. It also utilizes an advanced video compression format, ranging from H.265 Pro+ and H.265 Pro to H.265, H.264+ and H.264. These features are incredibly useful for users!

Specs

  • Motion Detection 2.0
  • 265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 5-channel IP camera inputs
  • Up to 1080p Lite@30 fps encoding capability
  • 1200 m for 720p HDTVI signal



Make sure to order the HikVision 4-channel 2MP DVR from Orient CCTV now. Don’t wait!

Show More
Weight 1.5 kg
Dimensions 30 × 24 × 8 cm
Motion Detection 2.0
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Recording
Video Compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding Resolution For 1080p stream access: 1080p Lite / 720p Lite For 720p stream access: 720p / WD1 / 4CIF / VGA / CIF
Frame Rate Main stream: For 1080p stream access: 1080p Lite / 720p Lite @25 fps(P)/30 fps (N) For 720p stream access: 720p / WD1 @ 25fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 4 Mbps
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Video and Audio
IP Video Input 1-ch (up to 5-ch) Up to 1080p resolution Support H.265+ / H.265 / H.264+ / H.264 IP cameras
Analog Video Input 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 1080p25, 1080p30, 720p25, 720p30
AHD Input 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input 1-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio Reuse the first audio input
Synchronous playback 4-ch
Network
Total Bandwidth 64 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Remote Connection 32
Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 4 TB capacity for each disk
USB Interface Rear panel: 2 × USB 2.0
Alarm In/Out N/A
General
Power Supply 12 VDC, 1.5 A
Consumption ≤ 16 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to +31 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight ≤ 0.8 kg (without HDD, 1.8 lb.)

Dimensions: 30*24*8 cm

Weight: 1.5Kg

Warranty: 1 Year

Warranty Condition: Electric Surge, Physical damage are not included in warranty

What’s in the box: 1* 4CH DVR, 1* User manual, 2* Hard Disk Jack, Screws
