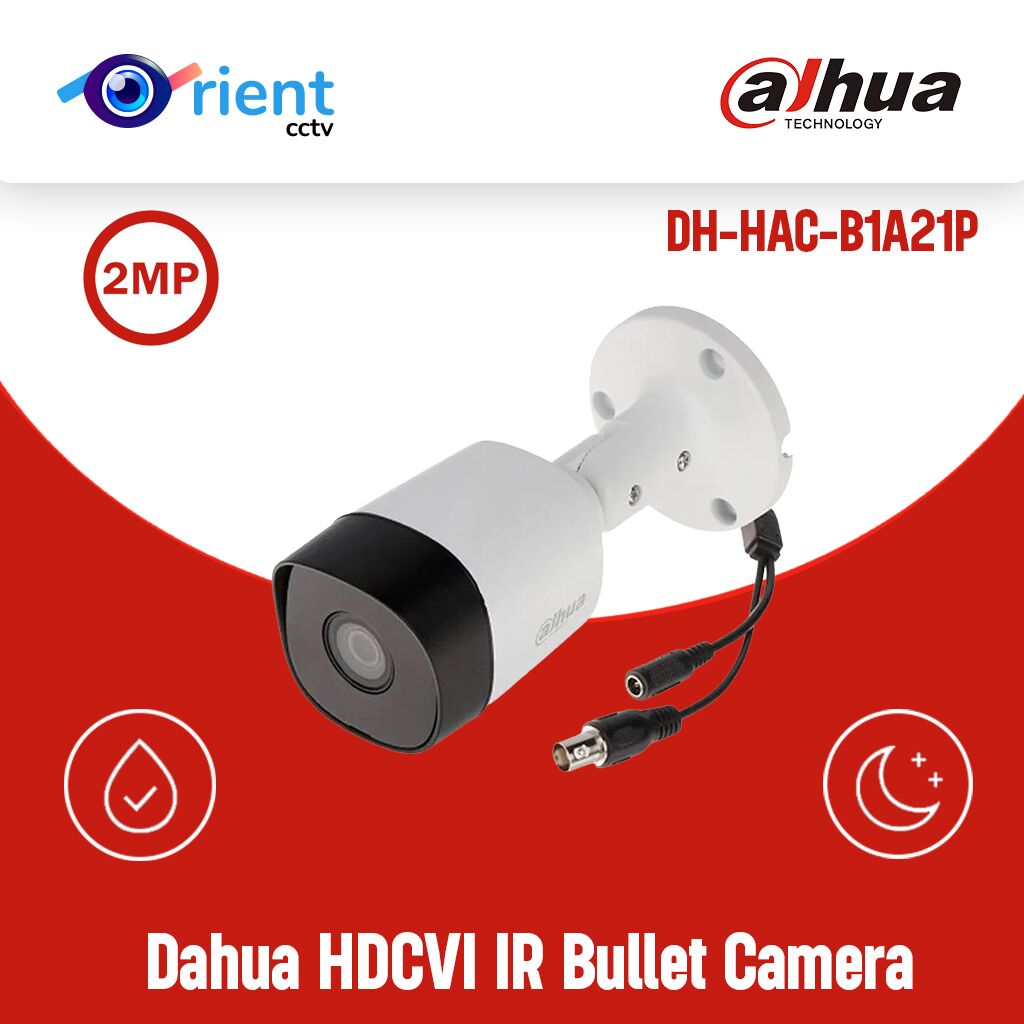

DH-HAC-B1A21P-A 2MP HDCVI IR Bullet Camera
2MP HDCVI IR Bullet Camera
> Max. 30 fps@1080p
> CVI/CVBS/AHD/TVI switchable
> 3.6 mm fixed lens (2.8 mm, 6 mm optional)
> Max. IR length 20 m, Smart IR
> Built-in Mic(-A)
> IP67,12 VDC
Original price was: ₨ 4,000.₨ 3,200Current price is: ₨ 3,200.
Buy Now| Weight | 0.5 kg |
|---|---|
| Dimensions | 16 × 8 × 9 cm |
| Camera | |||||
| Pixel | 2 MP | ||||
| Image Sensor | 2MP CMOS | ||||
| Max. Resolution | 1920 (H) × 1080 (V) | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s | ||||
| Min. Illumination | 0.04 lux/F2.0, 30 IRE, 0 lux IR on | ||||
| S/N Ratio | >65 dB | ||||
| Illumination Distance | 20 m (65.62 ft) | ||||
| Illuminator On/Off Control | Auto/Manual | ||||
| Illuminator Number | 2 (IR light) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° | ||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm; 6 mm | ||||
| Max. Aperture | F2.0 | ||||
| Field of View | 2.8 mm: H: 102°; V: 54°; D: 120° 3.6 mm: H: 83°; V: 44°; D: 99°6 mm: H: 53°; V: 30°; D: 60° | ||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 0.8 m (2.62 ft) 6 mm: 1.9 m (6.23 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 45.5 m (149.29 ft) | 18.2 m (59.71 ft) | 9.1 m (29.86 ft) | 4.6 m (15.09 ft) | |
| 3.6 mm | 53.7 m (176.18 ft) | 21.5 m (70.54 ft) | 10.7 m (35.10 ft) | 5.4 m (17.72 ft) | |
| 6 mm | 82.8 m (271.65 ft) | 33.1 m (108.60 ft) | 16.6 m (54.46 ft) | 8.3 m (27.23 ft) | |
| Video | |||||
| Video Frame Rate | CVI: PAL: 1080p@25 fps; 720p@25 fps NTSC: 1080p@30 fps; 720p@30 fps TVI: PAL: 1080p@25 fps; 720p@25 fps NTSC: 1080p@30 fps; 720p@30 fps AHD: PAL: 1080p@25 fps; 720p@25 fps NTSC: 1080p@30 fps; 720p@30 fps CVBS: PAL: 960H NTSC: 960H | ||||
| Resolution | 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480) | ||||
| Day/Night | Auto (ICR)/Color/B/W | ||||
| BLC | BLC; HLC; DWDR | ||||
| WDR | DWDR | ||||
| White Balance | Auto; Area white balance | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 2D NR | ||||
| Smart Illumination | Yes | ||||
| Mirror | Yes | ||||
| Privacy Masking | Off/On (8 areas, rectangle) | ||||
| Certification | |||||
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpart, ANSI C63.4-2014) | ||||
| Port | |||||
| Video Output Built-in Mic | Video output choices of CVI/TVI/AHD/CVBS by one BNC port Yes | ||||
| Power | |||||
| Power Supply | 12 VDC ± 30% | ||||
| Power Consumption | Max. 2.7 W (12 VDC, IR on) | ||||
| Environment | |||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F) | ||||
| Operating Humidity | <95% (rh), non-condensing | ||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
| Protection | IP67 | ||||
| Structure | |||||
| Casing | Plastic | ||||
| Product Dimensions | 149.3 mm × 69.8 mm × 69.8 mm (5.88" × 2.75" × 2.75") | ||||
| Packaging Dimensions | 164 mm × 79 mm × 90 mm (6.46" × 3.11" × 3.54") | ||||
| Net Weight | 0.14 kg (0.31 lb) | ||||
| Gross Weight | 0.17 kg (0.37 lb) | ||||
| Installation | Wall mount; ceiling mount; horizontal pole mount | ||||
Package Dimensions: 16*8*9 cm
Warranty: 1 Year Brand Warranty
Warranty Conditions: Electric Surge, Physical Damage are not included in warranty
What’s included in the box: Camera, User Manual, screws
