1CH Passive Video Balun Coax BNC Male To RJ45 Transceiver For HD-CVI/TVI/ AHD CCTV Camera Connectors
-
1 Channel Passive Video Balun for CCTV Cameras
-
BNC Male to RJ45 Transceiver Connector
-
Compatible with HD-CVI, TVI, and AHD formats
-
Transmits video signals over Cat5/Cat6 UTP cable
-
No external power required, plug & play design
-
Ideal for extending CCTV camera connections with stable performance
₨ 900
134 in stock
Last chance! Sale ends in
00
Hours
Hours
00
Min
Min
00
Sec
Sec
Description
- Hign-concerned Chemical: None
- Plug Type: None
- Size: 45mm*25mm*21mm with 14cm cable
- Certification: CE,FCC
- Origin: Mainland China
- Item Type: Video Converter
Features:
>Compatible with all HD-CVI, HD-TVI,HD-AHD
>Up to 450m for CVI Cameras
>Up to 250m for CVI Cameras
>Up to 250m for TVI Cameras
>Up to 320m for AHD Cameras
>NTSC,PAL, and SECAM video formats
>No Power Required
>60dB cross talk and noise immunity.
>Compact size and easy installation
>Built-in transient suppression protection
>Innovative combinabie design
Technical Specifications:
>Frequency response: DC to 60Mhz
>Attenuation: 0.5dB type
>CMRR: 60dB
>Surge Protection: 4KV
ESD: 8KV
>Connectors: Male BNC and “Prees-Fit” Terminal blocks
>Impedance: BNC: 75ohmas
Terminal: 100ohms
>Working Temperatrue: -10 to + 70
>Storage Temperature: -30 to +70
>Humidity: 0 to 95%
>Dimension:45mm*25mm*21mm with 14cm cable
>Material: ABS Plastic

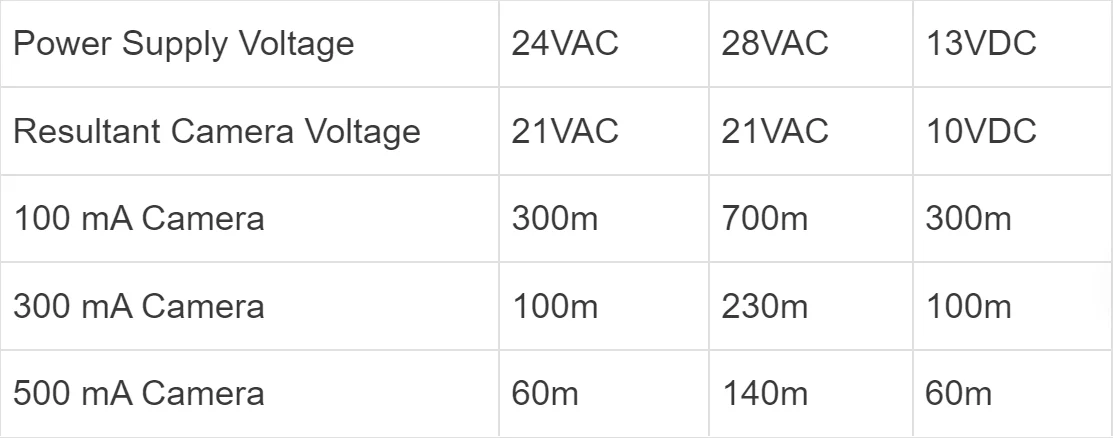

Power-Distance Chart
Using PVD product, cameras can be powered at extended distances, please refer to the chart below for more information.
