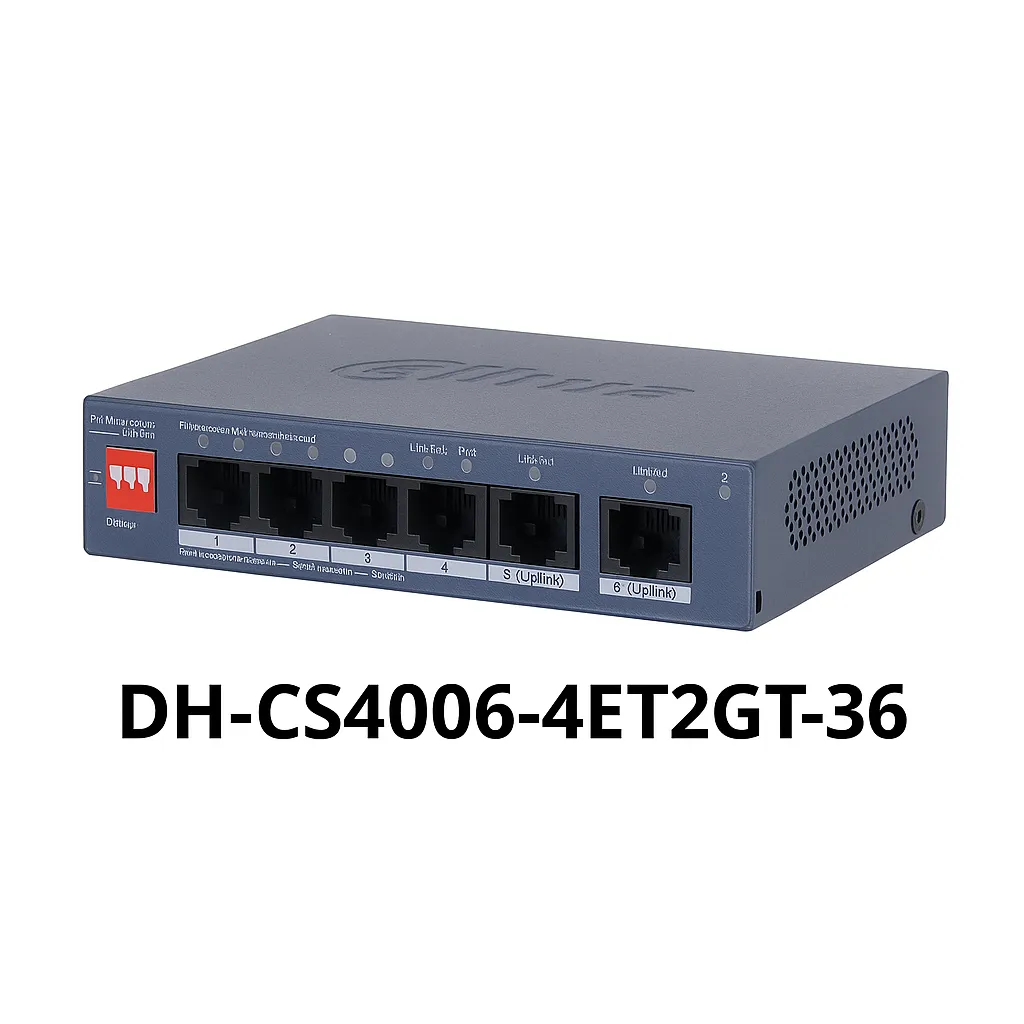

Dahua DH-CS4006-4ET2GT-36 – 6-Port Managed PoE Switch with 4 PoE Ports + 2 Gigabit Uplinks | Compact Metal Housing | Reliable Surveillance Connectivity

✅ 6-Port Managed PoE Switch – 4 PoE ports + 2 Gigabit uplinks
⚡ High-Speed Gigabit Connectivity for smooth data transmission
🔌 Power over Ethernet (PoE) – supports IP cameras, APs, and more
🛡️ Durable Metal Housing with efficient heat dissipation
📦 Plug & Play Installation – easy setup for CCTV & networking
🔒 Stable & Reliable Performance – optimized for surveillance systems

₨ 7,990

Out of stock

Last chance! Sale ends in

00
Days

00
Hours

00
Min

00
Sec

Description

Simplify Connectivity With The Dahua DH-CS4006-4ET2GT-36 PoE Switch

Upgrade your network with the Dahua DH-CS4006-4ET2GT-36 PoE Switch, engineered for seamless connectivity and robust performance. Designed to support multiple surveillance devices, this compact yet powerful switch ensures stable power delivery and high-speed data transfer, making it ideal for small to medium security setups. Its metal housing provides durability, while advanced management features allow easy monitoring and configuration of your network.

Key Features:

6-port managed switch with 4 PoE ports and 2 Gigabit uplinks
Compact metal design for durability and heat resistance
Reliable PoE power to keep cameras and devices running without interruptions
Advanced network management for monitoring, traffic control, and security
Easy installation in both professional and home surveillance setups

Buy the DH-CS4006-4ET2GT-36 PoE Switch at the best available prices and secure your setup today with Orient CCTV, your trusted partner in reliable network solutions.

Basic

Layer

Layer 2

Switching Capacity

4.8 Gbps

Packet Forwarding Rate

3.57 Mpps

Description of Function Slots

Port 1-4: 4 RJ-45 10/100 Mbps (PoE);
Port 5-6: 2 RJ-45 10/100/1000 Mbps (uplink)

Operating Temperature

10 C to +55 C (+14 F to +131 F)

Operating Humidity

10%90% (RH), non-condensing

Storage Temperature

40 C to +70 C (40 F to +158 F)

Storage Humidity

5%95% (RH), non-condensing

Power Supply

External power supply: 53 VDC, 0.8 A

Power Consumption

Idling: 3 W
Full load: 42.4 W

Statics Protection

Air discharge: 8 kV; Contact discharge: 6 kV

Lightning Protection

Common mode: 6 kV; Differential mode: 0 kV

Net Weight

0.2 kg (0.44 lb)

Gross Weight

0.72 kg (1.59 lb)

Product Dimensions

115 mm 84 mm 27 mm (4.53" 3.33" 1.06") (L W H)

Packaging Dimensions

195 mm 114 mm 83 mm (7.68" 4.49" 3.27") (L W H)

Casing Material

Sheet metal

Installation

Desktop mount; wall mount

Certifications

CE

PoE

Yes

PoE Power

Port 1-4 30 W, total 36 W

PoE Protocol

IEEE802.3af; IEEE802.3at

PoE Power Consumption Management

PoE power consumption management; PoE power on/off; turns off PoE if overload is detected

PoE Pin Assignment

1, 2, 4, 5V+, 3, 6, 7, 8V-

Long Distance PoE Transmission

Yes

Hardware

DIP Switch

Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-4 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-4; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)

Reset Button

1

Performance

MTBF

232.62 years

Packet Buffer Size

4 Mbit

Jumbo Frame

9216 Byte

MAC Table Size

2K

Communication Standard

IEEE 802.3;
IEEE 802.3u;
IEEE 802.3x;
IEEE 802.3ab;
IEEE 802.3az

VLAN Number

32

Feature

VLAN Function

IEEE 802.1Q VLAN

Port Feature

IEEE 802.3x Flow Control;
Unknown Unicast Suppression; Multicast Storm Control; Broadcast Storm Control; MAC+Port Binding Loop; Prevention

Mirror

N:1 Mirroring;
Local Port Mirroring

Reliability

LLDP

DHCP Function

DHCP Client

Security

Port Isolation

Equipment Management

Web Management; Cloud Management; Logs; Fault Alarm

General

Packing List

Quick Start Guide 1; Legal and Regulatory Information 1; Power adapter 1; Power cord 1
