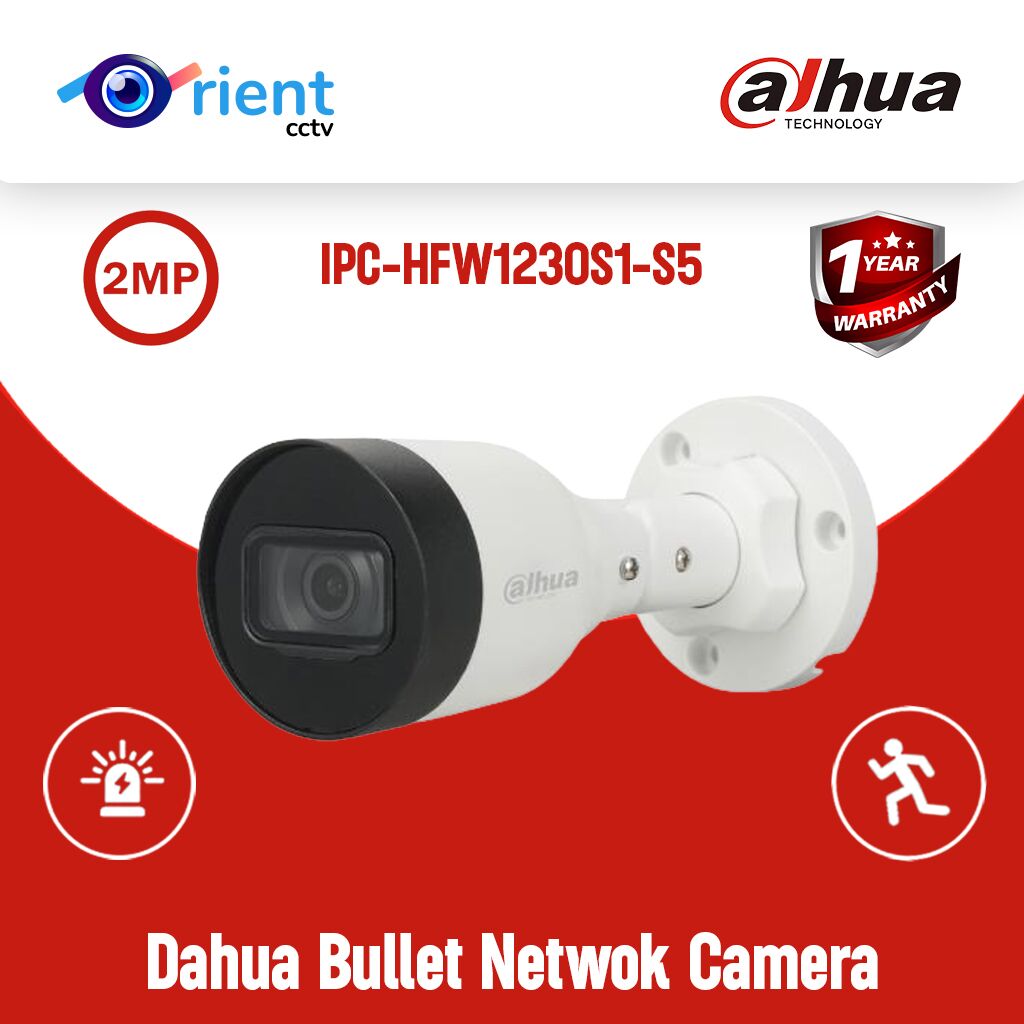

Dahua IPC-HFW1230S1-S5 2MP Entry IR Fixed-Focal Bullet Netwok Camera

> 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
> Outputs max. 2MP (1920 × 1080) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in efficient IR illuminator, and the max. illumination distance is 30 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
> 12V DC/PoE power supply
> IP67 protection

Original price was: ₨ 8,500.Current price is: ₨ 7,299.

Buy Now
Availability: In Stock

Get Your DAHUA IPC HFW Bullet Network Camera Surveillance Solution from Orient CCTV!

The DAHUA IPC HFW Bullet Network Camera is an exceptional surveillance tool designed for both residential and commercial security needs. This camera delivers clear and detailed footage, making it perfect for monitoring homes, offices, factories, and restaurants with its 2MP resolution and advanced imaging technology.

Key Features

Superior Image Quality and Compression

Equipped with a 1/2.8” CMOS image sensor, the camera ensures crisp and clear images even in low-light conditions. The 2MP output with 1920 × 1080 resolution at 25/30 fps guarantees high-definition monitoring. The H.265 codec allows for high compression, reducing bandwidth and storage requirements, making it suitable for various surveillance environments.

Advanced Night Vision and Detection

The built-in infrared (IR) illuminator enhances the camera’s night vision capabilities, providing visibility up to 30 meters. This feature is perfect for monitoring large areas like parking lots and outdoor spaces. The camera also includes motion detection, video tampering alerts, and abnormality detection for added security.

Versatile Applications and Durability

The camera operates in temperatures ranging from -40°C to +60°C and features IP67-rated protection. This makes it ideal for both indoor and outdoor use in diverse settings such as warehouses and retail stores.

Enhance Your Security Today!

Explore the range of DAHUA IPC HFW Bullet Network Cameras available at Orient CCTV. Enhance your security setup with this reliable and high-performing camera!



Show More
Weight 0.5 kg
Dimensions 21 × 11 × 10 cm
Camera
Image Sensor 1/2.8” CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 16 MB
RAM 64 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.01 Lux @F2.0
S/N Ratio >56 dB
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 1 (IR LED)
Pan/Tilt/Rotation Range Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture 2.8 mm: F2.0 3.6 mm: F2.0
Field of View 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120° 3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.8 m (2.6 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 38.6 m (126.6 ft) 15.4 m (50.5 ft) 7.7 m ( 25.3 ft) 3.9 m (12.8 ft)
3.6 mm 49.7 m (163.1 ft) 19.9 m (65.3 ft) 9.9 m (32.5 ft) 5.0 m (16.4 ft)
Video
Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/Smart H.264+
Video Frame Rate Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6400 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto/natural/streetlamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Alarm
Alarm Event Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cybersecurity Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Genetec
User/Host 6 (Total bandwidth: 36 M)
Storage FTP
Browser IE Chrome Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client IOS; Android
Certification
Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption Basic power consumption: 1.4W (12V DC); 2.2W (PoE) Max. power consumption (ICR + H.265+IR intensity): 3.3W (12V DC); 4.3W (PoE)
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than ≤ 95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Protection IP67
Structure
Casing Metal + plastic
Product Dimensions 162.6 mm × Φ70 mm (6.4″ × Φ2.8″)
Net Weight 0.22 kg (0.4 lb)
Gross Weight 0.34 kg (0.7 lb)


Package Dimensions: 21*11*10 cm

Warranty: 1 Year Brand Warranty

Warranty Conditions: Electric Surge, Physical Damage are not included in warranty

What’s Included in the box: Camera, User manual, Screws
