| Weight | 1.5 kg |
|---|---|
| Dimensions | 21 × 14 × 6 cm |

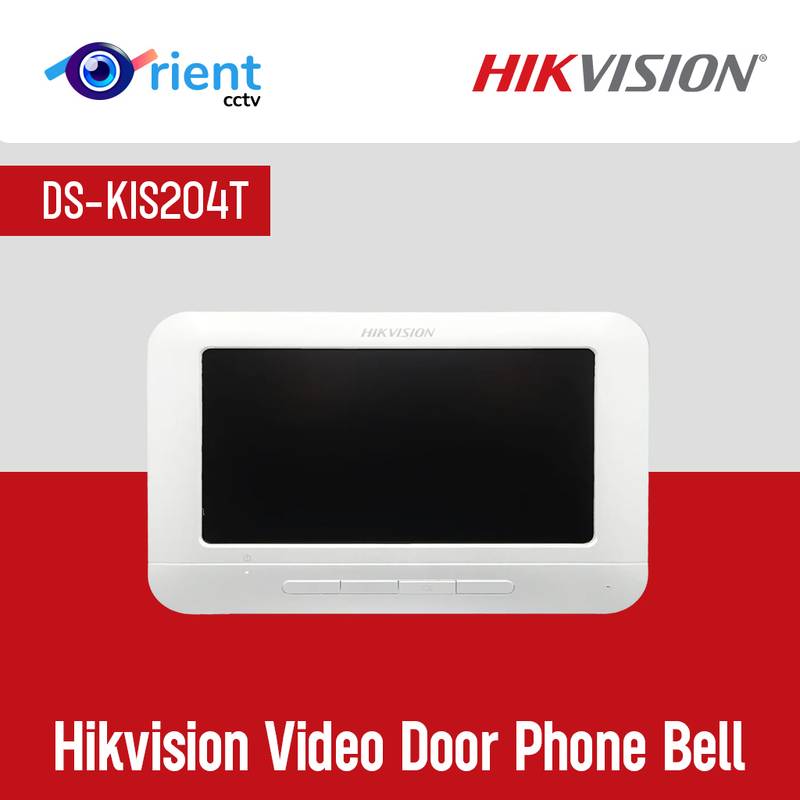

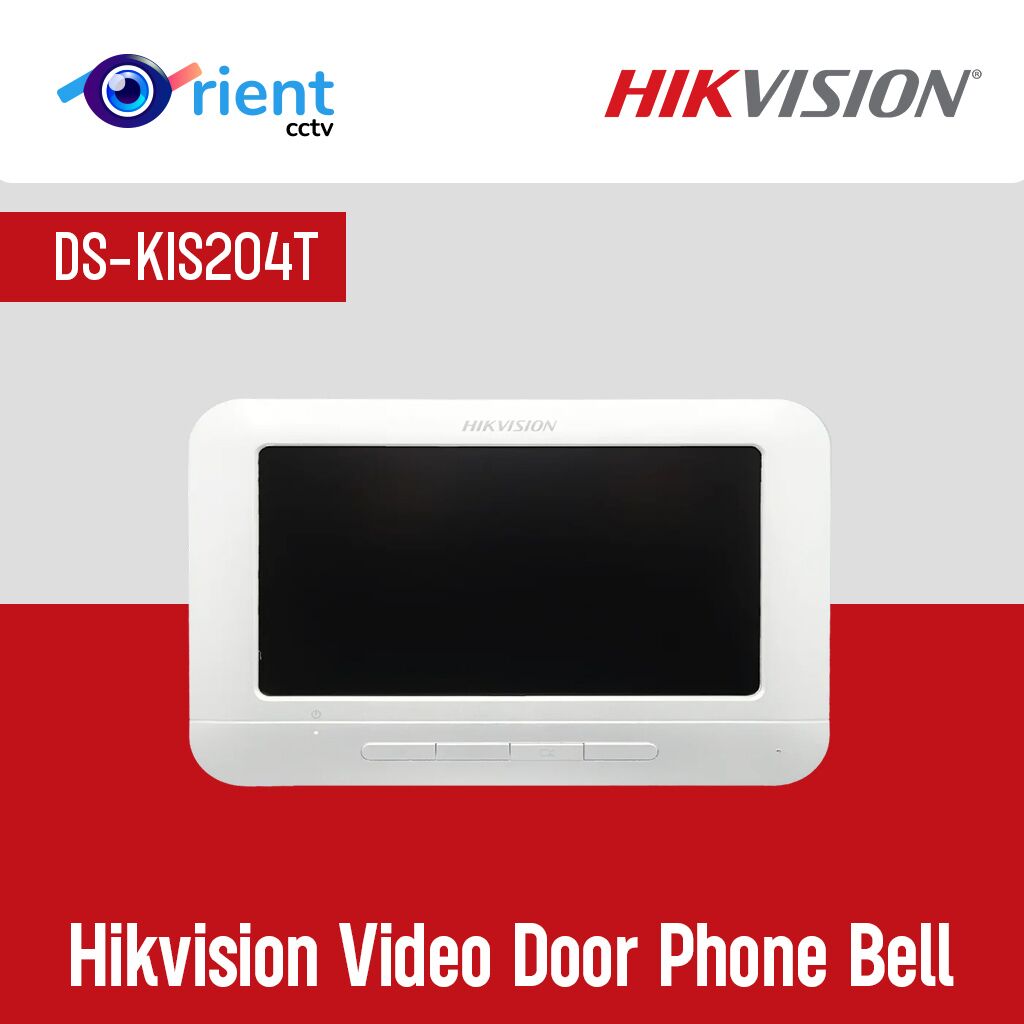

HIKVISION Video Door Phone Bell DS-KIS204T Wired With 200 Picture Capture Storage
- Analog Kit with picture storage function for villa or house, only one call button
- Kit including DS-KB2411-IM and DS-KH2220-S, 5-meter 4-wire cable, and other accessories
- power supply adaptor included
- 200 Built in Picture Storage Capacity
₨ 16,500
Buy Now

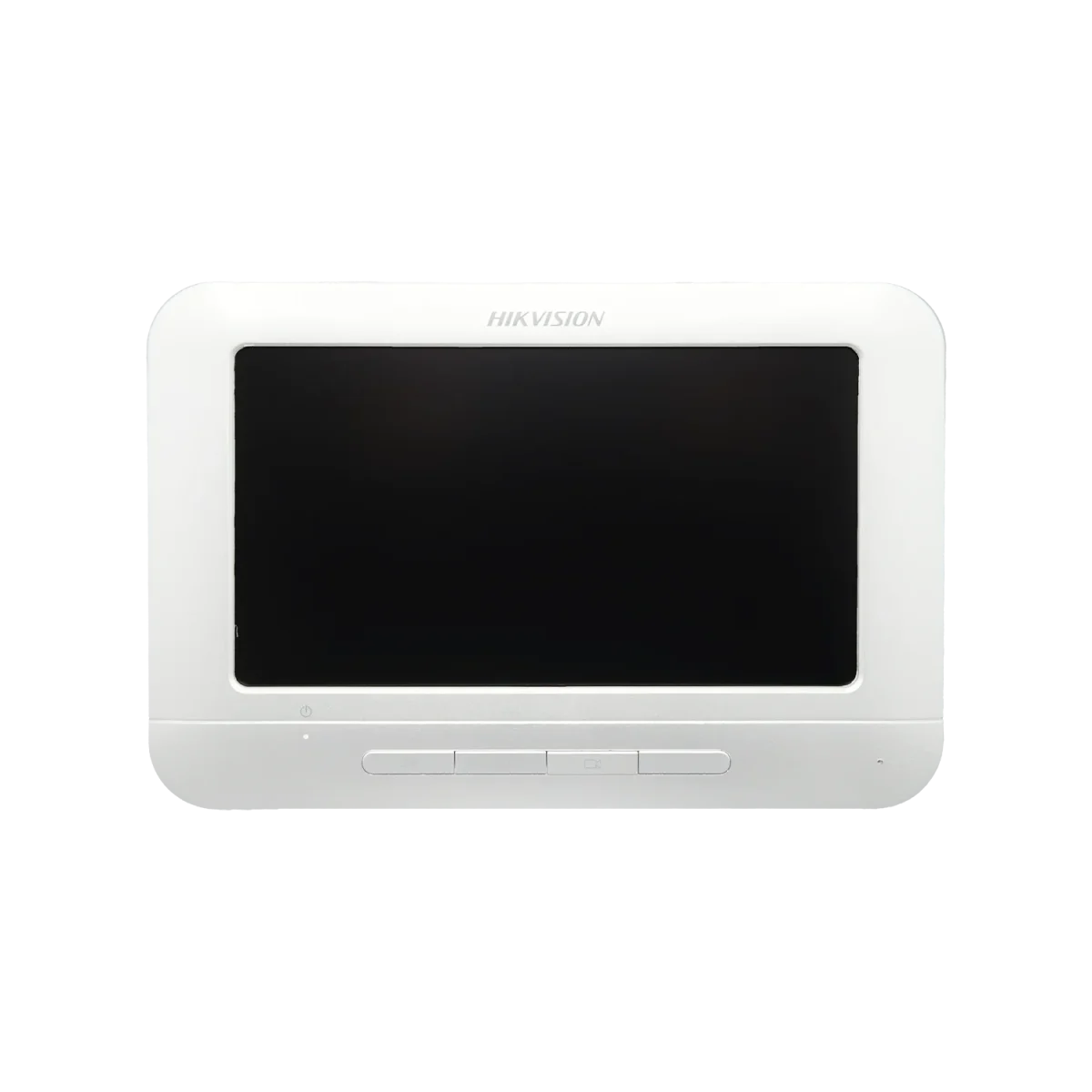

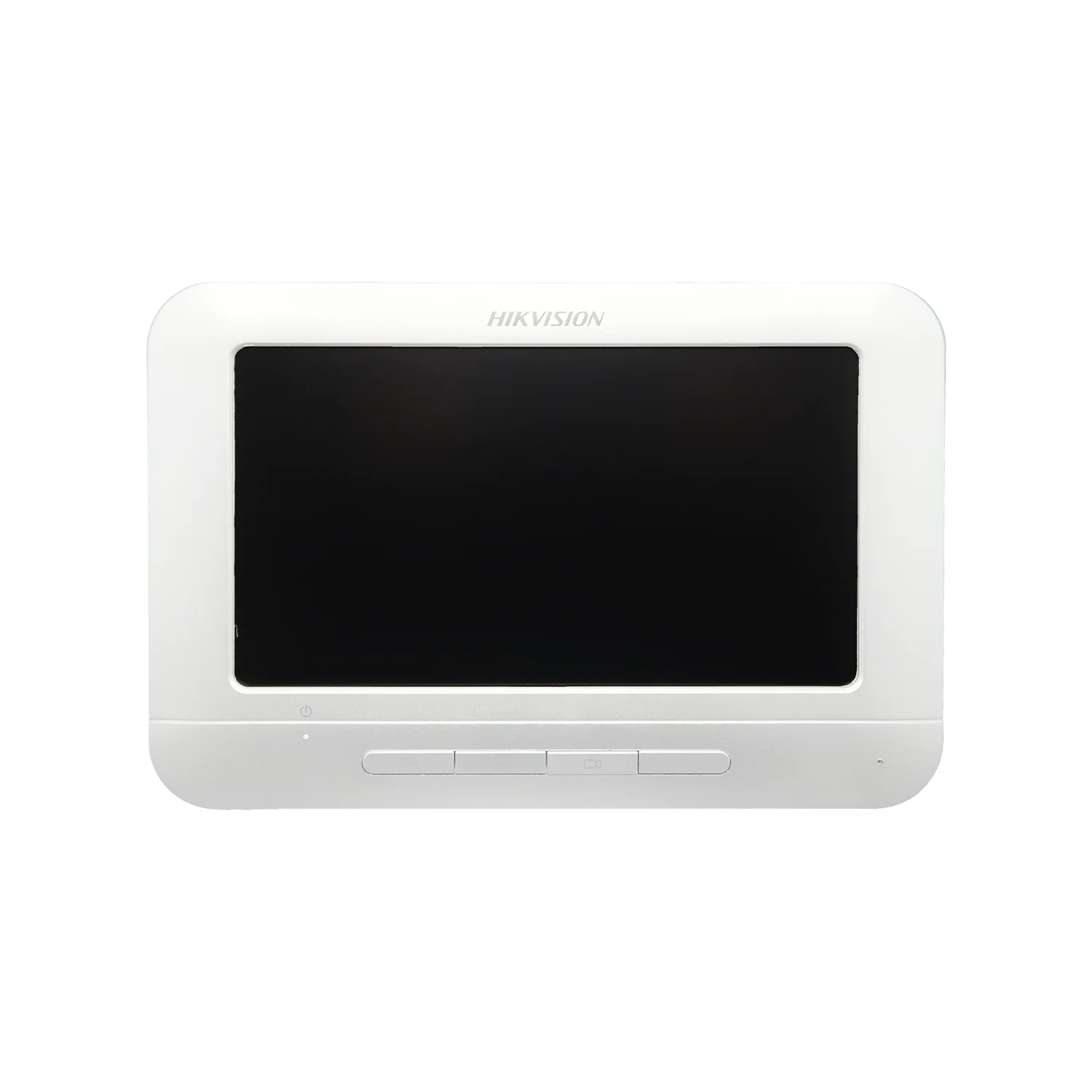

Specification of indoor station DS-KH2220-S
Specification of door station DS-KB2411-IM
| Display Parameters | ||
| Display Screen: | 7-Inch Colorful TFT LCD | |
| Display Resolution: | 800 × 480 | |
| Operation Method: | Physical Button | |
| Audio Parameters | ||
| Audio Output: | Built-in Loudspeaker | |
| Audio Input: | Built-in Omnidirectional Microphone | |
| Audio Quality: | Noise Suppression and Echo Cancellation | |
| Device Interfaces | ||
| Four-wire Interface: | 1 Four-Wire Interface (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding) | |
| General | ||
| Power Supply: | 12 VDC | |
| Power Consumption: | ≤5 W | |
| Working Temperature: | -10° C to + 55° C (14° F to 131° F) | |
| Working Humidity: | 10% to 90% | |
| Dimensions(L × W × H): | 195.8 mm × 132.8 mm × 18.39 mm (7.7″ × 5.2″ ×0.7″) | |
| Video Parameters | ||
| Camera: | 1/4″ CMOS | |
| Resolution: | 720 × 576 | |
| Video frame rate: | PAL: 25 fps | |
| Audio Parameters | ||
| Audio Output: | Built-in Loudspeaker | |
| Audio Input: | Built-in Omnidirectional Microphone | |
| Audio Quality: | Noise Suppression and Echo Cancellation | |
| Light Supplement | ||
| Light Supplement Mode: | Photosensitive IR Supplement, IR Range: 2 Meters | |
| Device Interfaces | ||
| I/O Output: | 1 Relay Output | |
| Four-wire Interface: | 1 Four-Wire Interface (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding) | |
| General | ||
| Material: | Aluminum Alloy | |
| Power Consumption: | Max. 3W | |
| Working Temperature: | -30° C to +60° C (-22° F to 140° F) | |
| Working Humidity: | 10% to 90% | |
| Dimensions(L × W × H): | 128 mm × 42 mm × 24.8 mm (5.0″ × 1.7″ × 0.9″) | |
Dimensions: 21*14*6 cm
Weight: 1Kg
Warranty: 1 Year
Warranty Condition: Electric Surge, Physical damage are not included in warranty
What’s in the box: 1x Indoor station 1x Outdoor Station 1x Wire 1x Power Adopter 1x Manual
