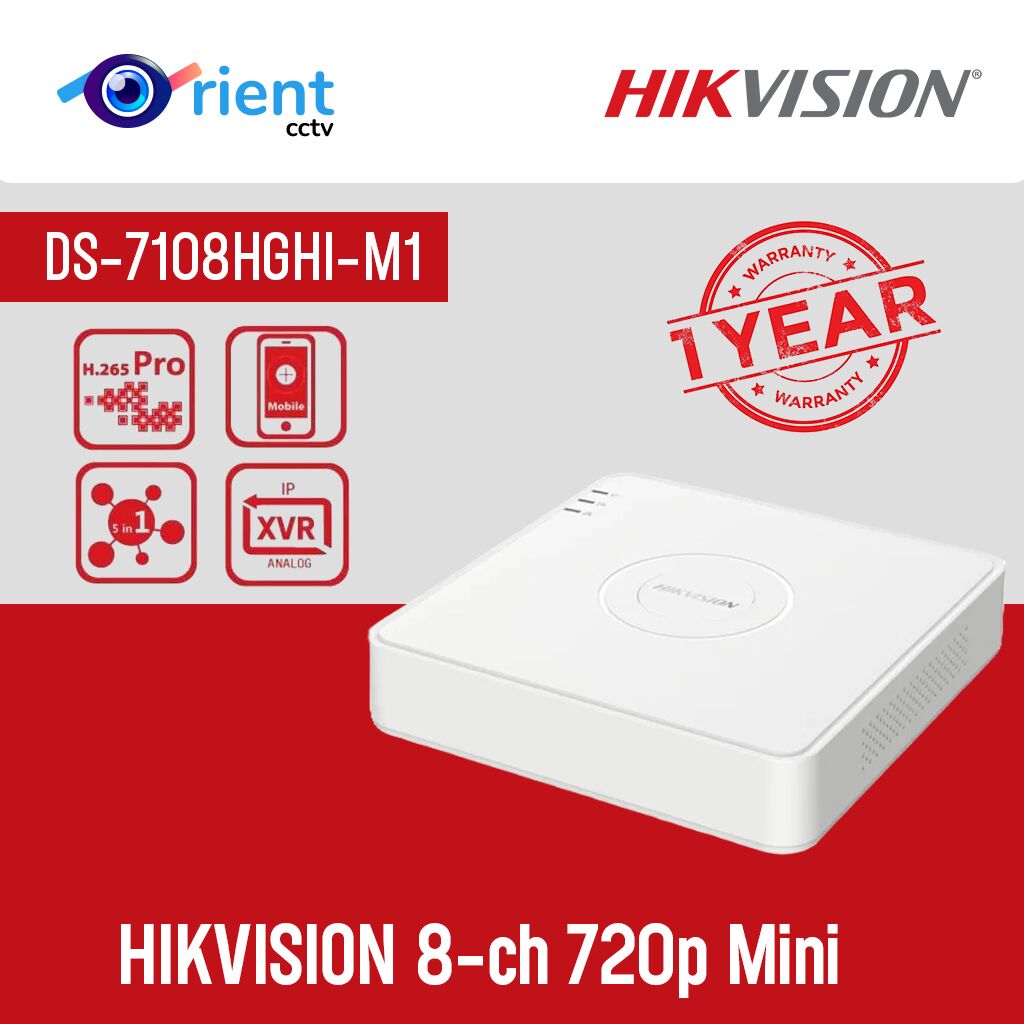

Features
-
8 channels
-
H.265+ / H.264 video compression
-
Encoding ability up to 1080p lite @ 25/30 fps
-
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
-
Up to 8 network cameras can be connected
Technical Specifications
Recording
-
Video Compression : H.264+/H.264
-
Encoding Resolution
When 1080p Lite mode not enabled : 720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled : 1080p lite/720p/WD1/4CIF/VGA/CIF
-
Frame Rate
Main stream :
When 1080p Lite mode not enabled :
For 720p stream access : 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled :
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream :
4CIF/2CIF@6fps;
CIF/QVGA/QCIF@25fps (P)/30fps (N)
-
Video Bit Rate : 32 Kbps to 4 Mbps
-
Dual Stream Support
-
Stream Type : Video, Video & Audio
-
Audio Compression : G.711u
-
Audio Bit Rate : 64 Kbps
Video And Audio
-
IP Video Input : Up to 8-ch Up to 1080p resolution Support H.264+/H.264 IP cameras
-
Analog Video : Input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxial connection
-
Turbo HD Input : 1080p25, 1080p30, 720p25, 720p30
-
AHD Input : 1080p25, 1080p30, 720p25, 720p30
-
HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
-
CVBS Input : Support
-
Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
-
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
-
Two-Way Audio : Reuse the first audio input
-
Synchronous Playback : 8-ch
-
VGA/HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network
-
Remote Connections : 128
-
Network Protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
-
Network Interface : 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
-
SATA : SATA
-
Capacity : Up to 6 TB capacity (not Included in package)
-
Alarm : In/OutN/A
-
USB Interface : Rear panel: 2 × USB 2.0
General
-
Power Supply : 12 VDC
-
Consumption : (Without HDD)≤ 12 W
-
Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
-
Working Humidity : 10% to 90%
-
Dimensions : (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
-
Weights : (Without HDD)≤ 0.8 kg (1.8 lb)
