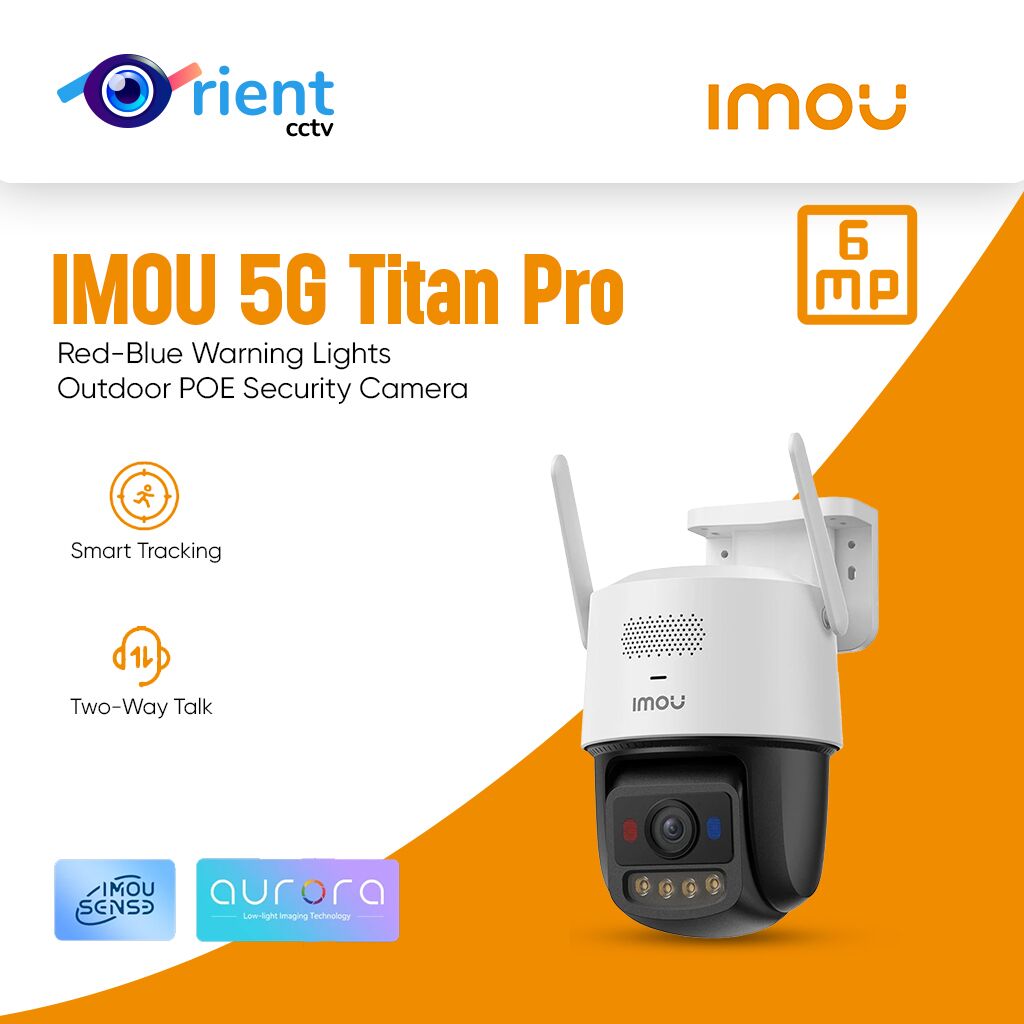

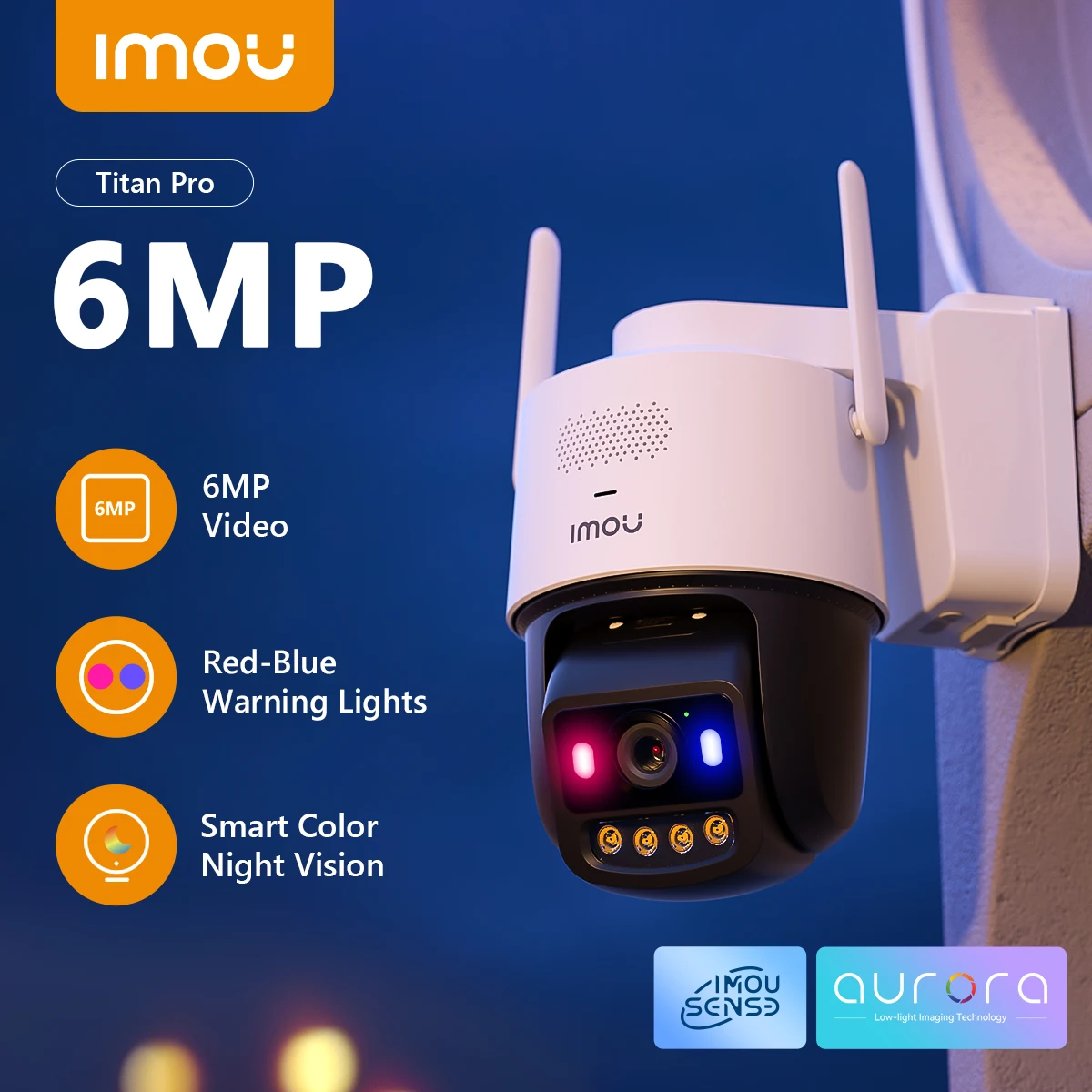

IMOU 5G WIFI IP Camera Titan Pro 6MP Red-Blue Warning Lights Outdoor POE Security Camera Full-Color Night Vision Human Detection

Description

• Zoom type: Digital zoom
• Zoom: 8x
• Lens Quantity: Single Lens
• AI Functions: Smart Tracking
• Color Night Vision: Yes
• IP Rating: IP66
• App name: Imou Life
• Power Mode: Mains Electricity
• Scene: Outdoor
• Movement Range(Pan): 0°-360°
• Megapixels: 6mp
• Power Supply: Normal
• Internal Storage: None
• Installation: Normal
• Color: WHITE
• is_customized: No
• Audio Output: Two Way Audio
• Viewing Angle : 360°
• Video Compression Format: H.264,H.265
• IR Distance(m): 30m(98ft) Distance
• Power Supply(V): DC 12V1A Power Supply
• Power Consumption(W): <12W
• Supported Mobile Systems: Android,iOS
• Sensor Brand: Omnivision
• Sensor: CMOS
• Model Number: Titan Pro 6MP
• Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
• Lens (mm): 3.6mm
• Connectivity: Wifi(5g)
• High Definition: 6.0 Megapixels
• Style: Dome Camera
• Brand Name: IMOU
• Origin: Mainland China
• Certification: CE,FCC
• Shell Material: Plastic
• Smart home platform: Other,alexa
• Power Source: With Poe,Normal
• 89°(H), 47°(V),107°(D): 0~340°Pan & 0~90°Tilt
• 6MP (3200*1800 ): 3.6mm Fixed Lens F1.0
• Built-in Mic & Speaker: 125dB Siren
• 2 Red-Blue Warning Lights: Built in Siren
• Intrusion Detection: Human/Vehicle
• Video Compression: H.265 (Compatible with H.264)
• 20 fps Frame Rate: 8x Digital Zoom
• Two-way Audio: Built-in Mic and Speaker
• Micro SD Card Slot: Up to 512GB
• Reset Button: Built-in Mic and Speaker
• Motion Detection: Human Detection
• Power Consumption: <12W
• Working Environment: -30°C~+50°C Less Than 95%RH
• Material: Plastic
• Weight: 723.6g
• Power Supply: DC 12V1A Power Supply/PoE

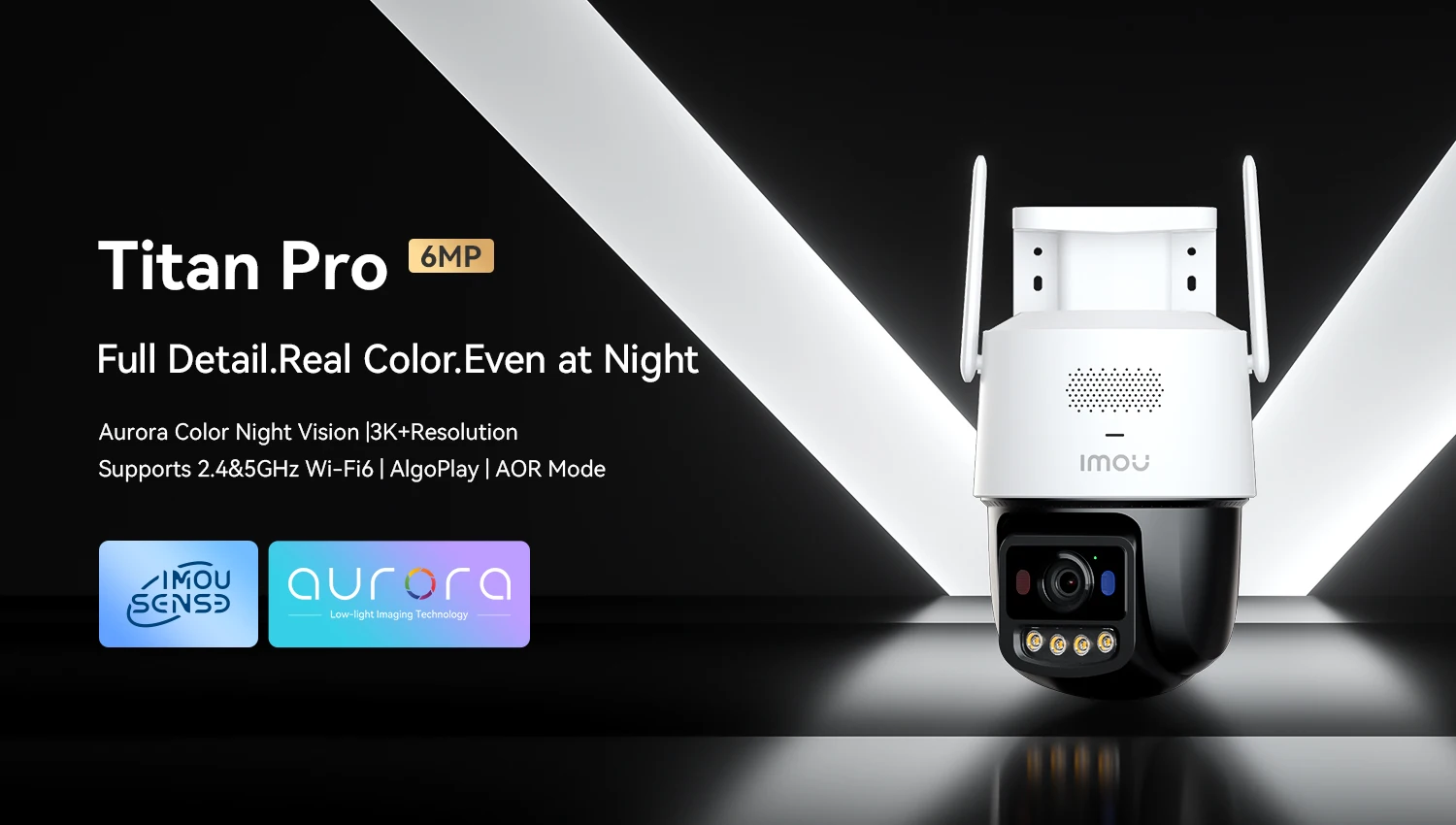

Titan Pro 6MP

Full Detail.Real Color.Even at Night

Aurora Color Night Vision | 3K+Resolution

Supports 2.4&5GHz Wi-Fi6 | AlgoPlay | AOR Mode

Human Detection | Red-Blue Warning Lights | Human Detection

Two-way Talk | Smart Color Night Vision | Smart Tracking | Alarm Notification

Active Deterrence | Weatherproof | Diversified Storage

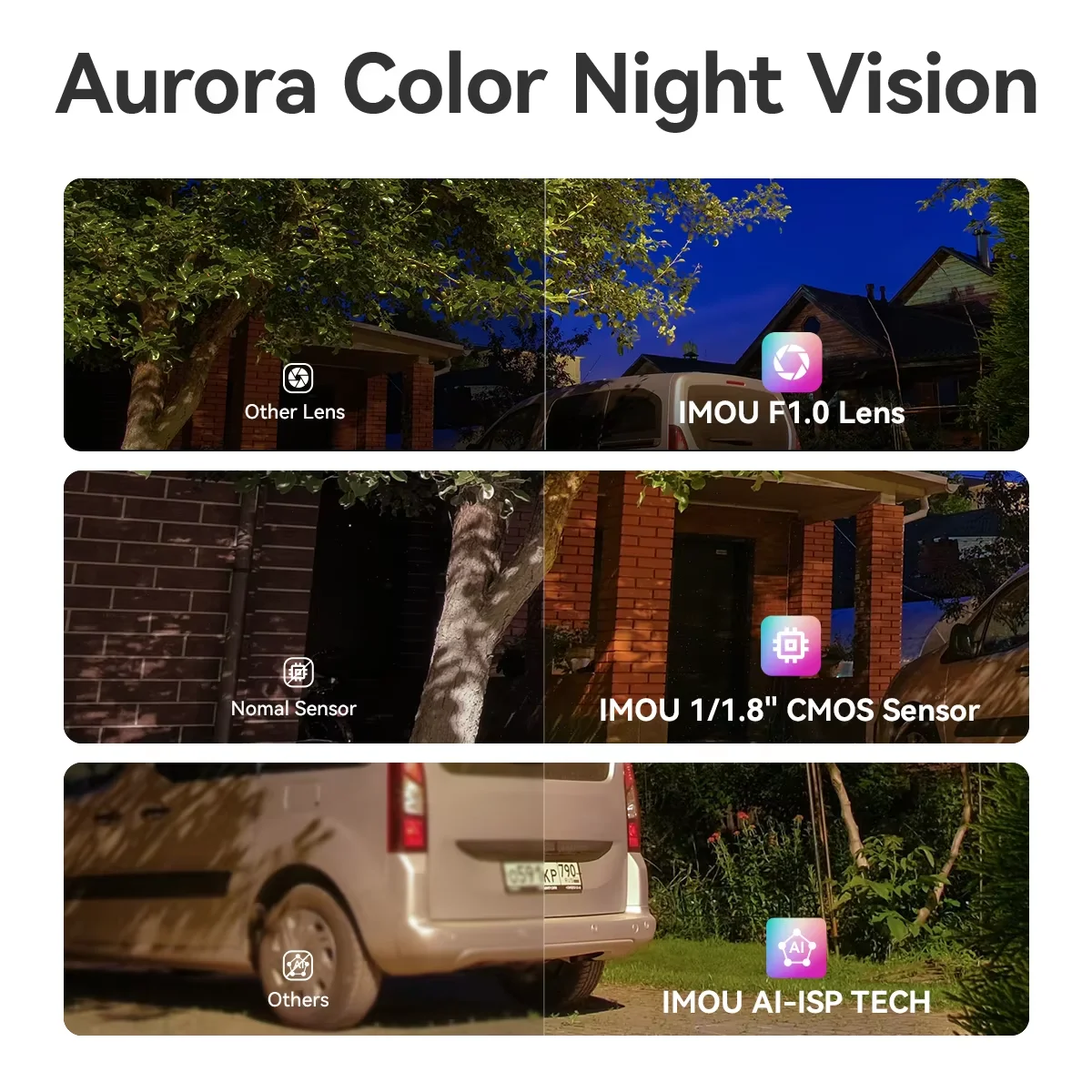

Aurora Lens: Born to Catch the Light

The professional F1.0 Aurora lens allows up to 2.56x more light in take to enter than F1.6
lens delivering brighter and clearer images even- in low-light environments.

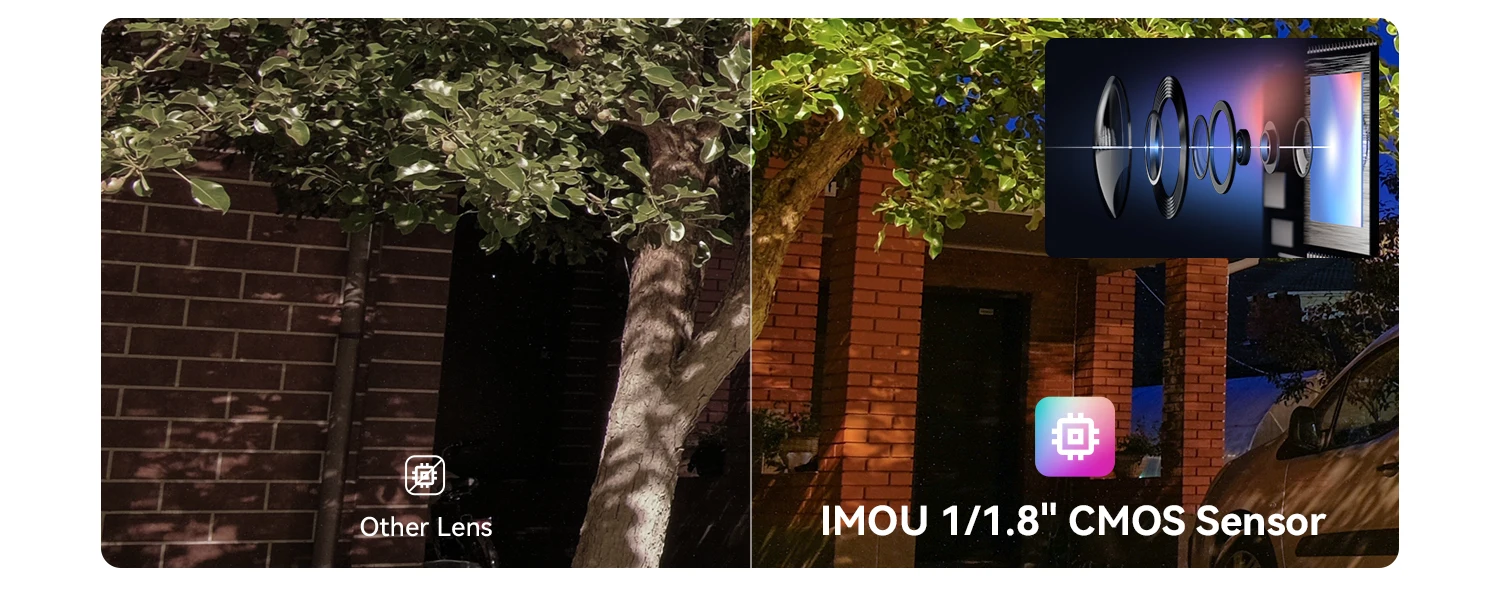

Large Sensor: Capture True Colors

Titan Pro’s large target image sensor absorbs more light and captures more nuance
-fromsubtle shadows tovivid colors.



Enhanced by Imou Tech:

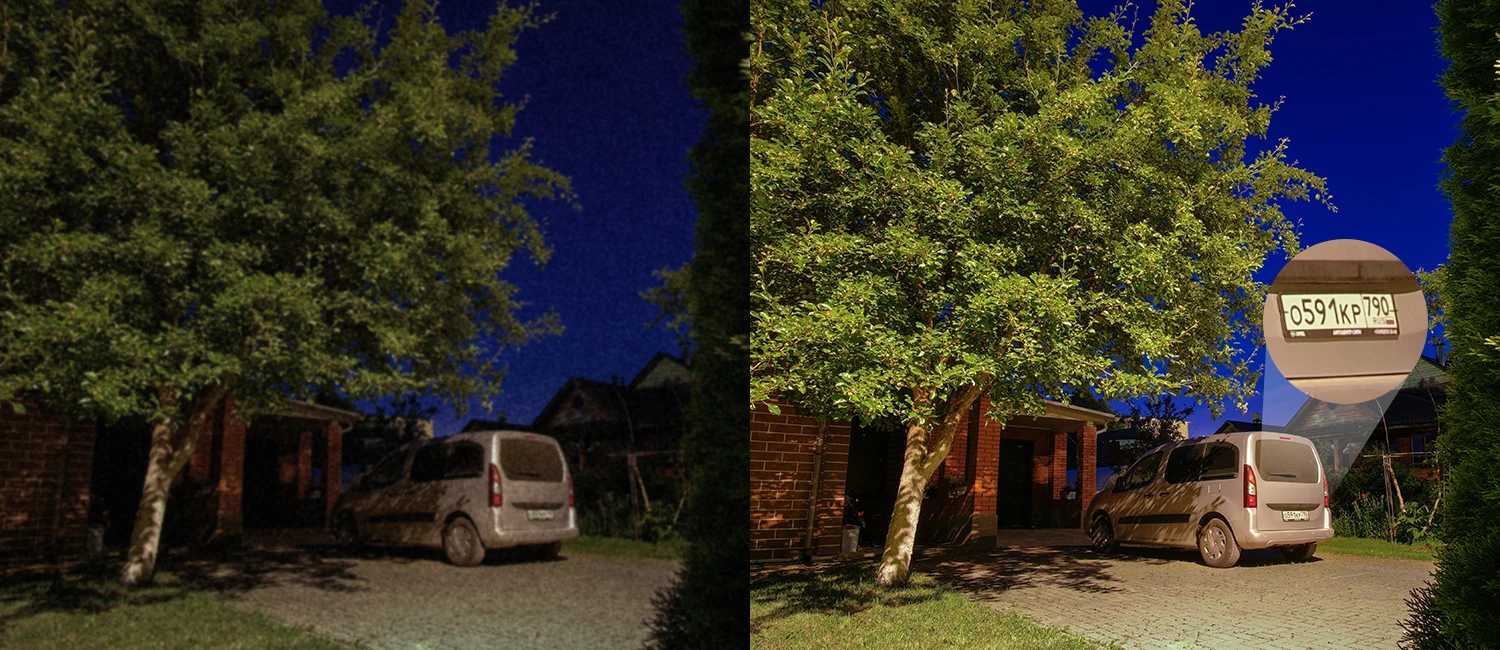

See the Night in Full Detail.

Powered by Imou Al-ISP (including 6 intelligent Al modules),Titan Pro brightens dark
scenes and reveals details just like day time.



① Al-ISP:Al empowerstraditional ISP to enhance nighttime saturation and restoration.

② Al-HDR: HDR large model upgrade, with impeccable realistic wide dynamic effects.

③ Al-NR: Optimize the light and dark details in the image object, making the image more natural.

④ Al-SR: Enhanced image resolution to improve image delicacy.

⑤ Al-3A:Enhance the dynamic effectof images and restorereal scenes.

⑥ Al-Detection:Accurately classify environmental models and enhanceimage details.

With Titan Pro, see the scene in full color,

fine detail, and perfect clarity— just like daylight.

3K+ resolution delivers crisp contours
and true textures

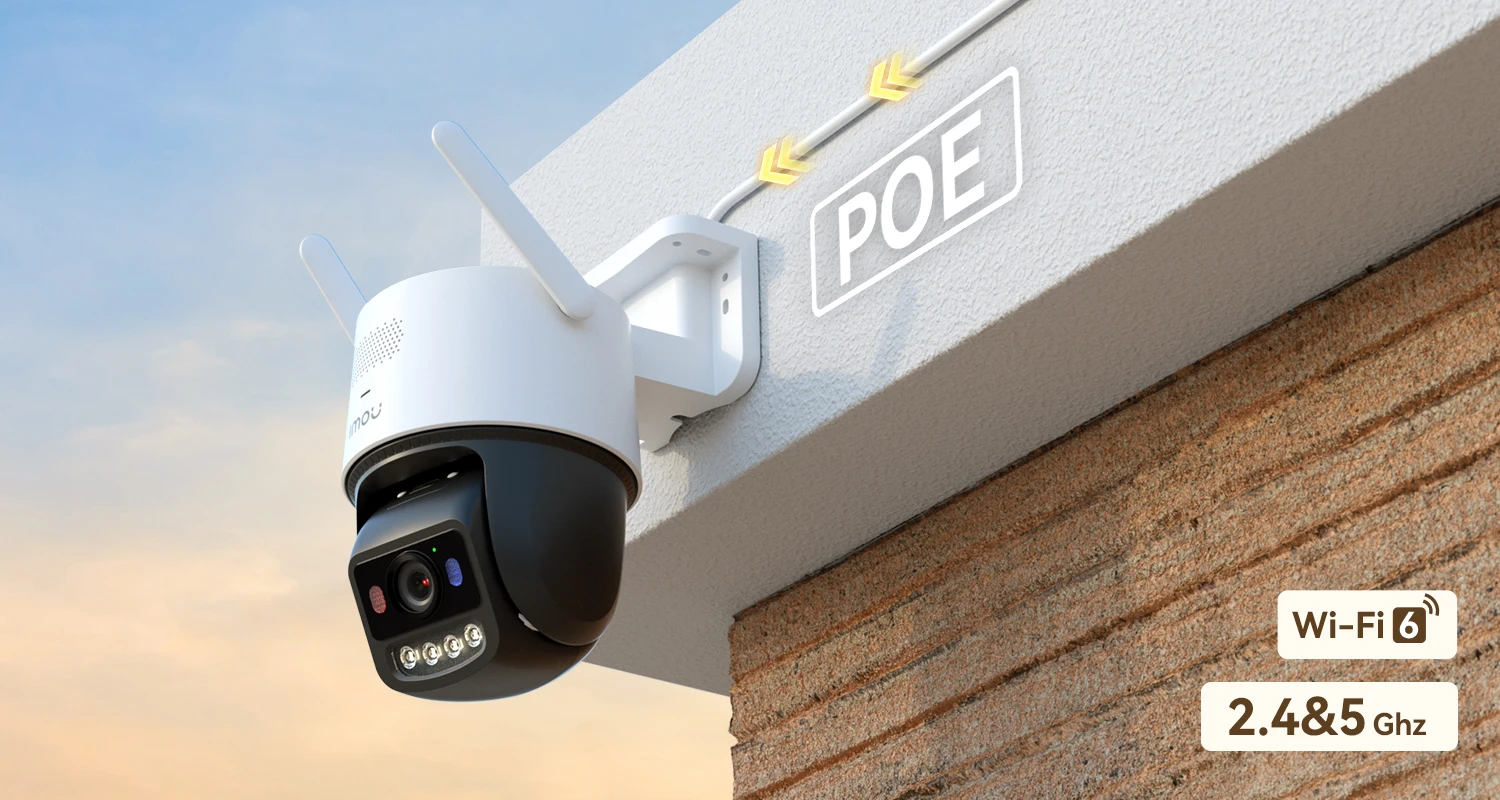

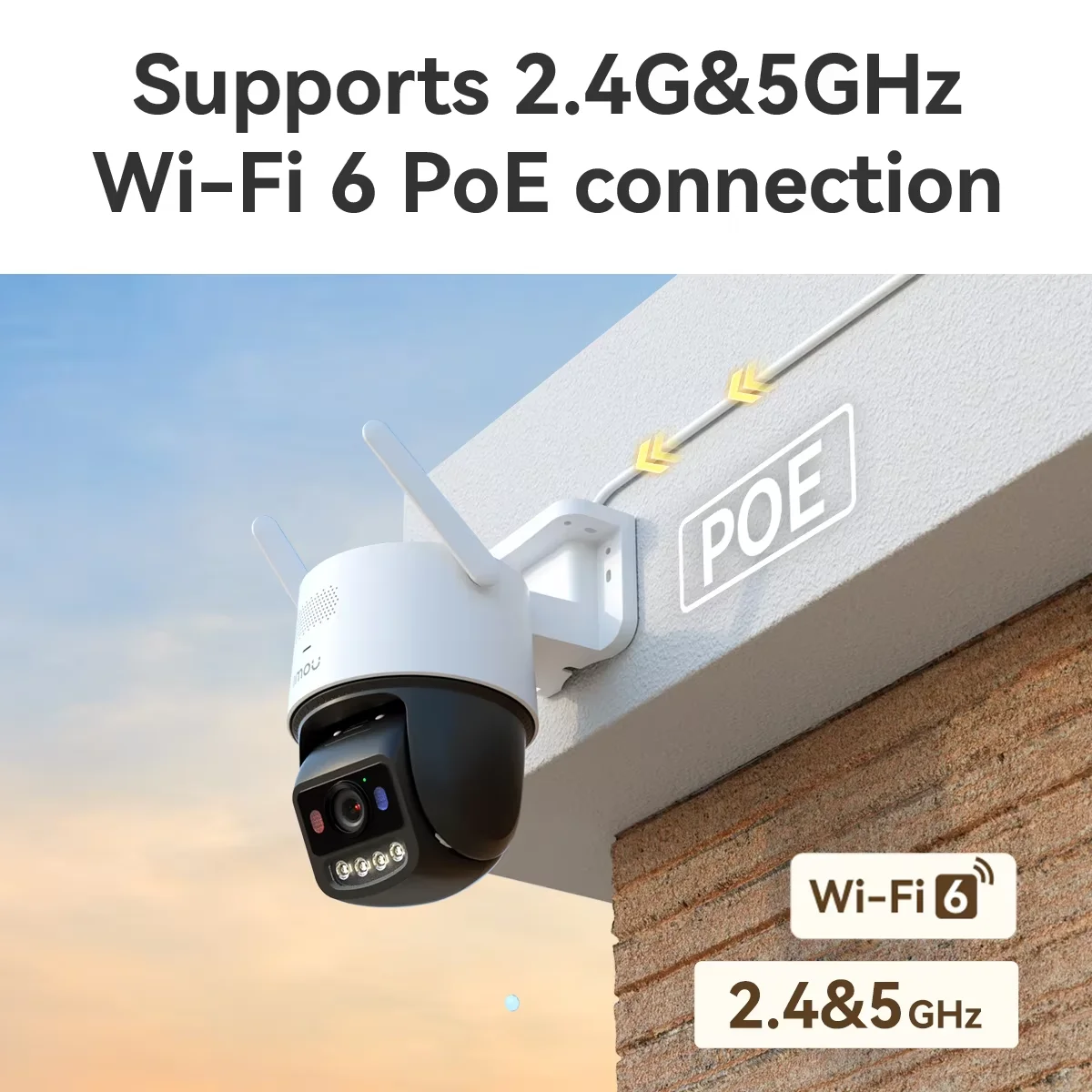

Faster. Smoother. Always Connected.



Supports both 2.4GH&5GHz dual-band Wi-Fi 6 for faser, interrence-fee transmission.
POE option ensures stable power and data in one cable.

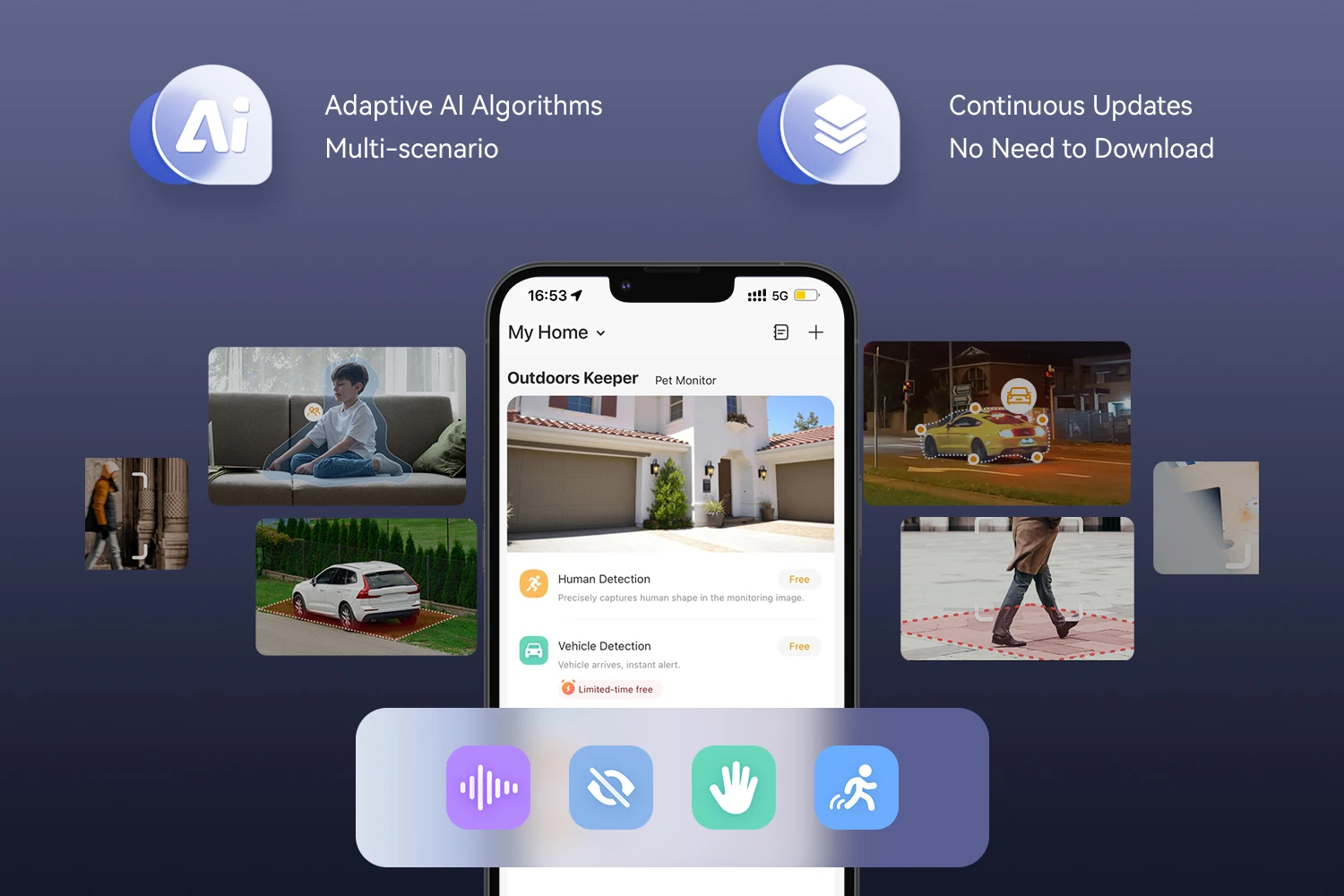

With Algo Play,
Customizable Intelligence at Your Fingertips.

● Human Detection ● Vehicle Detection ● Intrusion Detection  (Human/Vehicle)

● Crossing Line Detection (Human/Vehicle) ● Loitering Detection ● Occlusion Detection ● Enable Absence

● More…

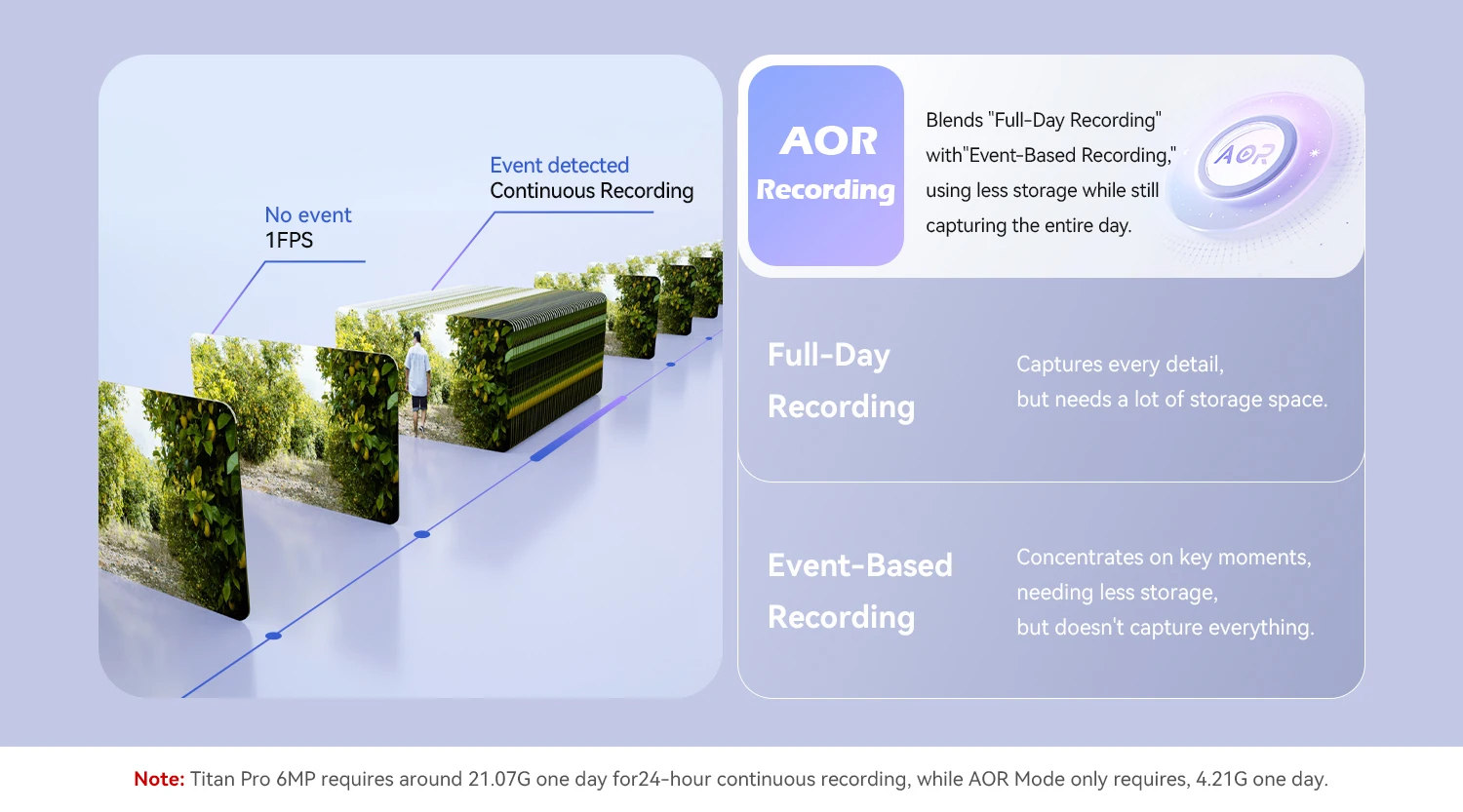

AoR Mode: Always Recording,
Smarter Storage.



Continuously records 24/7 with full-frame video during events and low-frame capture
when idle, saving up to 80% storage without missing a moment.



Note：Titan Pro 6MP requires around 21.07G one day for 24-hour continuous recording,while AOR Mode only requires,4.21G one day.

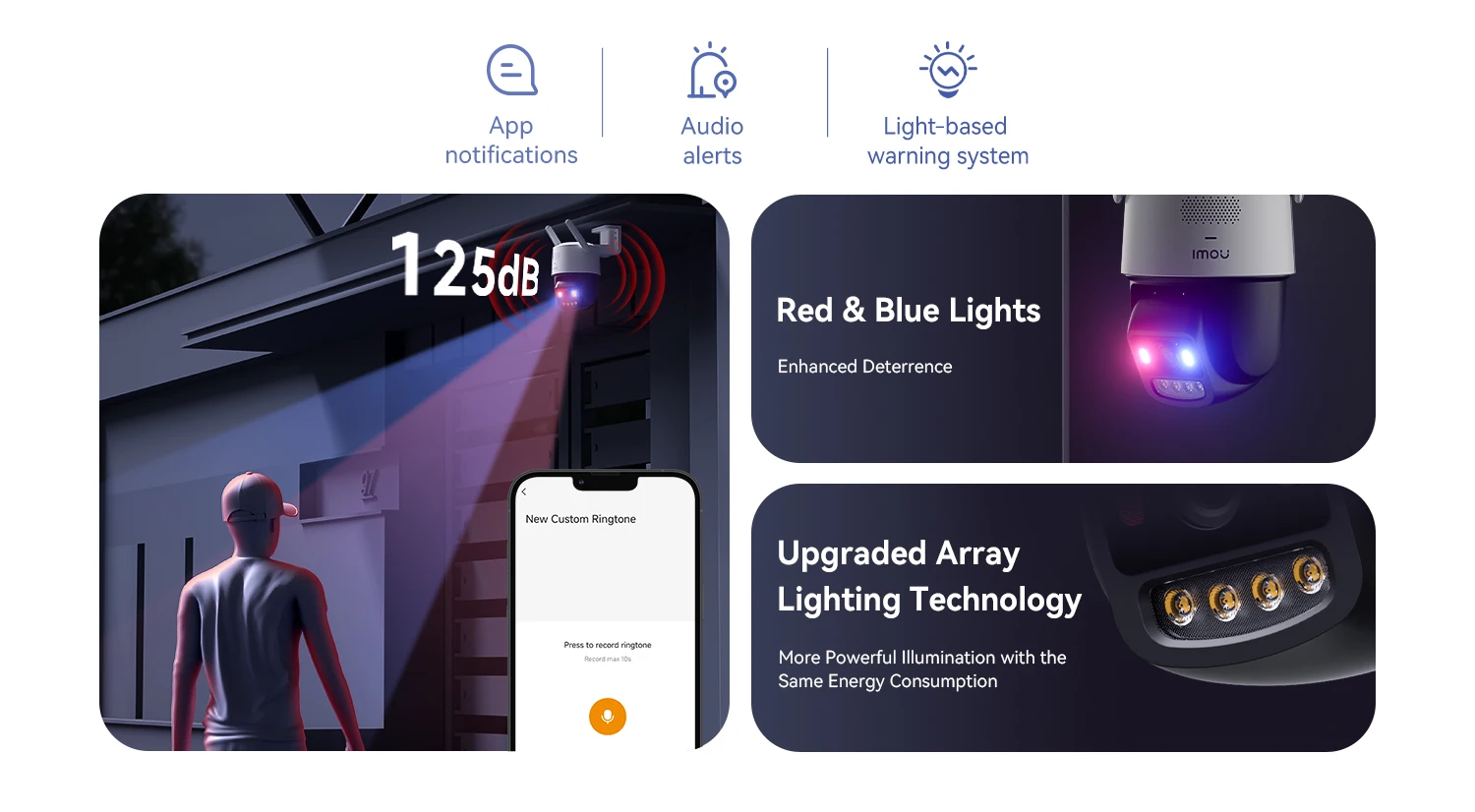

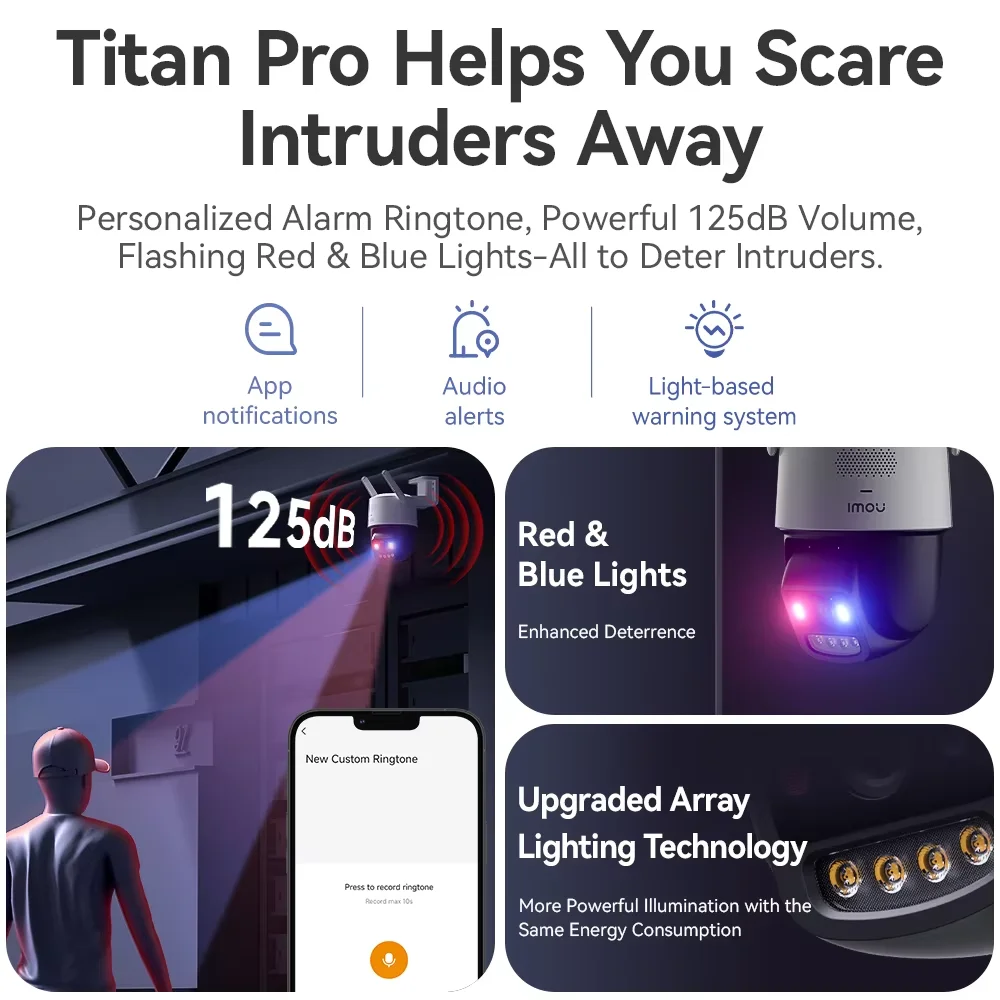

Titan Pro Helps You Scare Intruders Away



Personalized Alarm Ringtone, Powerful 125dB Volume,
Flashing Red & Blue Lights-All to Deter Intruders.

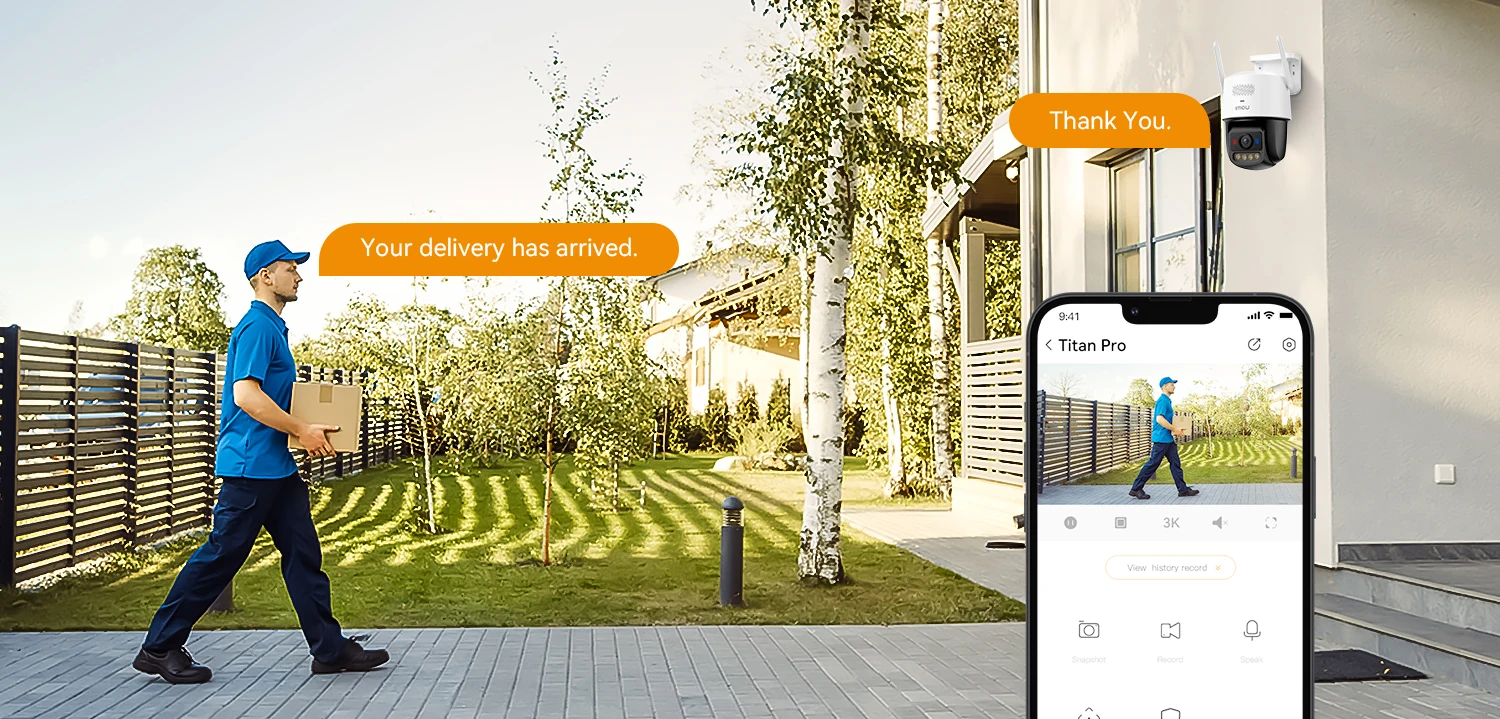

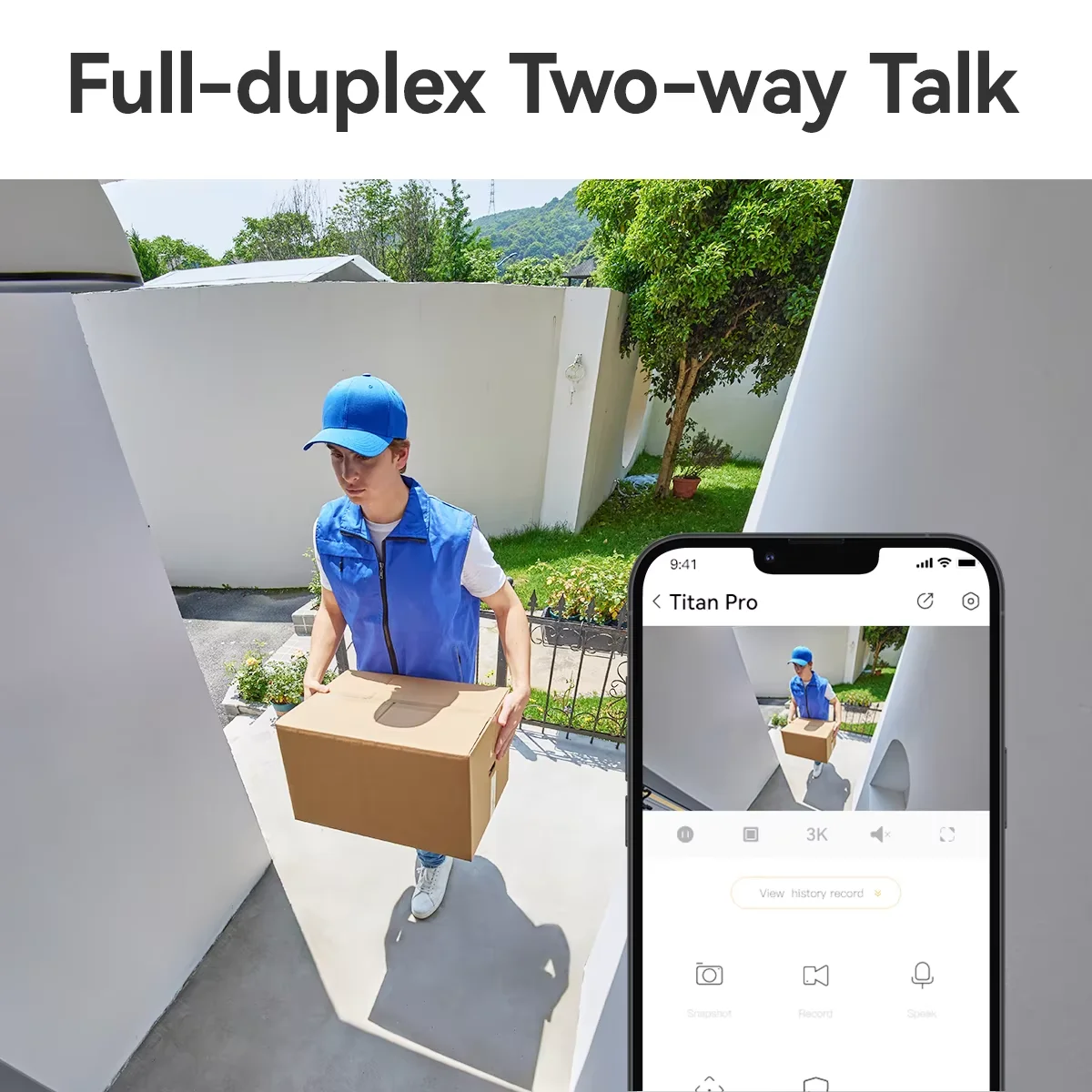

Experience Seamless Two-way Talk

Talk with others smoothly with less delay.

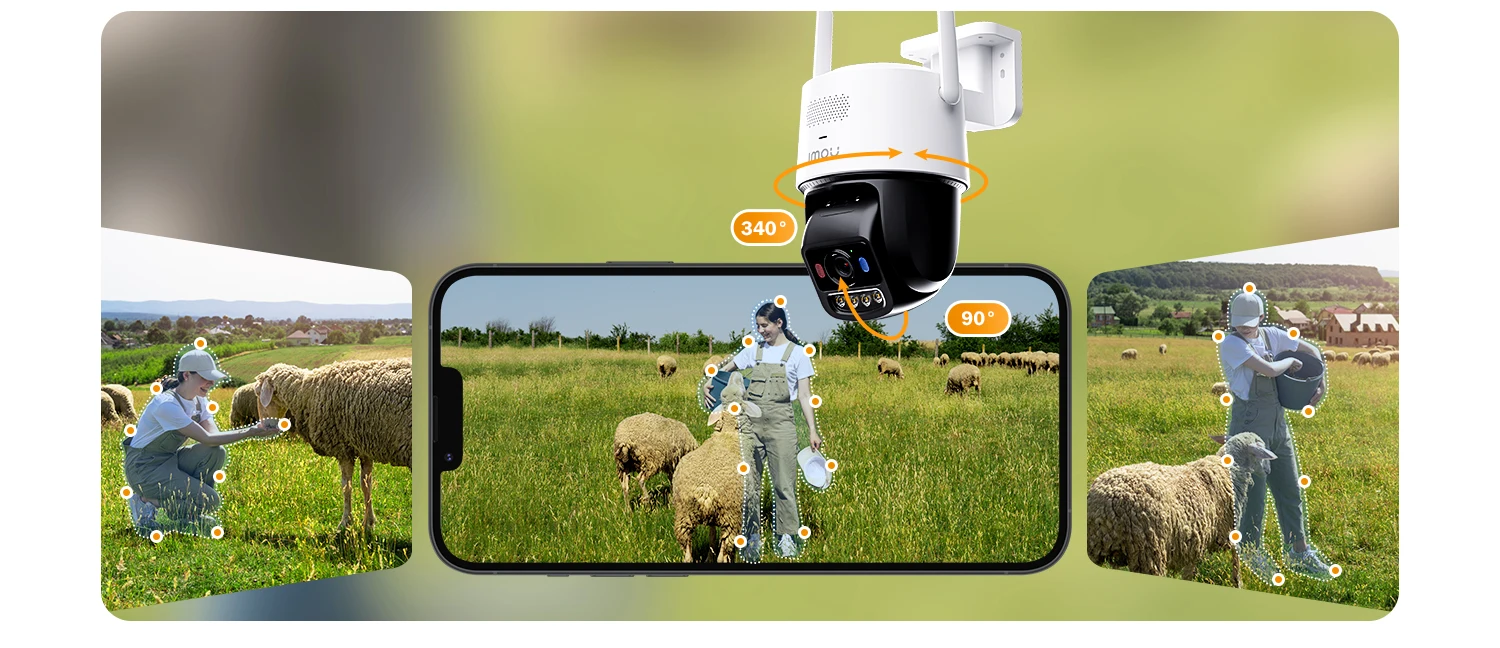

Tracks What Matters,
Turns Where It Needs.

Titan Pro can automatically follows people or vehicles while rotating
up to 340°horizontally and 90°vertically.

Full Control, Hands-Free Monitoring

Set cruise points and time schedules, your camera patrols on its own.

Tailored Security,Just for you

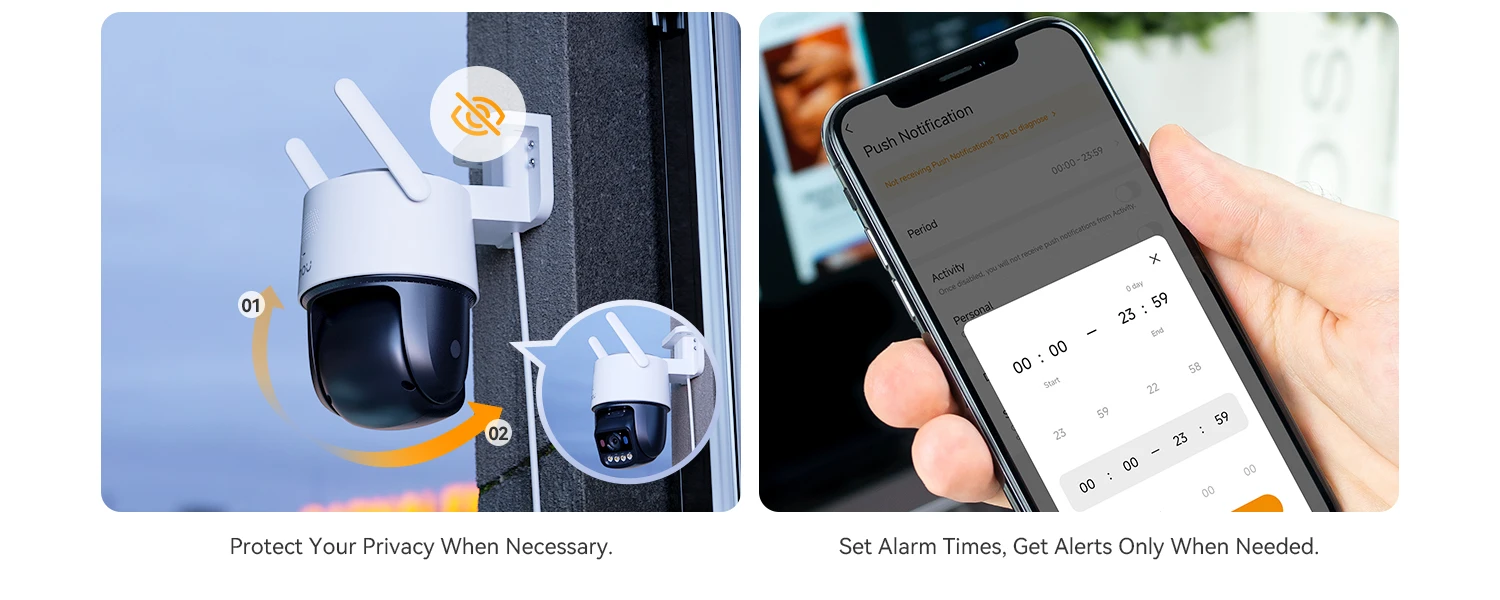

Protect Your Privacy when necessary

Set Alarm times,get alerts only when needed.



Enjoy easier security with Imou life app

Connect your home from anywhere

Customizable detection zone

Customizable alarm sound

Protection scheduling

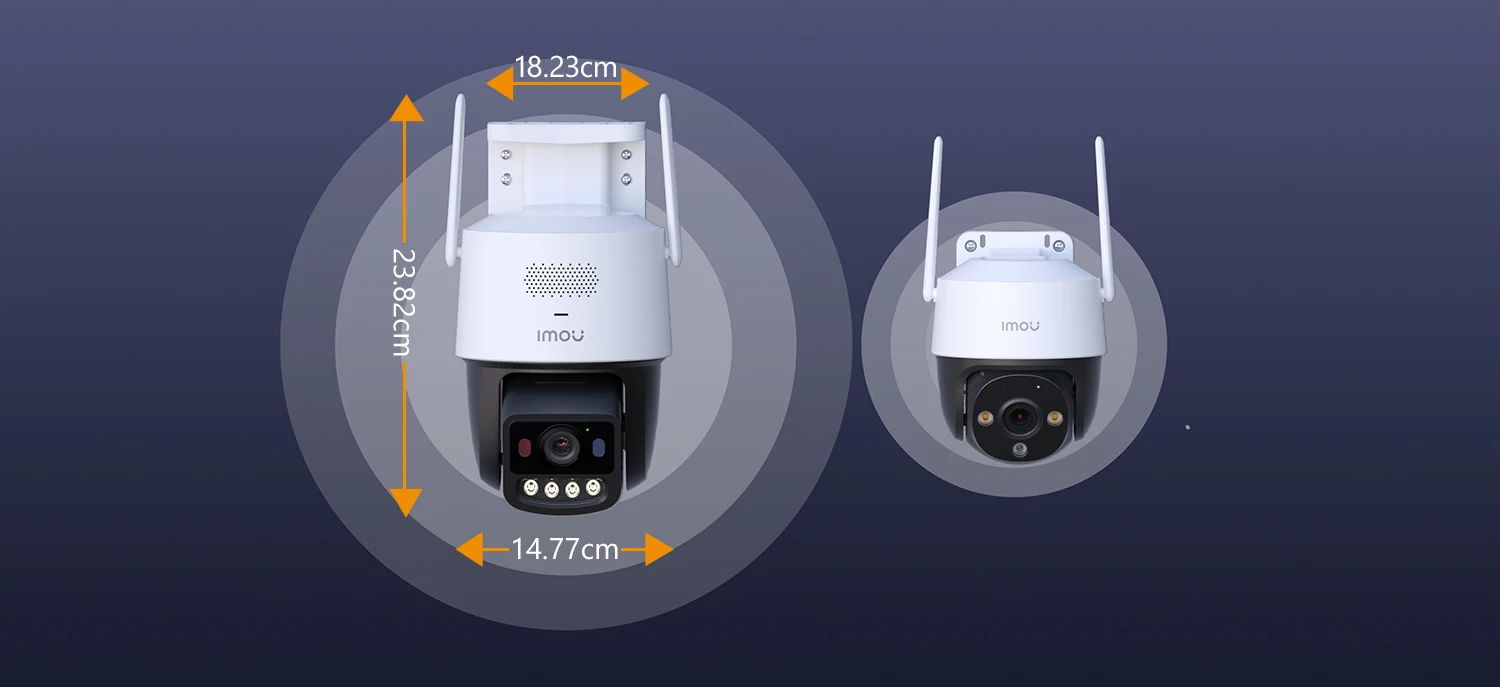

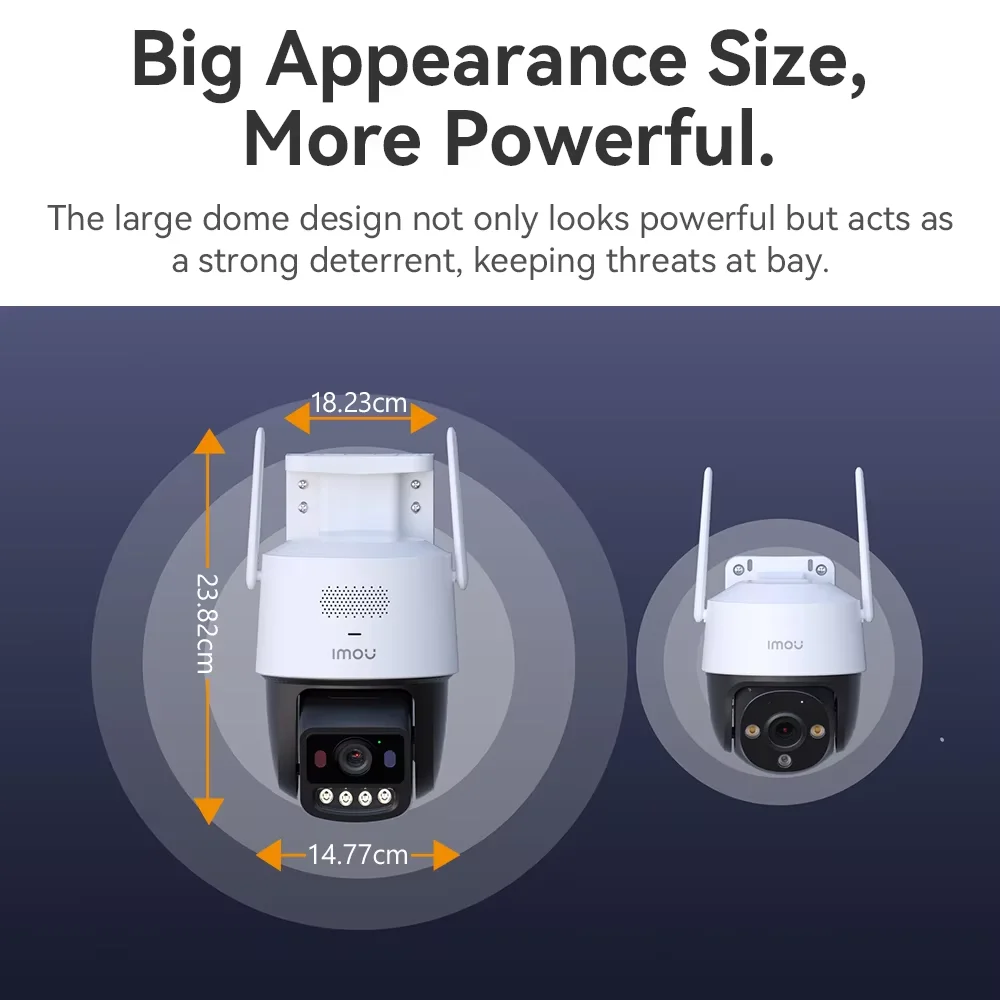

Big Appearance Size, More Powerful.

The large dome design not only looks powerful but acts as a strong deterrent,
keeping threats at bay.

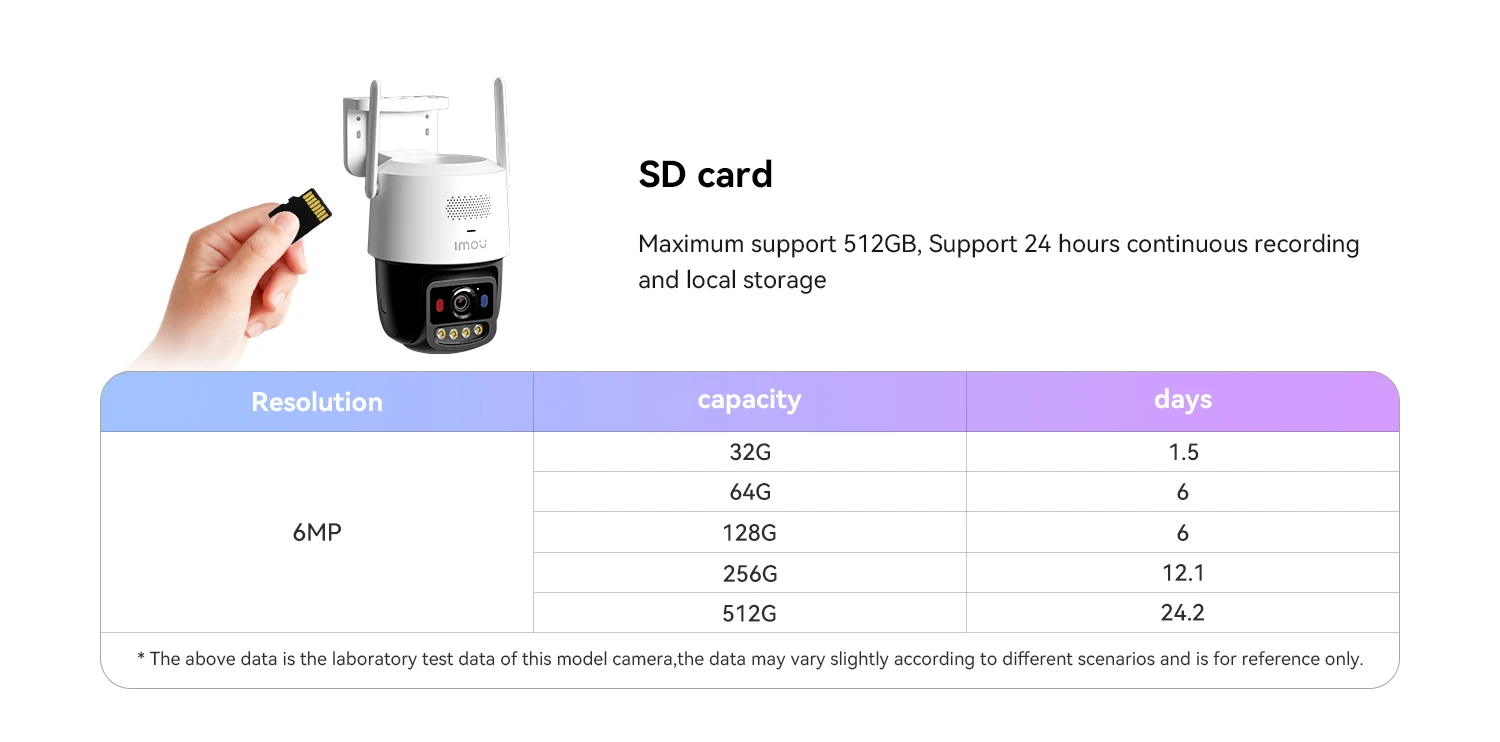

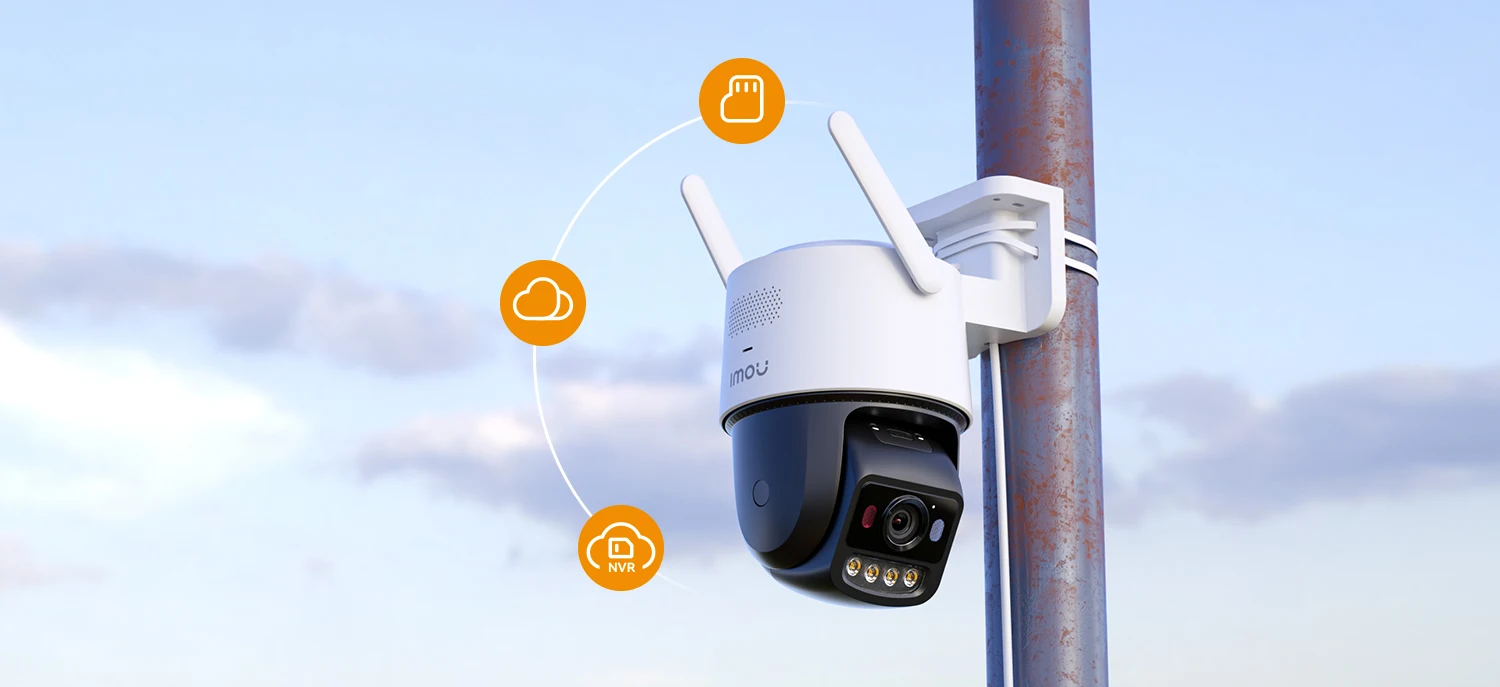

Diversified Storage,
Just Choose the Way You Like

Video is easily stored and accessed through SD Card, NVR or Cloud storage.

Work with Smart Home Platform

Imou life/Alexa



Operating with Imou Life App



▶ Step 1

Scan the following QR code or search “Imou Life” in Google Play or App Store to download and install the app.

▶ Step 2

Run Imou Life App, and then register an account for the first use.

▶ Step 3

Connect the camera to power source with the power adapter.

▶ Step 4

Wait for booting to be finished, and then the camera indicator flashes with green light.

▶ Step 5

Do the following operations to finish adding camera.

*Note：

If you have more than one camera, do step 5 to add them one by one.

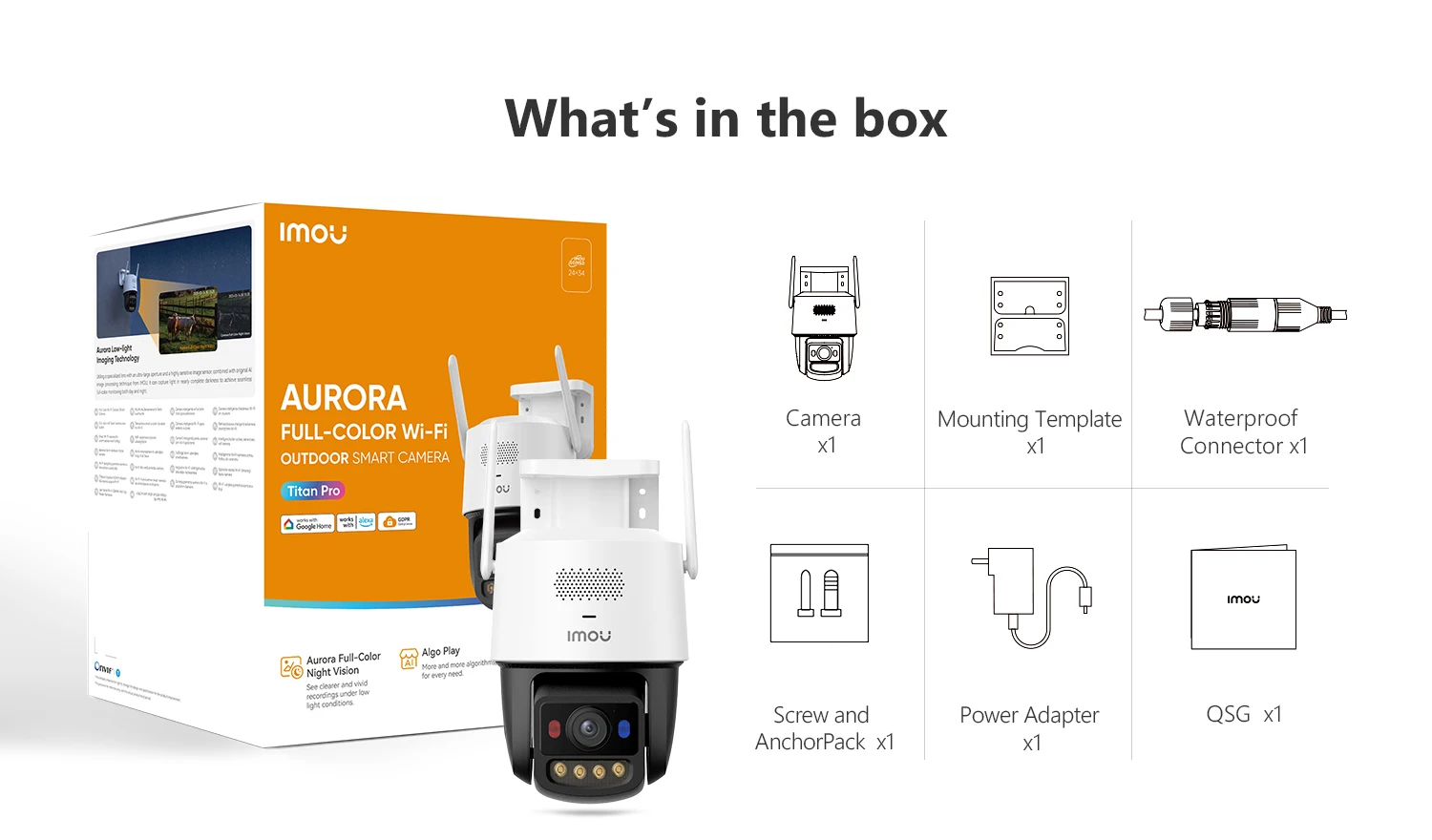

If the Wi-Fi network has changed or the indicator status goes wrong, reset the camera, and then do step 5 to add it again.What’s in the box?

– 1x Camera

– 1x Mounting Template

– 1x Power Adapter

– 1x Screw package

– 1x Waterproof Connector

– 1x Quick Start Guide

Specification



Camera





1/1.8″ 6Megapixel Progressive CMOS

6MP(3200*1800)

Night Vision: 30m(98ft]) Distance

3.6mm Fixed Lens F1.0

Field of View: 89° (H), 47° (V).107° (D)

0~340° Pan & 0~90° Tilt



Video & Audio

Video Compression : H.265/H.264

20 fps Frame Rate

8x Digital Zoom

Built+in Mic & Speaker, 125dB Siren

Two-way Audio



Notice Management

Algo Play.

Motion Detection

Human Detection

Vehicle Detection

Intrusion Detection(Human/Vehicle)

Crossing Line Detection (Human/Vehicle)

Continuously updating..



Auxiliary Interface

Micro SD Card Slot (up to 512GB)

Builtin Mic & Speaker

Reset Button



General

DC 12V1A Power Supply/PoE

Power Consumption:<12 w

Material: Plastic

Working Environment:-30° C~+60° C, Less Than 95%RH

Dimensions: 238.2 × 147.7x 182.3mm (9.38x 5.81 x 7.18inch)

Weight: 723.6g [1.6lb]

CE





FAQ

Q: Difference between SD memory card and cloud storage?

A:

1) Using SD card need to use computer to read the history monitoring screen, when the memory card is full, it will automatically delete and start a new round of recording, make sure to save the data in time;

2) Cloud storage is a value-added service, new devices have a 7-day free trial period of cloud storage, you can view the history monitoring screen directly in the app. When the trial period is over, you can choose to subscribe in the app. There is a time limit for using this service, when the time is full of 3 days or 7 days, the records will be automatically deleted and start a new round, make sure to save the data in time.



Q: How to modify device’s photo /name /channel name /password in mobile app?

A: Two methods to modify device infos from your account,firstly login into your account in mobile app:

Method 1: Go to preview page then click icon on the top right corner, go to device settings page,click device image bar to Device Info page,click corresponding option to modify.

Method 2: Click Me->My Device->select corresponding device ->click device image bar to Device info page -> click corresponding option to modify.



Q: The app says”Failed to bind”?

A: When the app says “Failed to bind”, it means your device is already successfully connected to your Wi-Fi, but failed to add the device to your Imou account. Please double check whether your router is connected to Internet, then try again. Normally the reason is the Internet connection is not stable.



Q: Imou account?

For security reason, one camera can be bound to only one Imou account. So if you want to add your camera to a new account, please delete it from the previous account first.

A: Two methods to delete camera from your account,firstly login into your account in mobile app:

(1) Method 1:go to preview page then click gear icon on the top right corner, go to device settings page, slide to the bottom then delete device.

(2) Method 2:Click Me->My Device->select corresponding device ->slide to the bottom ->Delete Device.



Q: I changed my Wi-Fi, I want to put the camera at a new location, how to connect my camera to my new Wi-Fi?

A:

1）Firstly please check whether your camera has an Ethernet port and whether you have an Ethernet cable at hand.

2）If yes, please power on your camera and connect it to your Router with the Ethernet cable, wait till the LED turn stably blue to make sure it has access to Internet. Then login to your Imou account, find your IPC on “Device” page and go to its settings page, then tap “Wi-Fi Config” and you can connect it to your new Wi-Fi.

3）If your camera has no Ethernet port or you don’t have a cable at hand, we suggest you reset your camera to factory default, then setup your camera with the new Wi-Fi.



Q: How can I receive the alarm message?

A:

1）Firstly, you need click the enable button in the upper right corner in the picture of the channel of main page.

2）If it says “Failed to subscribe”, we suggest you ensure the following configuration:

Receives notifications from APP. Enable Imou Notifications via “Settings”->” Notifications” on your iPhone and “Me”-> “Settings”-> “Notice” on Imou APP.

3）Enable Event in the device. Take motion detection as an example, the event should be enable and time schedule should be valid.

4）Make sure the device is connected to Internet.

5）After successfully subscribe, you will receive the message.



Q: Working at night, the image is all black？

A: Reason:

1）IR LED didn’t light up

2）ICR didn’t switch to night mode

3）Objects are too far away from the camera

Solution:

①If the IR LED did light up, but you cannot hear “KA” and the image is still all black, maybe there is something wrong with the ICR.

②For consumer cameras, the IR distance is less than 10m(differ between different models), so you cannot see too far away at night.
