Description

AOV PT

All-time, Always on

4G Sim Solar camera /4G camera solar power/4G camera

365 Days All-time Recording (AOV) I Unlimited Battery Life

Drill & Click Installation I 3K UHD Image

Smart Full-color Night Vision

5MP QHD Video | 4G + Wi-Fi Connection | 10000mAh Rechargeable Battery | Always-on Video Tech (AOV) | AI-Powered Human Detection

| Low-Battery Notifications | Two-way Talk
| Auto Tracking | Siren & Spotlight | IP66 | Flexible and Secure Storage up to 512G | Works with Solar Panel

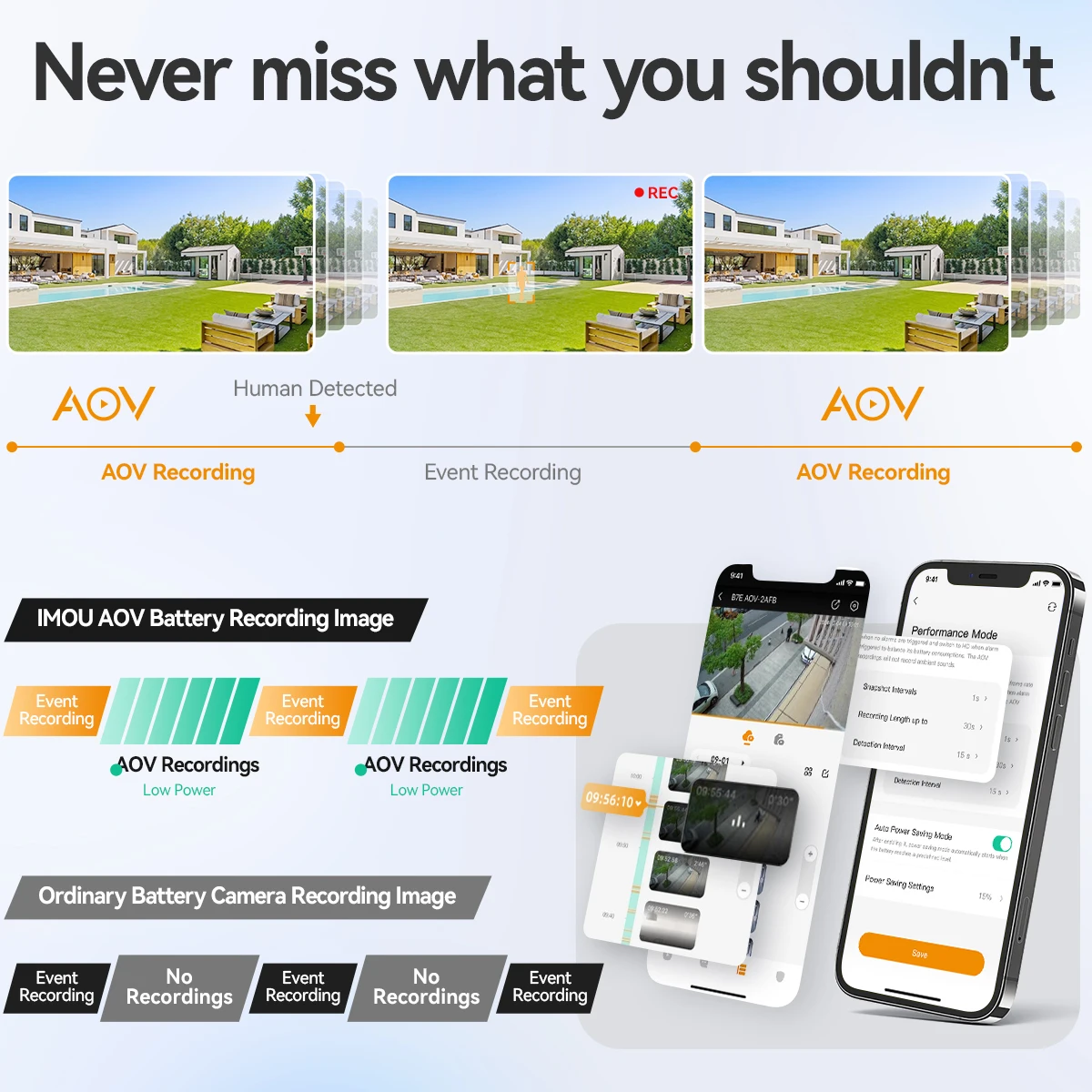

Never miss what you shouldn’t

AOV PT features IMOU’s industry-leading Always-On Video (AOV) technology’, which solves the problem of battery cameras that can’t record 24/7, so you can always rest easy.



AOV PT utilizes IMOU’s industry-leading Always-on Video (AOV) technology, which allows the camera to record one frame every 2 seconds to conserve memory and power when there is no event, but immediately switches to full-frame recording when an event occurs, meeting the needs of both all-day recording and power saving.

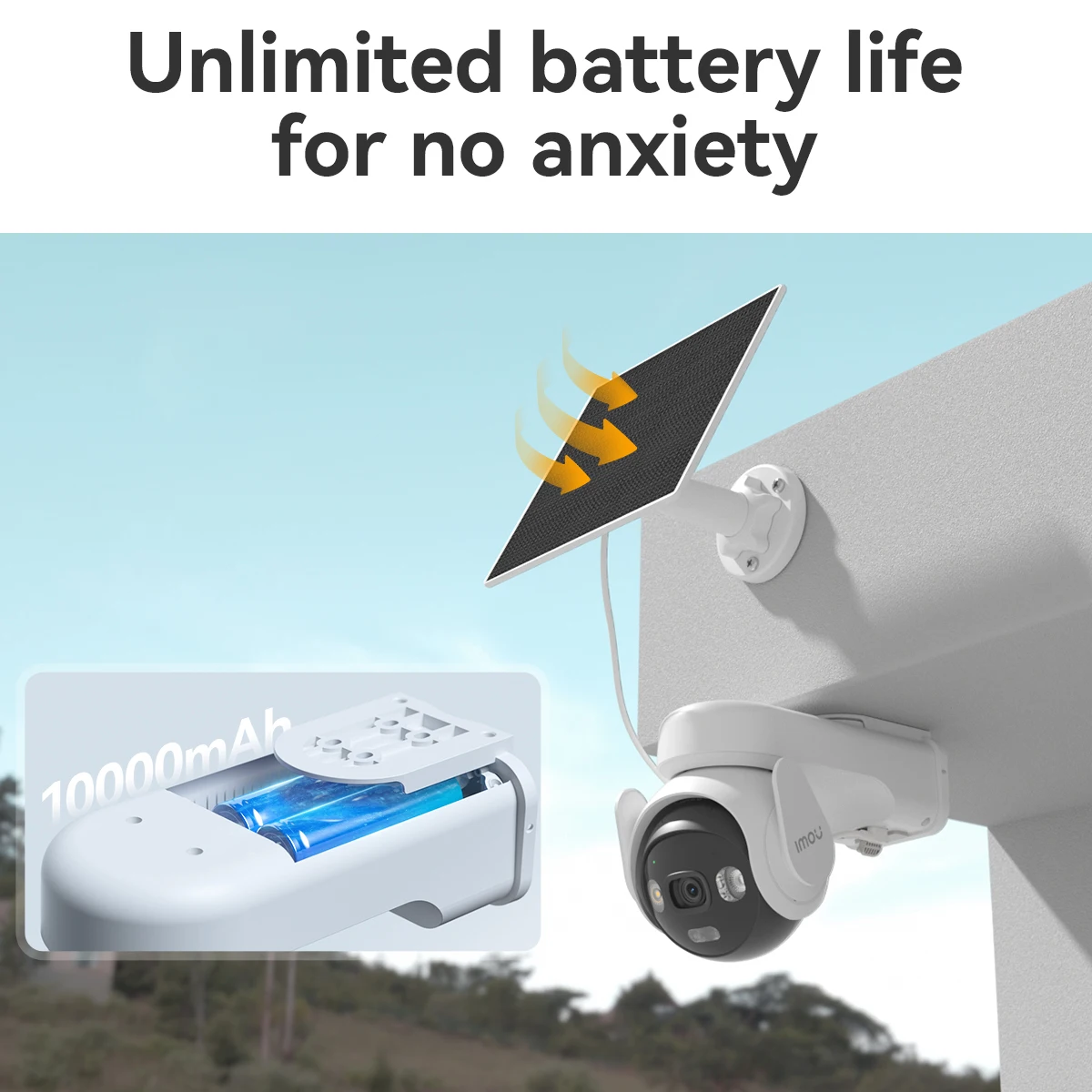

Unlimited battery life for no anxiety

AOV PT is dedicated to make its presence unnoticeable to the user, it is equipped with a large 10,000mAh battery and solar panels, which can be self-cycling and achieve unlimited battery life.Other AOV, 15 hours of battery life in pure AOV mode

IMOU AOV, 20 days of battery life in pure AOV mode

Other Solar 4G Camera，15 days of continuous video recording without AOV mode



Note: You can define and adjust the frame rate of AOV mode. The power consumption differs according to the frame rate. Capture a picture in 2 seconds under AOV mode for 20 days. Capture a picture in 10 seconds for up to 100 days. Data from IMOU Lab. Refer to actual usage.

Longer the detection, safer the protection

Based on AOV technology,the AOV PT has a much longer detection range than ordinary battery cameras, up to 25meters, without false detections due to PIR inaccuracies.

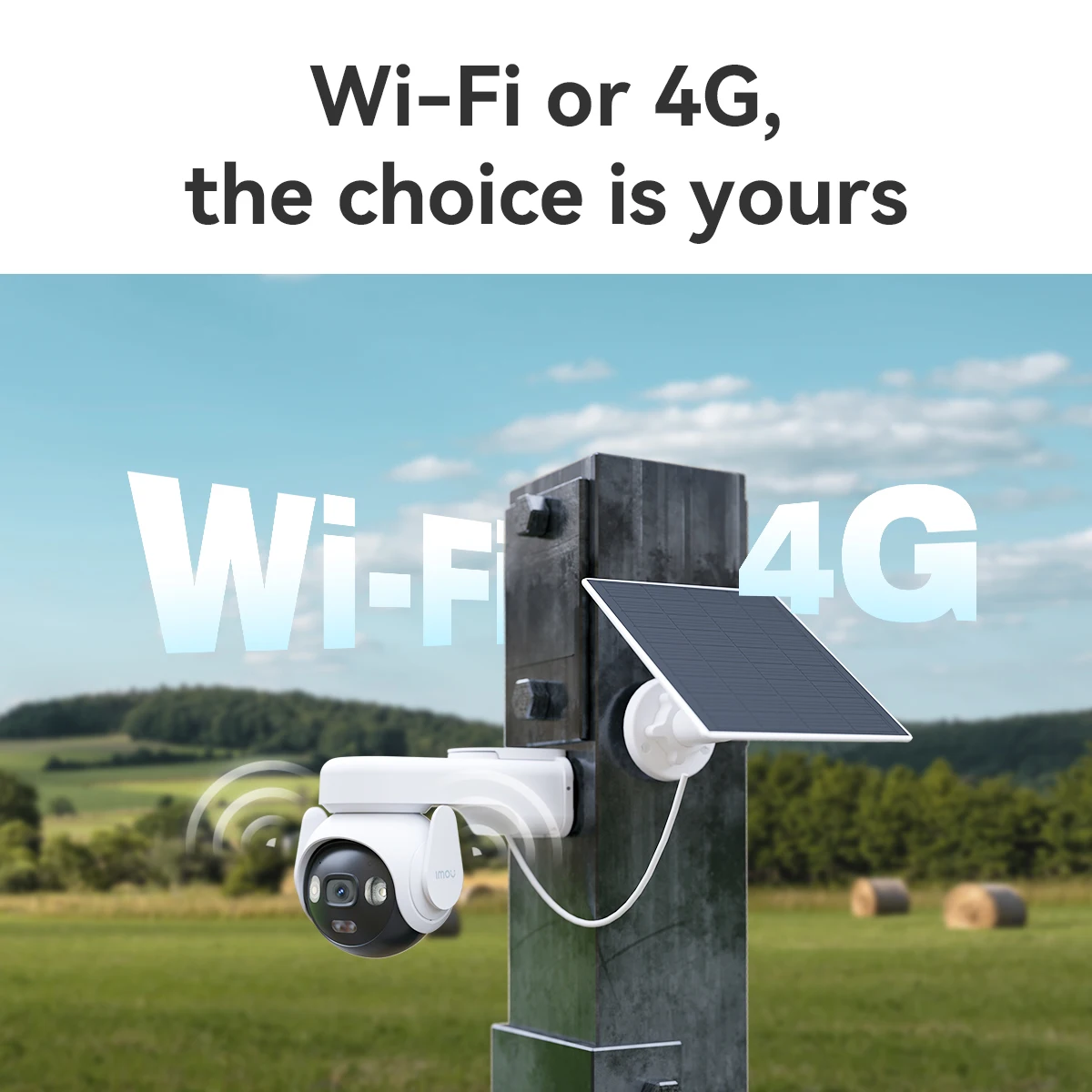

Wi-Fi or 4G², the choice is yours

In addition to the un limited battery life,weal so considered the network connection problems that users may face,so the AOV PT supports both Wi-Fi and 4G connection, and supports automatic switching when one of the connections is lost,to en sure it will not disconnect 24/7.

Unfazed by the cold, reliable charging in low temperatures

Whenever winter comes, battery cameras usually face the problem of not being able to charge. But don’t worry, with IMOU’s state-of-the-art low-temperature charging technology, the AOV PT can be charged even at -5°℃. （ Charges via solar power using low-temperature heating technology at -10-0, ensuring worry free operation in winter.）

Nowiring needed

Simply install the AOV PT in orchards, farms, holiday house, cottages,etc., without thinking about wiringwork,and it can quickly start protecting you.

Every angle, every detail

Secure your place with 3K UHD image AOV PT delivers 3K UHD high-resolution images so you don’t miss a single detail.

Panoramic pan & tilt for 360° protection

AOV PT supports 0°-330° pan and 0°-90° tilt to fully protect your home with a 360-degree view.

Light the night up with smartness

AOV PT can be adjusted to different night vision modes to suit your needs and can automatically switch to full color mode when a person is detected to ensure a clear and bright picture; you can also turn off the night vision mode or apply only IR mode to reduce power consumption.

Al human detection powered by IMOU SENSE

AOV PT IMOU SENSE is a self developed Al algorithm under the IMOU brand. The AOV PT utilizes the IMOU SENSE enhanced human detection algorithm, which provides a 50% improvement in overall accuracy and delivers results back to you in less than 0.02 seconds.

Professional protection to weather any storm

With an IP66 waterproof rating, AOV PT protects against dust ingress and easily handles the elements,keeping yousafe around the clock.

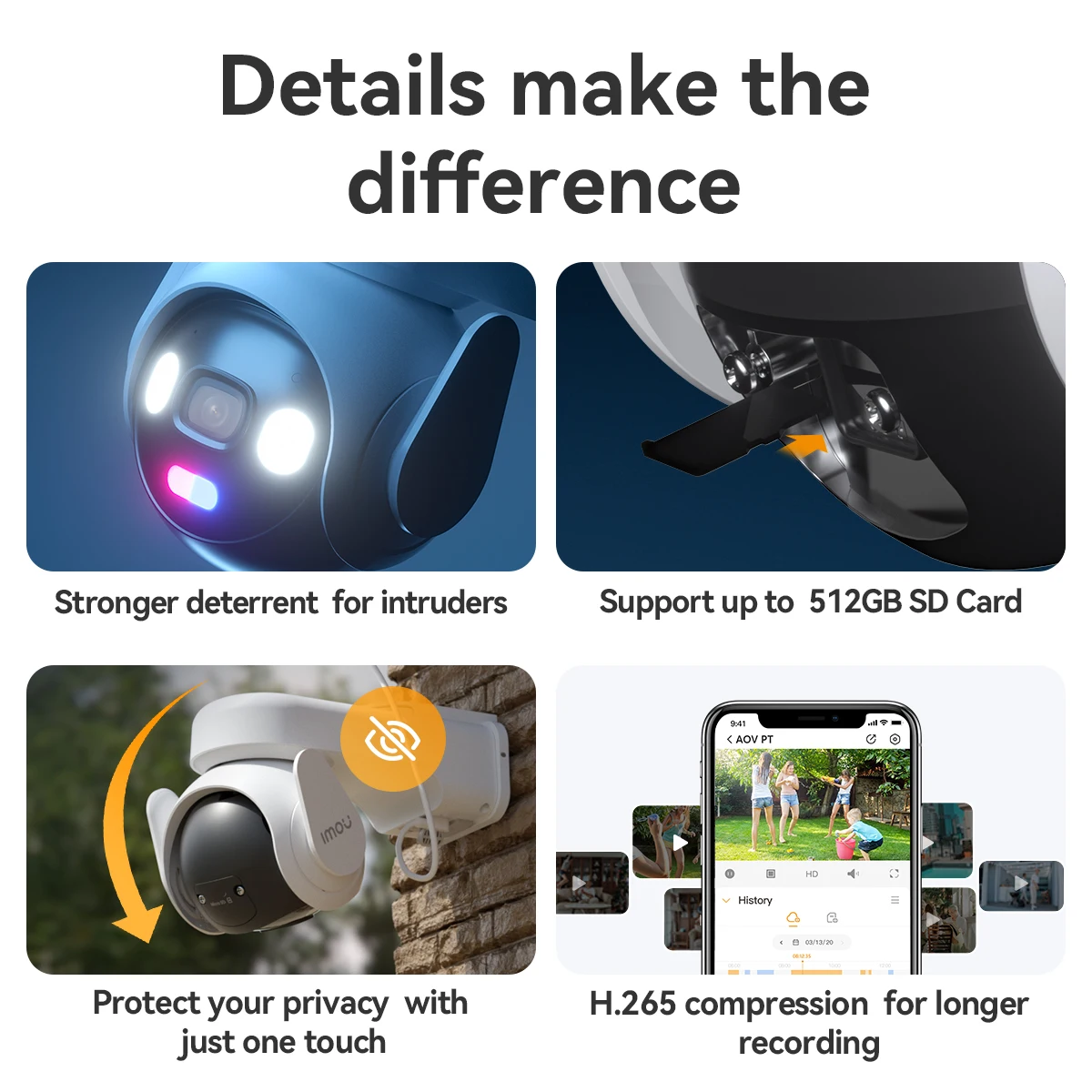

Details make the difference

Stronger deterrent for intruders

Support up to 512GB SD Card

H.265 compression for longer recording

Protect your privacy with just one touch.

Enjoy easier security with Imou Life

Connect your home from anywhere

Customizable detection zone

Customizable alarm sound

Protection schedulingNote: The 5W solar panel can store 1300 一 1400mAh Of power for the device under 2 hours of direct sunlight; the device triggers 100 event videos per day （ 50 during the day + 50 during the night) and the rest Of the time is time-lapse video in AOV Ode ， which consumes about 1000mAh Of power, SO it is inferred that the use Of solar panels can achieve unlimited battery life, and the actual battery life depends on the number Of events triggered per day and the intensity Of sunlight. The 4G data consumption depends on the duration Of your daily live view and AOV record playback and event record playback, if you preview 5 times and view the playback 5 times a day, and each viewing lasts 1 minute, you can expect tO consume a total of 120MB of data. lt supports SD cards Of different sizes, and in AOV mode with no event triggers, a 32GB memory card can store video for 30 一 40 days, 64GB for 70 一 80 days, 128GB for 160 一 170 days, 256GB for 340 一 350 days, and 512GB for 680 一 690 days.



Things You Should Know About 4G Connection and Pre-installed SIM Card



For EU Version:Pre-installed SIM Card and 32G SD Card

For Global Version :NO Pre-installed SIM Card and 32G SD Card



The bands supported by 4G Camera are listed below



● EU Plug: LTE FDD: Band 1/3/5/7/8/20/28, LTE TDD: Band 38/40/41



● American Plug: LTE FDD: Band 1/2/3/4/5/7/8/28/66



Pre-installed SIM card and SD card only support in these European countries:



Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovak Republic, Slovenia, Spain, Sweden, United Kingdom;

In other countries, the built-in SIM card and SD card feature are not supported, and we are actively working on expanding support to additional markets and will keep this information updated. You can check the list or contact our customer support team for further assistance.



Notice for Use Pre-installed SIM Card

Please note that the included SIM card is only compatible with Imou 4G security cameras. Avoid inserting it into any smartphone or electronic product.

To ensure proper recognition and prevent the SIM card from getting stuck, please insert it properly as demonstrated in the Quick Start Guide.



Pre-installed SIM Card Compatible Network Carriers

We recommend using the SIM card included in the 4G security camera because it supports major mobile network service providers globally and can automatically activate upon initial device setup. However, if you prefer to use SIM cards from other mobile network service providers, that’s completely acceptable.

The User Manual in Download outlines the supported carriers for our pre-installed SIM cards in available countries and regions. The supported carriers are subject to change in the future, please refer to the latest information.

Product Details

What’s in the box

-1xCamera

-1x Power Cable(1m)

-1x Screw Positioning Stickers

-1x Quick Start Guide

-1x Mouting Bracket

– 1x Sarew and Wall Anchor pack

– 1x Solar Panel

-1xLocking Screw Cap -3 Wall Anchors

-1x Unversal joint-1x Base

-1x Quick start Guide

-1x Circular Socket Nut -4 Screws

Specifications

Camera

1/3 Progressive CMOS5MP(2880*1620)

Night vision: 20m(65ft) Distance3.6mm Fixed Lens

Field of View:3.6mm: 76°(H),41°(V), 91°(D)(340° Pan, 90° Tilt )

10000mAh Rechargeable Battery

Network

WiFi

Wireless Standard: lEEE802.1 1b/g/nOperating Frequency:2.4GHz

4G LTE

EULTE FDD :B113/51718/20/28

LTE TDD:B34/38/39/40/41

Transmission Data

LTE FDD (Mbps): 10.3(DL)/5.1(UL)

LTE TDD (Mbps): 9.1(DL)/3.1(UL)

lmou App: iOs, Android



Video & Audio

Video Compression :H.265/H.264

Up to 15fps Frame Rate

8x Digital loom

Two-way Audio



Notice Management

Human Detection

Configurable Region

Performance mode



Auxiliary Interface

Builf-in Mic & Speaker

Power on / off Button

Reset Button

Micro SD Card Slot (up to 512GB)



General

Material: Plastic

DC 5V 2A Power / lmou Solar Panel supply

Power Consumption:< 3.5w

OperatingTemperature:-20℃~+50℃ (-4F~122F)

Charging lemperature:-10℃~+45℃ (14F~113℉)

Camera Dimensions: 177*110*142 mm| 6.96*4.33*5.59 inch)

Kit Package Dimensions:222*181*177mm( 8.74*7.13*6.97inch)

Camera weight: 1000g( 2.2lb)

Kit weight: 1300g( 2.87lb)

CE



Storage

Local storage: SD Card slot (support SD Card up to 512GB)



Cloud Storage: Not support



FAQ

Q:Difference between SD memory card and cloud storage?

A:

1) Using SD card need to use computer to read the history monitoring screen, when the memory card is full, it will automatically delete and start a new round of recording, make sure to save the data in time;

2) Cloud storage is a value-added service, new devices have a 7-day free trial period of cloud storage, you can view the history monitoring screen directly in the app. When the trial period is over, you can choose to subscribe in the app. There is a time limit for using this service, when the time is full of 3 days or 7 days, the records will be automatically deleted and start a new round, make sure to save the data in time.

Q:How to modify device’s photo /name /channel name /password in mobile app?

A:Two methods to modify device infos from your account,firstly login into your account in mobile app:

Method 1: Go to preview page then click icon on the top right corner, go to device settings page,click device image bar to Device Info page,click corresponding option to modify.

Method 2: Click Me->My Device->select corresponding device ->click device image bar to Device info page -> click corresponding option to modify.

Q:The app says”Failed to bind”?

A:When the app says “Failed to bind”, it means your device is already successfully connected to your Wi-Fi, but failed to add the device to your Imou account. Please double check whether your router is connected to Internet, then try again. Normally the reason is the Internet connection is not stable.

Q:Imou account?

For security reason, one camera can be bound to only one Imou account. So if you want to add your camera to a new account, please delete it from the previous account first.

A:Two methods to delete camera from your account,firstly login into your account in mobile app:

(1) Method 1:go to preview page then click gear icon on the top right corner, go to device settings page, slide to the bottom then delete device.

(2) Method 2:Click Me->My Device->select corresponding device ->slide to the bottom ->Delete Device.

Q:I changed my Wi-Fi, I want to put the camera at a new location, how to connect my camera to my new Wi-Fi?

A:

1）Firstly please check whether your camera has an Ethernet port and whether you have an Ethernet cable at hand.

2）If yes, please power on your camera and connect it to your Router with the Ethernet cable, wait till the LED turn stably blue to make sure it has access to Internet. Then login to your Imou account, find your IPC on “Device” page and go to its settings page, then tap “Wi-Fi Config” and you can connect it to your new Wi-Fi.

3）If your camera has no Ethernet port or you don’t have a cable at hand, we suggest you reset your camera to factory default, then setup your camera with the new Wi-Fi.

Q:How can I receive the alarm message?

A:

1）Firstly, you need click the enable button in the upper right corner in the picture of the channel of main page.

2）If it says “Failed to subscribe”, we suggest you ensure the following configuration:

Receives notifications from APP. Enable Imou Notifications via “Settings”->” Notifications” on your iPhone and “Me”-> “Settings”-> “Notice” on Imou APP.

3）Enable Event in the device. Take motion detection as an example, the event should be enable and time schedule should be valid.

4）Make sure the device is connected to Internet.

5）After successfully subscribe, you will receive the message.

Q:Working at night, the image is all black？

A:Reason:

1）IR LED didn’t light up

2）ICR didn’t switch to night mode

3）Objects are too far away from the camera

Solution:

①If the IR LED did light up, but you cannot hear “KA” and the image is still all black, maybe there is something wrong with the ICR.

②For consumer cameras, the IR distance is less than 10m(differ between different models), so you cannot see too far away at night.
