New

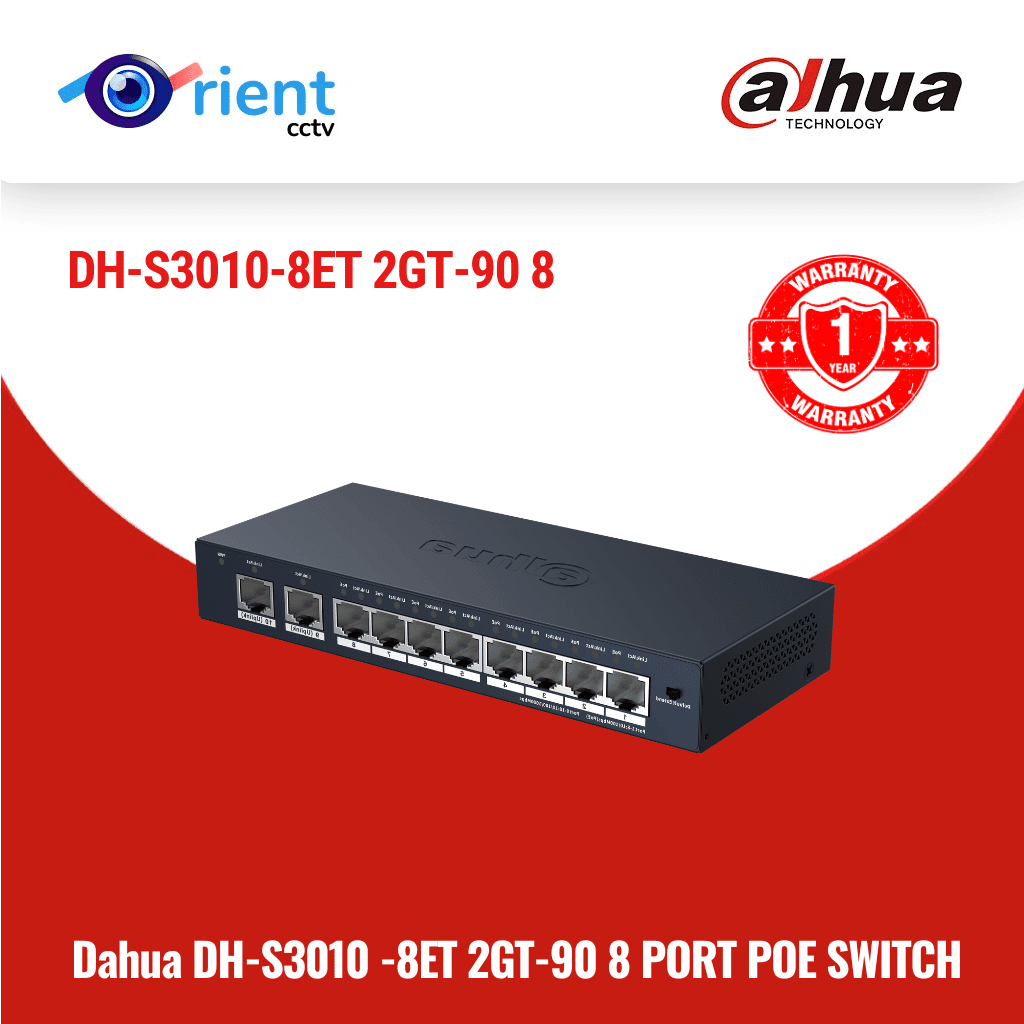

Dahua DH-S3010-8ET2GT-90 10-Port Switch with 8-Pot PoE (90W) - Image 1

Dahua DH-S3010-8ET2GT-90 10-Port Switch with 8-Pot PoE (90W)

PoE Switch | DH-S3010-8ET2GT-90
Basic Management Type No
Basic Layer Unmanaged
Basic Switching Capacity 5.6 Gbps
Basic Packet Forwarding Rate 4.168 Mpps
Basic Description of Function Slots Port 1-8: 8 × RJ-45 10/100 Mbps (PoE)
Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)
Basic Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Basic Operating Humidity 10%–90% (RH), non-condensing
Basic Storage Temperature –40 °C to +75 °C (–40 °F to +167 °F)
Basic Storage Humidity 5%–95% (RH), non-condensing
Basic Power Supply External power supply: 53 V, 50/60 Hz, max 1.81 A
Basic Included Power Adapter Yes
Basic Power Consumption Idling: 2.1 W
Full load: 94.2 W
Basic Statics Protection Air discharge: 8 kV
Contact discharge: 6 kV
Basic Lightning Protection Common mode: 6 kV
Differential mode: 1 kV
Basic Net Weight 0.3 kg (0.66 lb)
Basic Gross Weight 0.882 kg (1.94 lb)
Basic Product Dimensions 184.6 mm × 77.4 mm × 27 mm (7.27″ × 3.32″ × 1.06″) (L × W × H)
Basic Packaging Dimensions 253 mm × 112 mm × 83 mm (9.96″ × 4.41″ × 3.27″) (L × W × H)
Basic Casing Material Sheet Metal
Basic Installation Desktop mount; wall mount
PoE PoE Yes
PoE PoE Power Port 1-8≤30 W, total≤90 W
PoE PoE Protocol IEEE 802.3af; IEEE 802.3at
PoE PoE Pin Assignment 1,2,4,5 (V+),3,6,7,8 (V-)
PoE ePoE No
PoE Long Distance PoE Transmission Yes
Hardware Modular Switch/Fixed Switch Fixed
Hardware DIP Switch Long Distance PoE: The transmission distance of ports 1–8 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.
Hardware Ethernet Port 8
Hardware Ethernet Port Speed 10/100 Mbps
Hardware Ethernet Port Uplink Speed 10/100/1000 Mbps
Performance Packet Buffer Size 1 Mbits
Performance Jumbo Frame 9216 Byte
Performance MAC Table Size 2K
Performance Flash 2 MByte
Performance Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3ab; IEEE802.3x
General Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter

₨ 13,500

Compare

Add to wishlist

Last chance! Sale ends in

00
Days

00
Hours

00
Min

00
Sec

Description

The Dahua DH-S3010-8ET2GT-90 PoE Switch is a reliable and high-performance 10-Port unmanaged PoE switch specially designed for CCTV surveillance systems, offices, shops, schools, and small business networks in Pakistan. It comes with 8 PoE ports and 2 Gigabit uplink ports, allowing you to connect IP cameras, NVRs, wireless access points, and other network devices with stable power and data transmission through a single cable.

This switch supports IEEE 802.3af/at PoE standards with a total PoE power budget of up to 90W, making it ideal for powering multiple security cameras without extra adapters. Its long-range PoE transmission can extend up to 250 meters, which is perfect for large homes, plazas, warehouses, factories, and outdoor camera installations in Pakistan.

The DH-S3010-8ET2GT-90 features a durable full-metal body with fanless silent operation for better heat dissipation and long-lasting performance even in hot weather conditions. With plug-and-play functionality, users can easily install the switch without any technical configuration, saving time and installation costs.

Whether you need a dependable networking solution for Dahua IP cameras, office networking, or commercial security setups, this PoE switch delivers stable connectivity, efficient power management, and professional-grade performance for Pakistani customers.

- PoE Standards: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)
- PoE Budget: Max \(\leq30\text{ W}\) per individual port; Total budget \(\leq90\text{ W}\)
- Long-Distance Transmission: Supports extend mode (via DIP switch), allowing PoE ports (1–8) to transmit data and power up to 250 meters at a reduced speed of \(10\text{ Mbps}\). [1, 2]

Performance

- Switching Capacity: \(5.6\text{ Gbps}\)
- Packet Forwarding Rate: \(4.168\text{ Mpps}\)
- MAC Table Size: \(2\text{K}\) entries [1, 2]

Environmental & Protection

Operating Temperature: \(-10\text{ }\text{°C}\) to \(+55\text{ }\text{°C}\)
Lightning Protection: Common mode: \(6\text{ kV}\), Differential mode: \(1\text{ kV}\)
ESD Protection: Air discharge: \(8\text{ kV}\), Contact discharge: \(6\text{ kV}\) [1]
