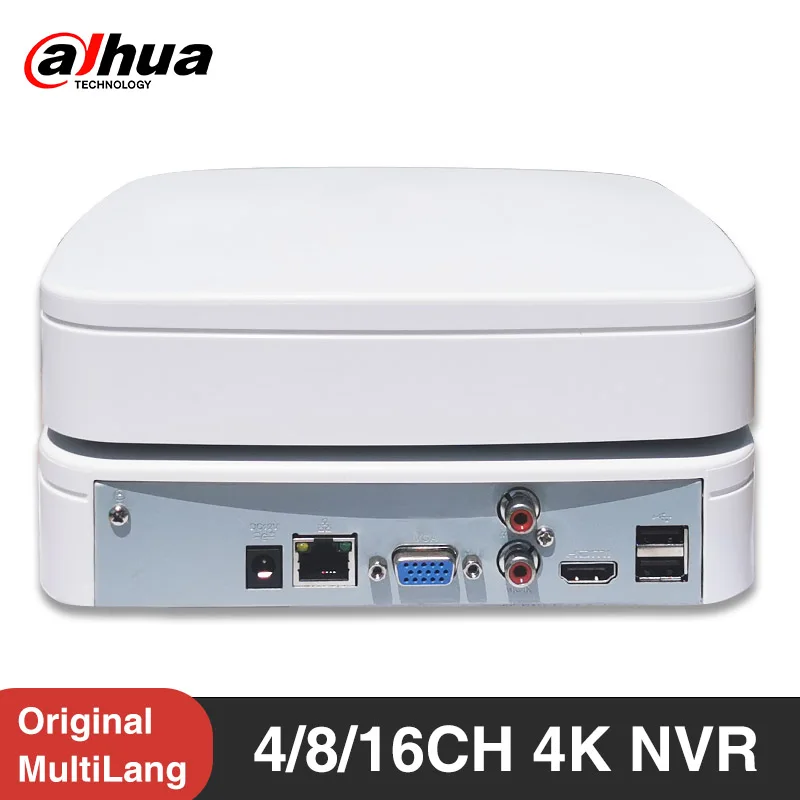

Dahua Original 4K NVR 4/8/16CH Smart H.265 Network Video Recorder P2P NVR4104-4KS3 NVR4108-4KS3 NVR4116-4KS3

Description

Original | Multi Lang

NVR4104/8/16-4KS3

4/8/16 Channel Smart 1U 1HDD 4PoE

·  New 4.0  ·  Smart H.265+   ·  8 × 1080p@30 fps·  ONVIF and RTSP protocols  ·  P2P remote surveillance ·VGA/HDMI 4K

  ·  Face detection, perimeter protection, IVS, people counting, heat map, and SMD

·   Supports remote configuration and management of IPC

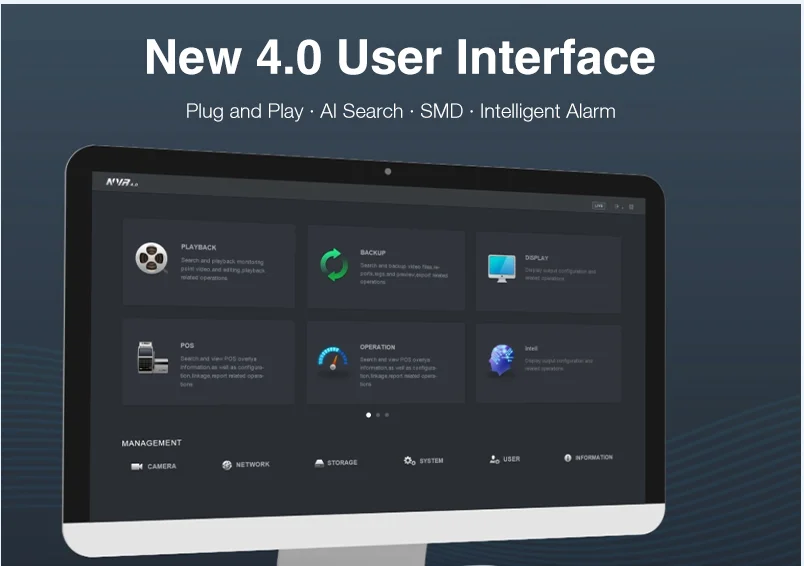

The latest NVR4.0 system

New 4.0 user interface, Security baseline 2.1,A more convenient and smarter operating system.

P2P Remote Surveillance

It makes surveillance easy and simple, allowing you to remotely access back-end devices, view live video,

receive event push notifications, and search for recorded videos from an iPhone, iPad,

or Android phone at anytime from virtually anywhere.

Perimeter Protection by Camera

Automatically filtering out false alarms caused by animals, rustlingleaves,

bright lights, etc. Enables system to act secondary recognition for the targets. Improving alarm accuracy.

Trigger motion detection to immediately alarm, detect faces automatically track and capture.

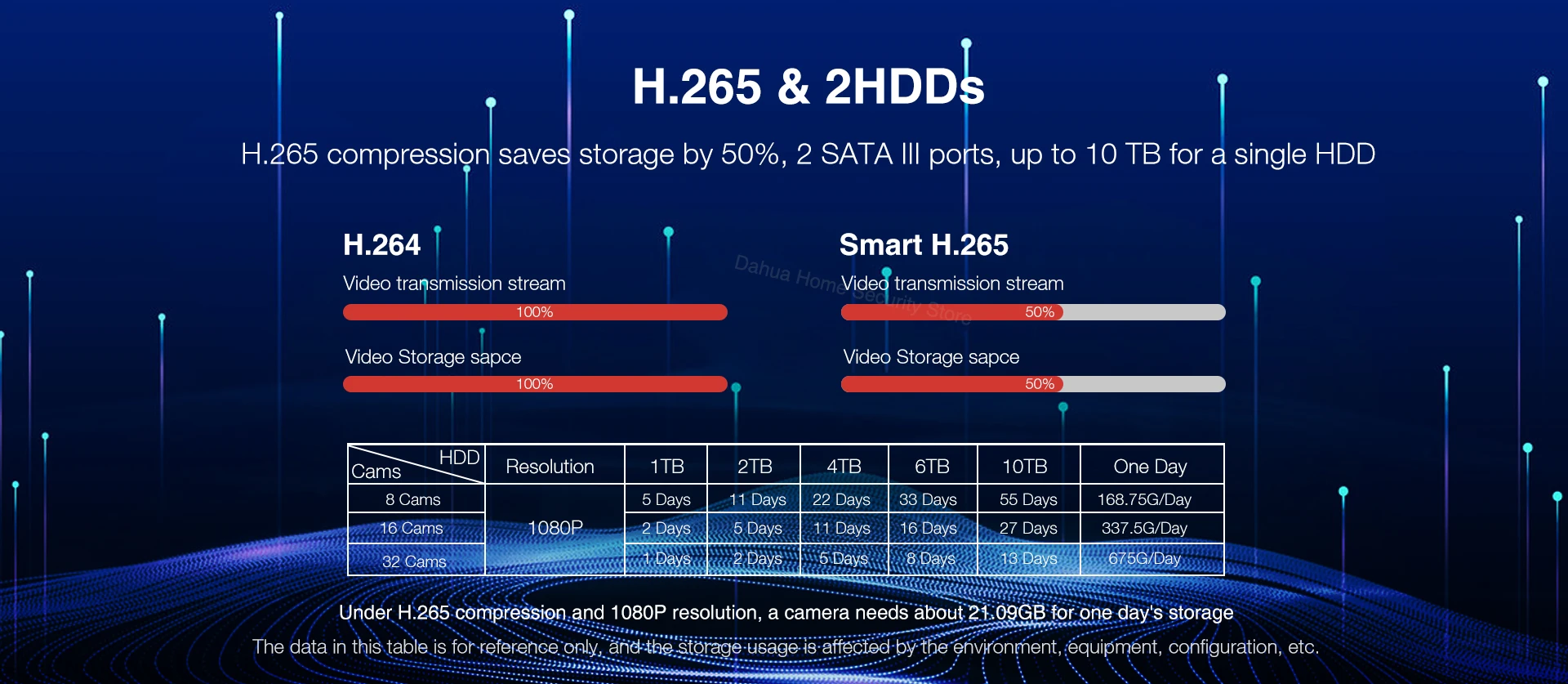

4K & H.265

4K HDMI resolution high quality image, and good protection,

Cutting-edge H.265 compression reduces network bandwidth and storage usage by 50% at the same video quality.

Third-party Camera Access

That supports for multi-user access and is compatible withONVIF Profile S,

T, G protocol, enabling interoperability with IP cameras.

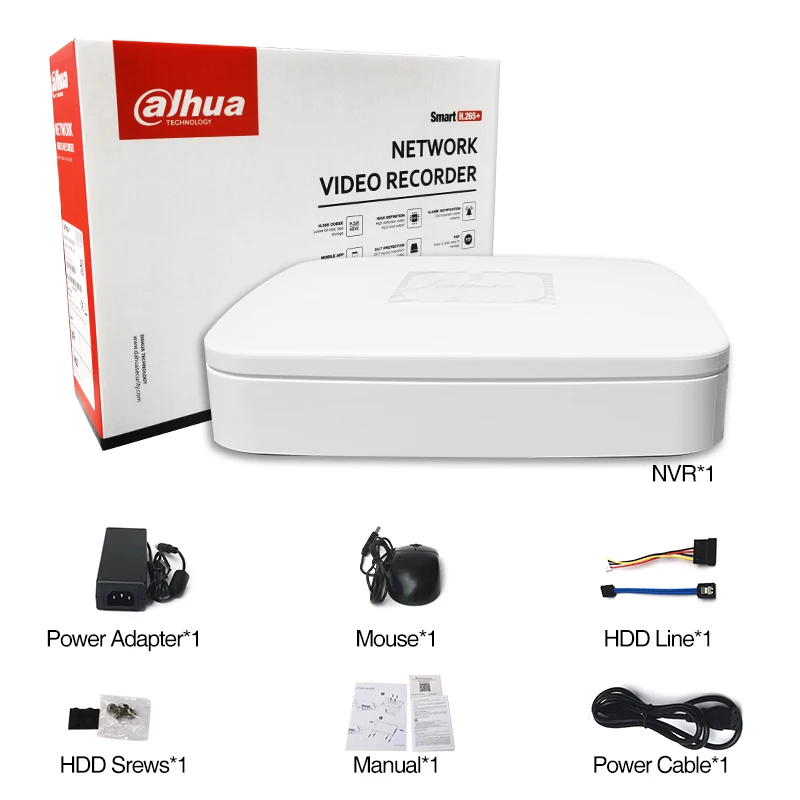

Package Listing

·  NVR*1·  Power Adapter*1 ·  Mouse*1 ·  HDD Line*1·  HDD Srews*1 · Manual*1 · Power Line*1

——————————————————————————————————————————

Specifications

System

Main Processor

Industrial-grade embedded processor

OS

Embedded Linux

Operation Interface

Web/operating in local GUI

Perimeter Protection by Camera

Performance

4 channels

AI Search

Search for pictures by channel, time and event type

Face Detection by Camera

Performance

4 channels

Face Attributes

6 attributes: Gender, age, glasses, expression, mouth mask, and beard

AI Search

Search for pictures by channel, time and face attributes

SMD Plus by Camera

Performance

4 channels

AI Search

Search by target classification (human, vehicle)

Video

Access Channel

4

Network Bandwidth

Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps

Resolution

8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1

Decoding Capability

8 × 1080p@30 fps

Video Output

1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI

Multi-screen Display

1 , 4 views

Third-party Camera Access

ONVIF; RTSP

Compression

Video

Smart H.265/H.265/Smart H.264/H.264/MJPEG

Audio

PCM/G711A/G711U/G726/AAC

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register

Mobile Phone Access

Android; iOS

Interoperability

ONVIF(profile T/S/G); CGI; SDK

Browser

Chrome; IE9 or later; firefox

Record Playback

Multi-channel Playback

Up to 4 channels for playback

Record Mode

Manual record; alarm recording; SMD recording; smart recording

Storage

Local HDD; network

Backup

USB storage device

Playback Function

1. Play/pause/stop/slow/quick/backward/by frame 2. Full screen, backup (video clip/file), partial zoom in, and audio on/off

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm

Anomaly Alarm

Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception

Intelligent Alarm

Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms

Alarm Linkage

Recording, snapshot, audio, buzzer, log, preset, and email

External Port

Audio Input

1 × RCA input

Audio Output

1 × RCA output

HDD

1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB

2 (2 × back USB2.0)

HDMI

1 (supports up to 4K resolution output)

VGA

1

Network

1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

General Parameter

Power Supply

12 V DC, 2 A

Power Consumption

< 10 W (HDD not included, idling)

Net Weight

0.45 kg (0.99 lb)

Gross Weight

1.07 kg (2.36 lb)

Product Dimensions

204.6 mm × 206.4 mm × 48.1 mm (8.06″ × 8.12″ × 1.90″) (W × L × H)

Package Dimensions

96 mm × 364 mm × 261 mm (3.78″ × 14.33″ × 10.28″) (W × L × H)

Operating Conditions

–10 °C to +50 °C (+14 °F to +122 °F)

Storage Conditions

0 °C to +40 °C (32 °F to 104 °F)

Operating Humidity

10℅~93℅

Storage Humidity

30%~85%

Operating Altitude

3000 m (9842.52 ft)

Installation

Desktop mounted

Certifications

CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B

――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――――

Order Dahua’s 4K NVR from Orient CCTV for the Best Security Solutions!

Dahua’s original 4K NVR video recorder is what you need for home or office security.

The latest NVR 4.0 system

Dahua’s new 4.0 user interface. With Security Baseline 2.1, we’ve crafted a more convenient and smarter operating system that enhances your experience.

P2P Remote Surveillance

Experience effortless surveillance at your fingertips. With the power to remotely connect to back-end devices, you can stream live video feeds, get instant event alerts, and sift through recorded footage, all from your device, wherever you are, whenever you need.

Perimeter Protection by Camera

This video recorder filters out false alarms from animals, rustling leaves, and bright lights. Accurate alerts enhance system responsiveness for targets. Instantly detect motion, capture faces, and track automatically.

4K & H.265

Experience stunning 4K HDMI resolution that delivers high-quality images with excellent protection. Plus, our cutting-edge H.265 compression technology helps reduce network bandwidth and storage usage by an impressive 50% while maintaining the same exceptional video quality you love!

Third-party Camera Access

This 4K CCTV NVR system supports multi-user access and is compatible with ONVIF Profile S, T, and G protocols, which enables seamless interoperability with IP cameras.

Looking to enhance your home or office security? Dahua cameras from Orient CCTV are just what you need!
