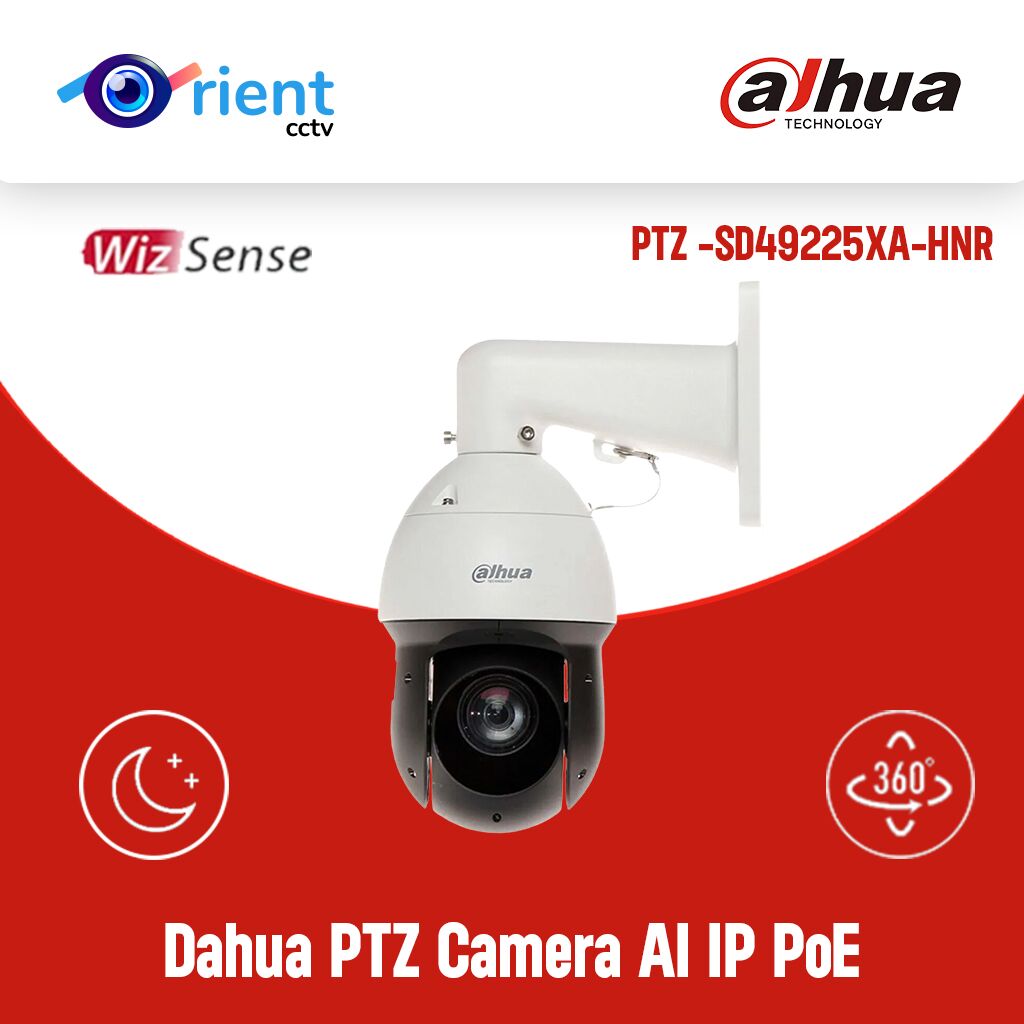

Dahua PTZ Camera AI IP PoE IR 100M 2MP Starlight Dome PTZ -SD49225XA-HNR

1/2.8” 2Megapixel CMOS

· Powerful 25x optical zoom

· Starlight technology

· Max. 50/60fps@1080P

· Perimeter protection

· Support PoE+

· IR distance up to 100m

· SMD Plus

· IP66

LONG DESCRIPTION

Camera

Image Sensor 1/2.8" STARVIS™ CMOS

Pixel 2MP

Max. Resolution 1920 (H) × 1080 (V)

ROM 4GB

RAM 1GB

Electronic Shutter Speed 1/1 s–1/30,000 s

Scanning System Progressive

Min. Illumination Color: 0.005Lux@F1.6

B/W: 0.0005Lux@F1.6

0Lux@F1.6 (IR light on)

Illumination Distance 100 m (328.08 ft)

Illuminator On/Off Control Zoom Prio/Manual/SmartIR

Illuminator Number 6

Lens

Focal Length 4.8 mm–120 mm

Max. Aperture F1.6–F4.4

Field of View H: 62.8°–2.6°; V: 33.2°–1.7°; D: 67.3°–3.9°

Optical Zoom 25x

Focus Control Auto/Semi-Auto/Manual

Close Focus Distance 0.1 m–1.5 m (0.33 ft–4.92 ft)

Iris Control Auto/Manual

DORI Distance Detect Observe Recognize Identify

1613 m (5291.99 ft) 646 m (2119.42 ft) 323 m (1059.71 ft) 161 m (528.22 ft)

PTZ

Pan/Tilt Range Pan: 0°–360° (endless)

Tilt: -15°–90° (auto flip 180°)

Manual Control Speed Pan: 0.1°–200°/s

Tilt: 0.1°–120°/s

Preset Speed Pan: 240°/s

Tilt: 200°/s

Presets 300

Tour 8 (up to 32 presets per tour)

Pattern 5

Scan 5

Speed Adjustment Support

Power-off Memory Support

Idle Motion Preset/Tour/Pattern/Scanning

Protocol DH-SD

Pelco-P/D (auto recognition)

General Intelligence

Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly

IVS Object Abandoned/Missing

Artificial Intelligence

Perimeter Protection Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

SMD PLUS Support

Face Detection Support

Smart Capture Support human, motor vehicle and non-motor vehicle image capture.

Video

Compression H.265+/H.265/H.264+/H.264/MJPEG (sub stream)

Streaming Capability 3 streams

Resolution 1080P (1920 × 1080); 1.3 M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Frame Rate Main stream: 1080P/1.3 M/720P (1–50/60fps)

Sub stream 1: D1/CIF (1–25/30fps)

Sub stream 2: 1080P/1.3M/720P/D1/CIF (1–25/30fps)

Bit Rate Control Variable/Constant

Bit Rate H.265/H.264: 3 kbps–20480 kbps

Day/Night Auto(ICR)/Color/B/W

BLC Support

WDR 120 dB

HLC Support

White Balance Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp

Gain Control Auto/Manual

Noise Reduction Ultra DNR (2D/3D)

Motion Detection Support

Region of Interest (RoI) Support

Image Stabilization Electronic

Defog Electronic

Digital Zoom 16x

Flip 180°

Privacy Masking Up to 24 areas, and up to 8 areas in the same view

Audio

Compression G.711a; G.711Mu; AAC; G.722.1; G.726; MPEG2-Layer2; G.729

Network

Ethernet RJ-45 (10/100Base-T)

Protocol IPv4; IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x

Interoperability ONVIF Profile S&G&T; CGI

Streaming Method Unicast/Multicast

User/Host 19

Storage NAS; Local PC; Micro SD card (256G)

Browser IE7 and newer versions

Chrome 45 and newer versions

Firefox 52 and earlier versions

Safari (no version restrictions)

Management Software Smart PSS; DSS; DMSS

Mobile Phone IOS/Android

Certification

Certifications CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB, ANSI C63.4-2014

UL: UL62368-1+CAN/CSA C22.2,No. 62368-1

Port

Audio Input 1

Audio Output 1

Alarm I/O 2/1

Power

Power Supply DC 12V/3A

PoE+ (802.3at)

Power Consumption 13W

22W (IR on)

Environment

Operating Temperature -40°C to +70°C (-40°F to +158°F)

Operating Humidity ≤95%

Protection IP66; TVS 6000V lightning proof; Surge protection

Structure

Dimensions Φ160 mm × 295 mm (6.30" × 11.61")

Net Weight 3 kg (6.61 lb)

Gross Weight 4.8kg (10.58lb)
