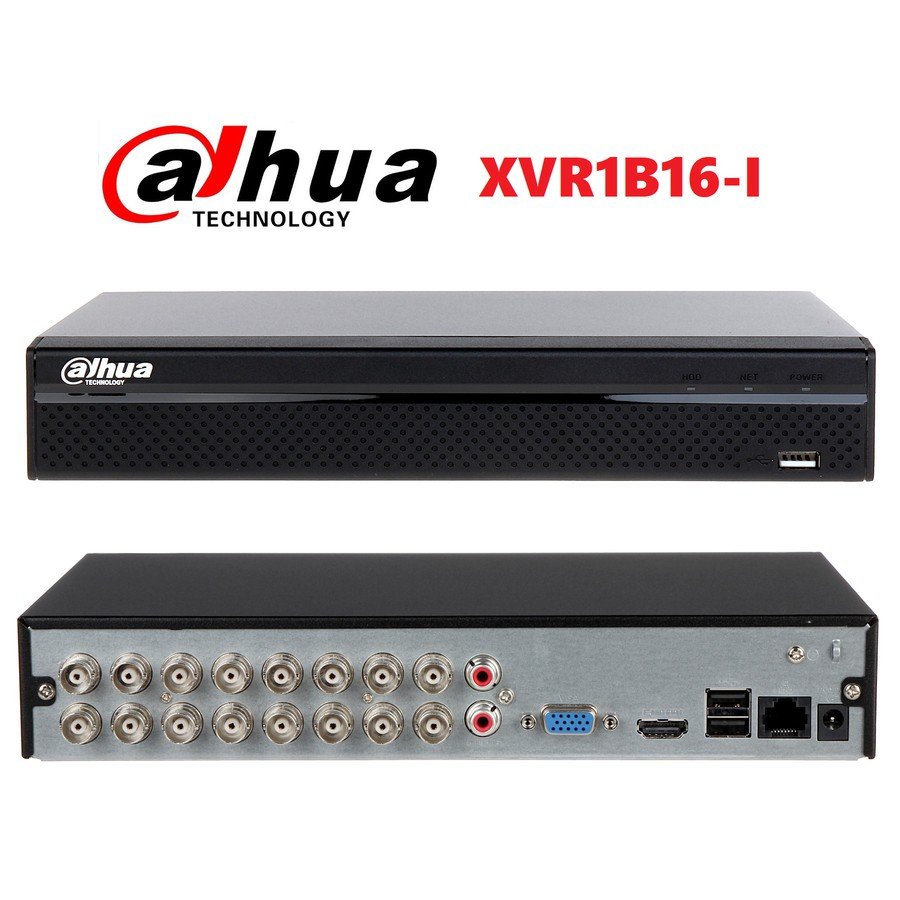

Dahua XVR1B16-I – 16 Channel 1080N/720p Penta-brid DVR with Smart H.264+ Compression | 1-Year Warranty
Dahua XVR1B16-I is a 16-channel Penta-brid DVR supporting HD-CVI, AHD, TVI, CVBS, and IP cameras. It offers 1080N/720p real-time recording, Smart H.264+ compression, and remote access via the Dahua DMSS app. Perfect for shops, offices, or large homes in Pakistan. Backed by a 1-year official warranty.
Delivery in 3 Working Days
14 Days Seller Return Warranty
₨ 20,838
Last chance! Sale ends in
05
Hours
Hours
32
Min
Min
02
Sec
Sec
Guaranteed Safe Checkout
Description
Dahua XVR1B16-I – 16 Channel Penta-brid DVR (1080N/720p) – Reliable Surveillance for Growing Setups
The Dahua XVR1B16-I is designed for users who want flexible, high-performance video recording. Supporting five camera types (HDCVI, AHD, TVI, CVBS, and IP), this DVR makes it easy to upgrade legacy CCTV systems without replacing all cameras.
🔹 Key Features:
✅ Supports 16 Channels (BNC)
Supports analog (HDCVI/AHD/TVI/CVBS) and up to 2 additional IP channels (max 18 total).
✅ Smart H.264+ Video Compression
Saves up to 50% on bandwidth and storage compared to standard H.264.
✅ Real-Time 1080N / 720p Recording
View smooth and clear footage on each channel.
✅ 1 SATA Port (Up to 6TB HDD Supported)
Plenty of storage for continuous video backup. Not included in Package
✅ Mobile Viewing via Dahua DMSS App
Remote live view, playback, and notifications straight from your smartphone.
✅ Multiple Outputs: HDMI / VGA
Flexible output options for TVs or monitors.
✅ Backup via USB or Network
Quick data export to USB drive or over LAN.
✅ 1 Year Official Warranty in Pakistan
Peace of mind with reliable Dahua support.

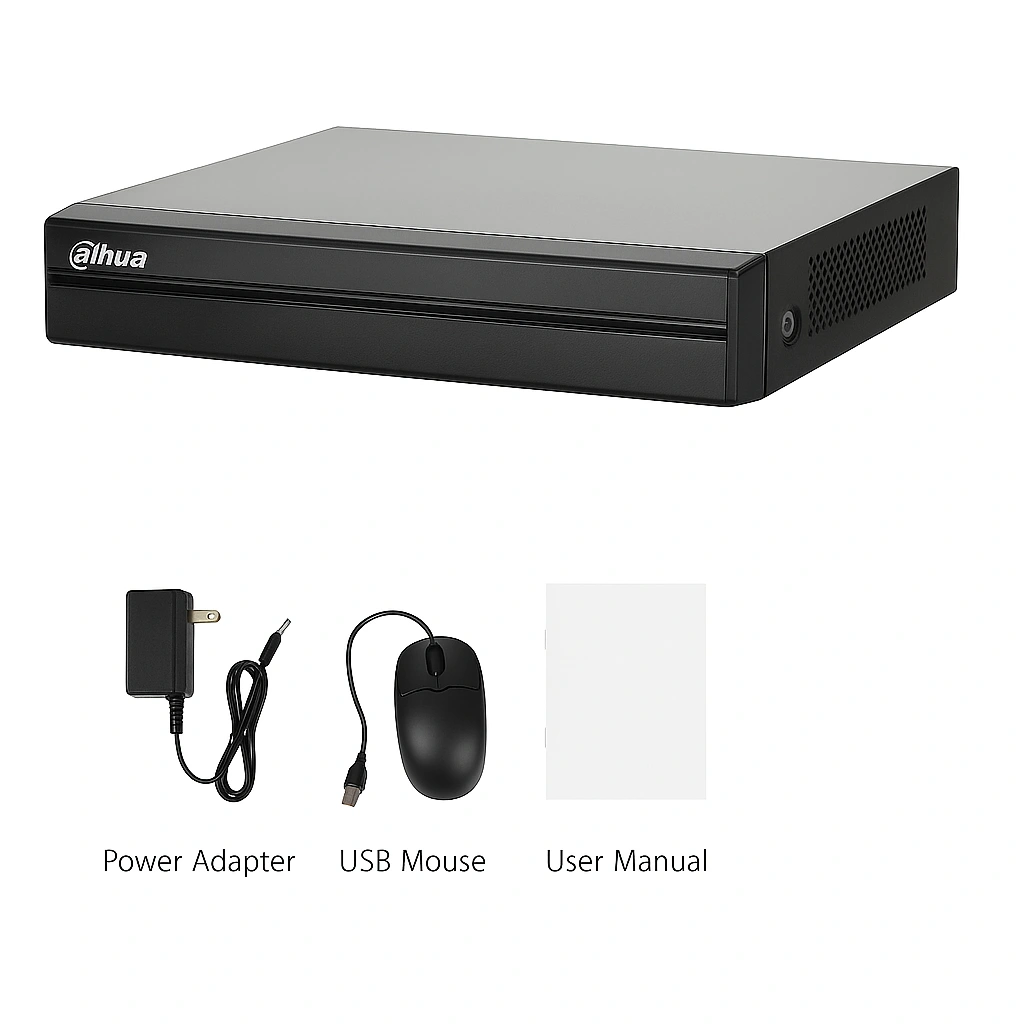

📦 What’s in the Box:
-
1× Dahua XVR1B16-I DVR Unit
-
1× Power Adapter
-
1× USB Mouse
-
1× User Manual
-
1× Warranty Card (1-Year Valid in Pakistan)
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Industrial-grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface |
Web; Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Recorder |
8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog Camera Input |
16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera Input |
1. CVI: 1080p@25/30 fps; 720p@25/30 fps. 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 1080p@25/30 fps; 720p@25/30 fps. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Camera Input |
Up to 18 channels of IPC access 2 IP channels by default + 16 channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP extension is enabled, the AI Function (SMD) will be disabled. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encoding Capacity |
Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–7 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dual-stream |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
32 kbps–4096 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Sampling |
8 kHz, 16 bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate |
64 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output |
1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Display |
When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third-party Camera Access |
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression Standard |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711a; G.711u; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone Access |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
Chrome; IE; Safari; Edge; Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode |
General; alarm; motion detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
1/4/9/16 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Method |
USB device and network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Mode |
Instant playback; general playback; event playback; tag playback; smart playback |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm |
Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anomaly Alarm |
Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Alarm |
SMD Plus |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ports |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1-channel RCA 16-channel BNC (Coaxial Audio) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1-channel RCA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Two-way Talk |
Yes (share the same audio input with the first channel) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Disk Interface |
1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
2 (2 rear USB 2.0 ports) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1 (10/100 Mbps Ethernet port, RJ-45) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12 VDC, 2 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
<10 W (without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.89 kg (1.96 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1.42 kg (3.13 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
260.0 mm × 229.6 mm × 47.6 mm (10.24" × 9.04" × 1.87") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × 12.40") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +45 °C (+14 °F to +113 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Desktop |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 FCC: 47 CFR Part 15, Subpart B |
