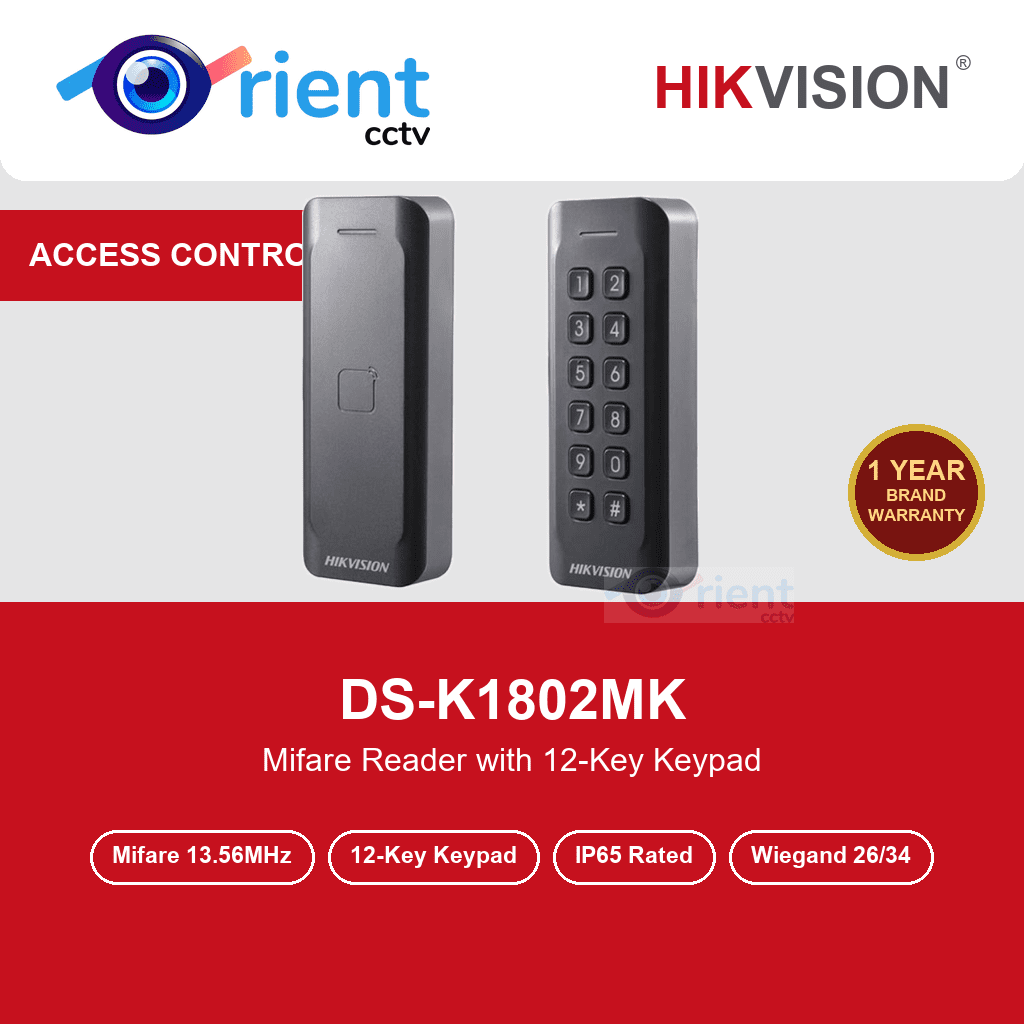

HIKVISION DS-K1802MK Mifare Card Reader with Keypad | 13.56MHz | Wiegand 26/34 | IP65 Weatherproof
- Reads Mifare cards (ISO 14443-A, 13.56 MHz) with a 12-key PIN keypad
- Wiegand W26/W34 output connects to any access control panel
- IP65 weatherproof, -20°C to +65°C — fits indoor and outdoor doors
- Watchdog self-repair design plus power and status LEDs with buzzer
- 1 Year Brand Warranty, COD available in Pakistan
₨ 6,600
Last chance! Sale ends in
00
Days
Days
00
Hours
Hours
00
Min
Min
00
Sec
Sec
Description
HIKVISION DS-K1802MK Mifare Card Reader with Keypad — Mifare Reader with 12-Key Keypad
Reads Mifare cards (ISO 14443-A, 13.56 MHz) with a 12-key PIN keypad. Wiegand W26/W34 output connects to any access control panel.
Key Features
- Reads Mifare cards (ISO 14443-A, 13.56 MHz) with a 12-key PIN keypad
- Wiegand W26/W34 output connects to any access control panel
- IP65 weatherproof, -20°C to +65°C — fits indoor and outdoor doors
- Watchdog self-repair design plus power and status LEDs with buzzer
- 1 Year Brand Warranty, COD available in Pakistan
Specifications
| Model | DS-K1802MK |
| Card Type | Mifare (M1), ISO 14443-A |
| Frequency | 13.56 MHz |
| Keypad | 12 keys (0–9, *, #) |
| Output | Wiegand W26 / W34 |
| Reading Range | ≤5 cm |
| Power | 12 VDC, ≤2 W |
| Protection | IP65 |
| Dimensions | 115.9 × 43.3 × 17 mm |
| Working Temp | -20°C to +65°C |
| Installation | Wall mounting |
Why Buy from Orient CCTV?
- 1 Year Hikvision Brand Warranty — genuine units with official warranty
- Cash on Delivery available all over Pakistan
- Expert configuration support on WhatsApp — free setup help
- Main Hall Road, Lahore — trusted CCTV & security supplier, thousands of installations
