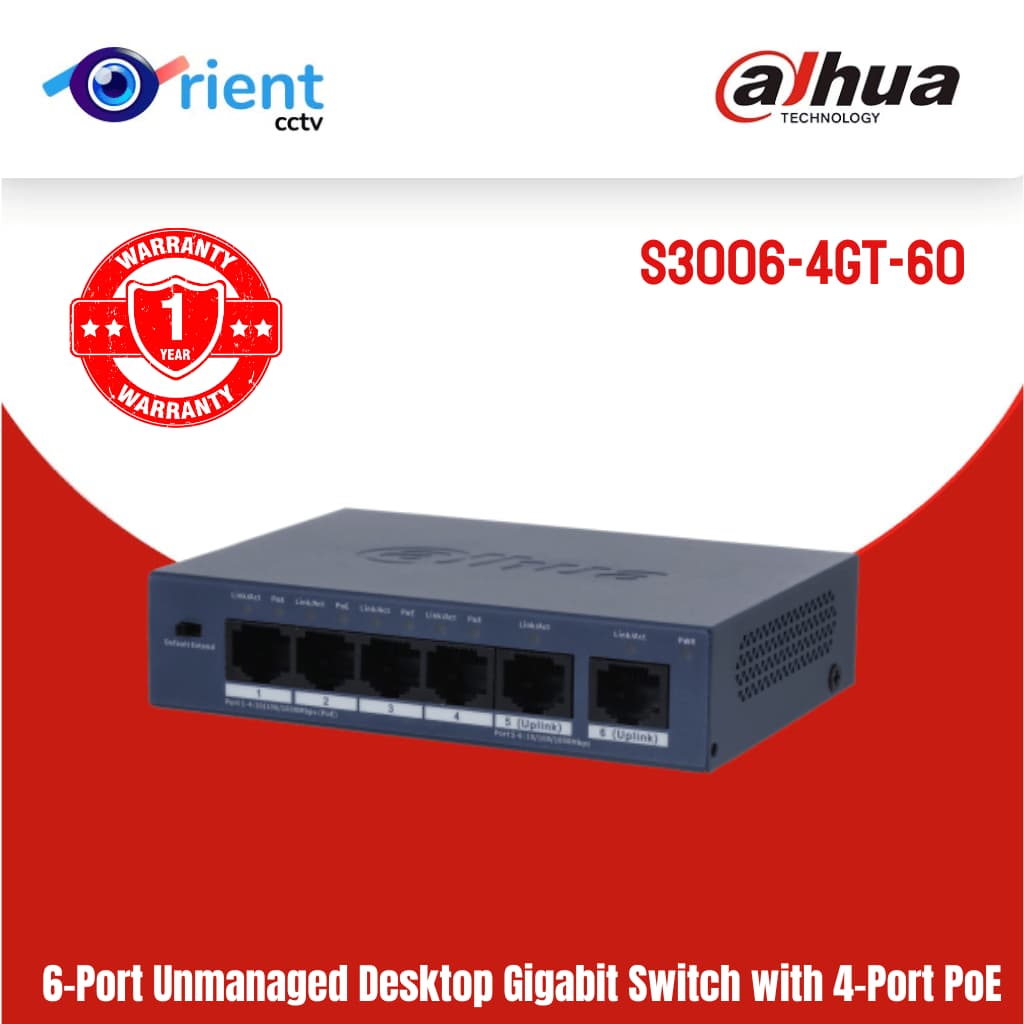

Dahua S3006-4GT-60 Gigabit PoE Network Switch with 4 PoE Ports & 2 Uplink Ports
- 4-Port Gigabit PoE + 2 Uplink Gigabit Ports
- Total PoE power up to 60W
- Supports IEEE 802.3af/at standards
- Long-distance transmission up to 250m
- Strong metal casing for durability
- Fanless silent operation
- Ideal for CCTV surveillance systems
Best For:
- CCTV camera installations
- Small offices and shops
- Homes and warehouses
- Security system networking
₨ 9,900
Last chance! Sale ends in
Days
Hours
Min
Sec
Description
The Dahua S3006-4GT-60 6-Port Gigabit PoE Switch is a reliable and cost-effective networking solution designed for CCTV surveillance systems, offices, shops, and small to medium business networks in Pakistan.
This unmanaged switch comes with 4 Gigabit PoE ports and 2 Gigabit uplink ports, allowing you to easily connect IP cameras, NVRs, and other network devices without needing extra power adapters. It supports IEEE 802.3af/at PoE standards, ensuring stable power delivery to connected cameras and devices.
With a total PoE power budget up to 60W, it can efficiently run multiple CCTV cameras at the same time, making it ideal for security setups in homes, warehouses, retail stores, schools, and offices.
The S3006-4GT-60 also supports long-distance PoE transmission up to 250 meters, which is perfect for large buildings or outdoor camera installations commonly used in Pakistani environments where wiring distances can be long.
Built with a strong metal body and fanless design, it ensures better heat dissipation and stable performance even in hot weather conditions. Its plug-and-play setup makes installation simple, requiring no technical configuration.
-
Selettore Prodotti
Basic
Layer
Unmanaged
Switching Capacity
12 Gbps
Packet Forwarding Rate
8.928 Mpps
Description of Function Slots
Port 1-4: 4 × RJ45 10/100/1000 Mbps (PoE)
Port 5-6: 2 × RJ45 10/100/1000 Mbps (Uplink)Operating Temperature
–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
10%–90% (RH), non-condensing
Storage Temperature
–40 °C to +75 °C (–40 °F to +167 °F)
Storage Humidity
5%–95% (RH), non-condensing
Power Supply
External power supply: 53 V, 50/60 Hz, max 1.22 A
Power Consumption
Idling: 2 W
Full load: 64.7 WStatics Protection
Air discharge: 8 kV
Contact discharge: 6 kVLightning Protection
Common mode: 6 kV
Differential mode: 1 kVNet Weight
0.2 kg (0.44 lb)
Gross Weight
0.681 kg (1.50 lb)
Product Dimensions
115.5 mm × 84.3 mm × 27 mm (4.55" × 3.32" × 1.06") (L × W × H)
Packaging Dimensions
196 mm × 115 mm × 85 mm (7.72" × 4.53" × 3.35") (L × W × H)
Casing Material
Sheet Metal
Installation
Desktop mount; wall mount
Certifications
CE
PoE
PoE
Yes
PoE Power
Port 1-4≤30 W, total≤60 W
PoE Protocol
IEEE 802.3af; IEEE 802.3at
PoE Pin Assignment
1,2,4,5 (V+),3,6,7,8 (V-)
Long Distance PoE Transmission
Yes
Hardware
DIP Switch
Long Distance PoE: The transmission distance of ports 1–4 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.
Performance
Packet Buffer Size
1 Mbits
Jumbo Frame
9216 Byte
MAC Table Size
2K
Communication Standard
IEEE802.3; IEEE802.3u; IEEE802.3ab; IEEE802.3x
General
Packing List
1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
Additional information
| Weight | 1.5 kg |
|---|---|
| Dimensions | 7 × 4 × 9 cm |
