New

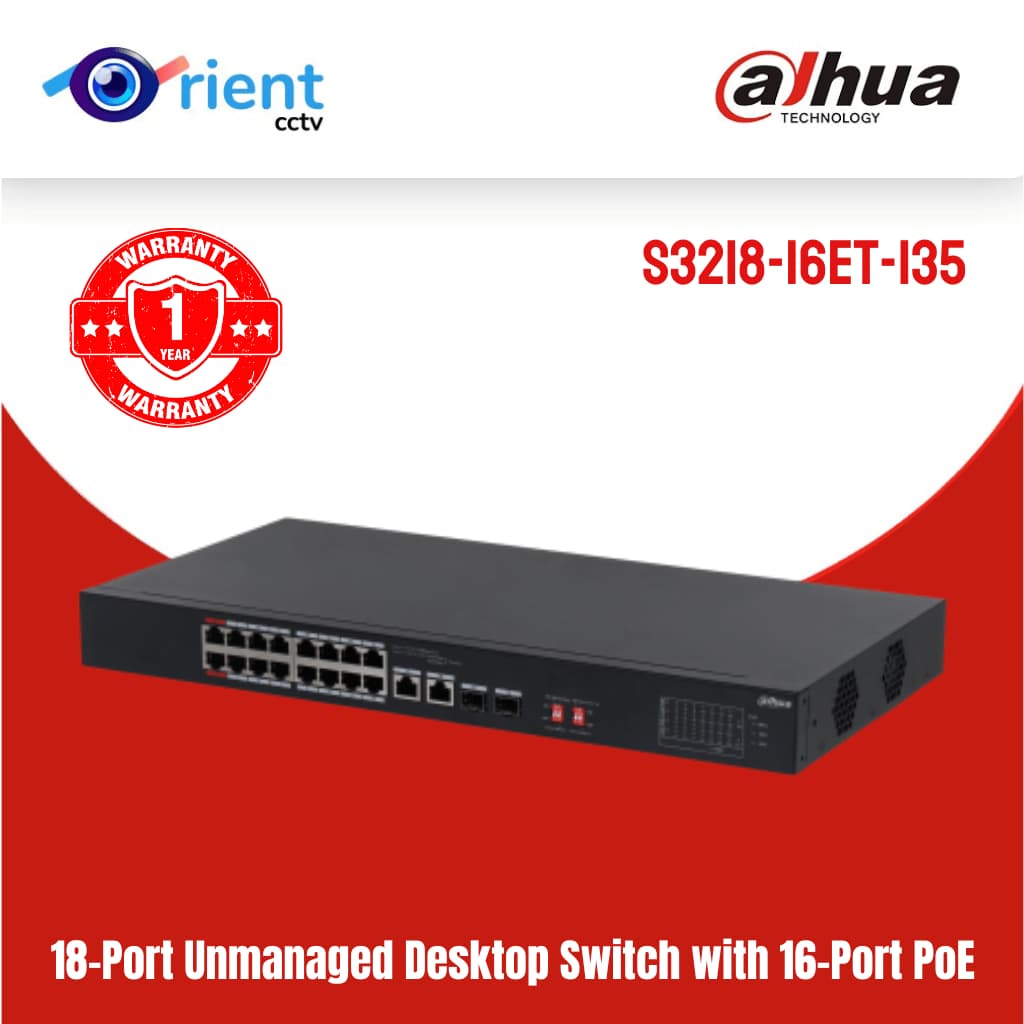

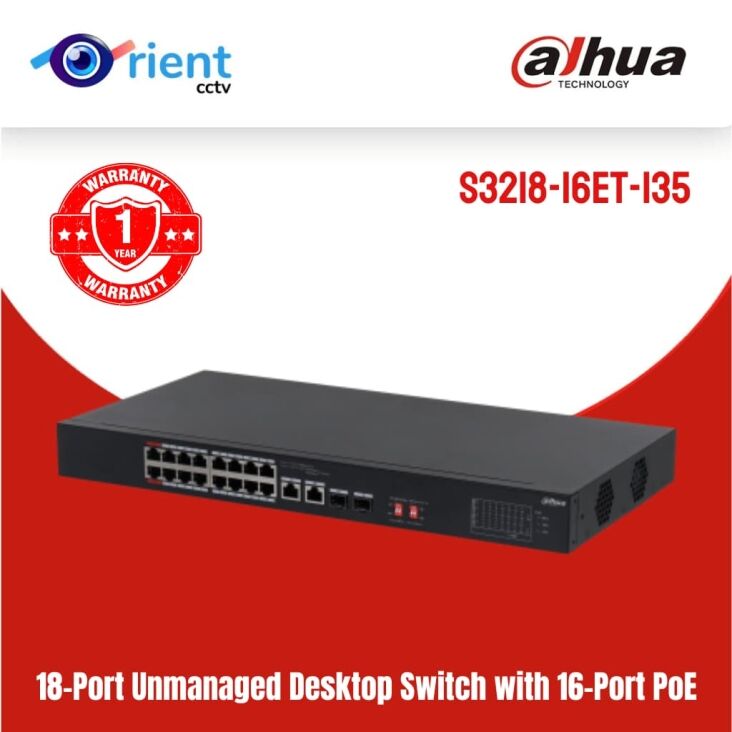

Dahua S3218-16ET-135 PoE Network Switch with 16 PoE Ports & 2 Uplink Ports

DAHUA

18-Port Unmanaged PoE Switch
16 × 10/100 Mbps PoE Ports
2 × 10/100 Mbps Uplink Ports
135W Total PoE Power Budget
Supports IEEE 802.3af/at PoE Standards
Up to 30W Power Output Per PoE Port
Long-Distance PoE Transmission up to 250m
Plug & Play Installation – No Configuration Required
Intelligent PoE Power Management
Industrial-Grade Metal Housing
Fanless Silent Operation
Built-in Surge and Lightning Protection
Stable 24/7 Performance
Desktop, Rack-Mount, and Wall-Mount Installation Options

Ideal Applications

CCTV Surveillance Systems
IP Camera Networks
NVR Security Installations
Offices and Corporate Buildings
Schools, Colleges, and Universities
Warehouses and Factories
Shopping Malls and Retail Stores
Hospitals and Healthcare Facilities
Hotels and Commercial Buildings
Large Residential Projects

₨ 34,000

Compare

Add to wishlist

Last chance! Sale ends in

00
Days

00
Hours

00
Min

00
Sec

Description

The Dahua S3218-16ET-135 is a high-performance 18-port unmanaged PoE switch designed for professional CCTV surveillance systems, IP camera deployments, offices, warehouses, schools, retail stores, and commercial networks across Pakistan. Equipped with 16 PoE ports and 2 uplink ports, this switch delivers both power and data through a single Ethernet cable, making installation faster, cleaner, and more cost-effective.

With a powerful 135W PoE budget, the S3218-16ET-135 can efficiently support multiple IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices simultaneously. Its extended transmission mode allows data and power transmission up to 250 meters, making it ideal for large-scale surveillance projects where cameras are installed at long distances from the control room.

Built with a durable industrial-grade metal housing, the switch ensures reliable operation even in demanding environments. The fanless design provides silent performance while maintaining effective heat dissipation for continuous 24/7 operation. Featuring intelligent PoE management and surge protection, the switch safeguards connected devices against power fluctuations and network issues.

製品選択

Hardware Feature

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

16

Ethernet Port Speed

10/100 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port 1-16: 16 × RJ-45 10/100 Mbps;
Port 17-18: 2 × RJ-45 10/100/1000 Mbps (Combo);
Port 17-18: 2 × SFP 1000 Mbps (Combo)

Power Supply

Built-in power supply: 100-240 VAC, 50/60 Hz, 3 A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Storage Temperature

–40 °C to +75 °C (–40 °F to +167 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Consumption

Idling: ≤6 W ; Full load: 154 W

Performance

Management Type

No

Switching Capacity

7.2 Gbps

Packet Forwarding Rate

5.36 Mpps

Packet Buffer Size

4 Mbit

Jumbo Frame

15K Byte

MAC Table Size

8 K

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z

Feature

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power

Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 135 W

PoE Pin Assignment

1,2,4,5 (V+),3,6,7,8 (V-)

Long Distance PoE Transmission

Yes

General

Statics Protection

Air discharge: 8 kV; Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV; Differential mode: 2 kV

Net Weight

2.23 kg (4.92 lb)

Gross Weight

2.88 kg (6.35 lb)

Product Dimensions

440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H)

Packaging Dimensions

540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H)

Casing Material

Sheet metal

Installation

Rack mount;Desktop mount

Certifications

CE

Transmission Performance:
Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m)	Load Capacity(W)	Bandwidth(Mbps)
IEEE802.3bt 90 W
100	71.3	100
150	62	10
200	51	10
250	40	10
Hi-PoE 60 W
100	53	100
150	50	10
200	47	10
250	37	10
IEEE802.3at 30 W
100	25.5	100
150	25.5	10
200	25.5	10
250	25.5	10
