HIKVISION DS-K4H258S Magnetic Lock | 280kg (617lbs) Holding Force | Single Door | LED Status Indicator
- 280 kg (617 lbs) static holding force secures wood, glass and steel doors
- Anti-residual magnetism design releases instantly on unlock
- LED indicator shows live door-lock status at a glance
- Built-in MOV surge protection; 12 or 24 VDC operation (12 V default)
- 1 Year Brand Warranty with COD in Pakistan
₨ 6,600
Last chance! Sale ends in
00
Days
Days
00
Hours
Hours
00
Min
Min
00
Sec
Sec
Description

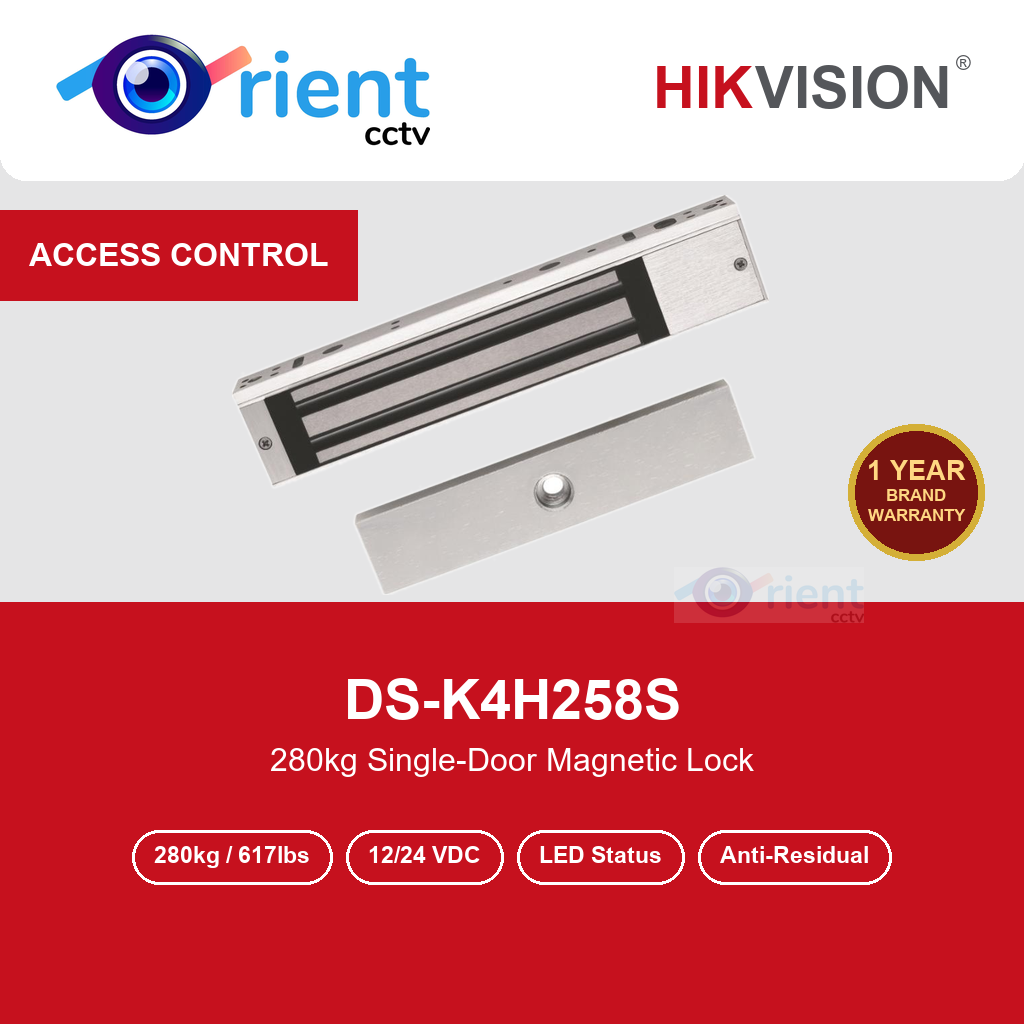

HIKVISION DS-K4H258S Magnetic Lock — 280kg Single-Door Magnetic Lock
280 kg (617 lbs) static holding force secures wood, glass and steel doors. Anti-residual magnetism design releases instantly on unlock.
Key Features
- 280 kg (617 lbs) static holding force secures wood, glass and steel doors
- Anti-residual magnetism design releases instantly on unlock
- LED indicator shows live door-lock status at a glance
- Built-in MOV surge protection; 12 or 24 VDC operation (12 V default)
- 1 Year Brand Warranty with COD in Pakistan
Specifications
| Model | DS-K4H258S |
| Holding Force | 280 kg / 617 lbs |
| Door Types | Wooden, glass, steel (90° opening) |
| Power | 12 VDC / 24 VDC (default 12 V) |
| Working Current | 340 mA × 2 |
| Unlock Method | Current interruption (fail-safe) |
| Lock Body | 238 × 45 × 25 mm |
| Armature Plate | 182 × 38 × 12.5 mm |
| Weight | 2.1 kg |
| Working Temp | -10°C to 55°C, 0–95% RH |
Why Buy from Orient CCTV?
- 1 Year Hikvision Brand Warranty — genuine units with official warranty
- Cash on Delivery available all over Pakistan
- Expert configuration support on WhatsApp — free setup help
- Main Hall Road, Lahore — trusted CCTV & security supplier, thousands of installations
