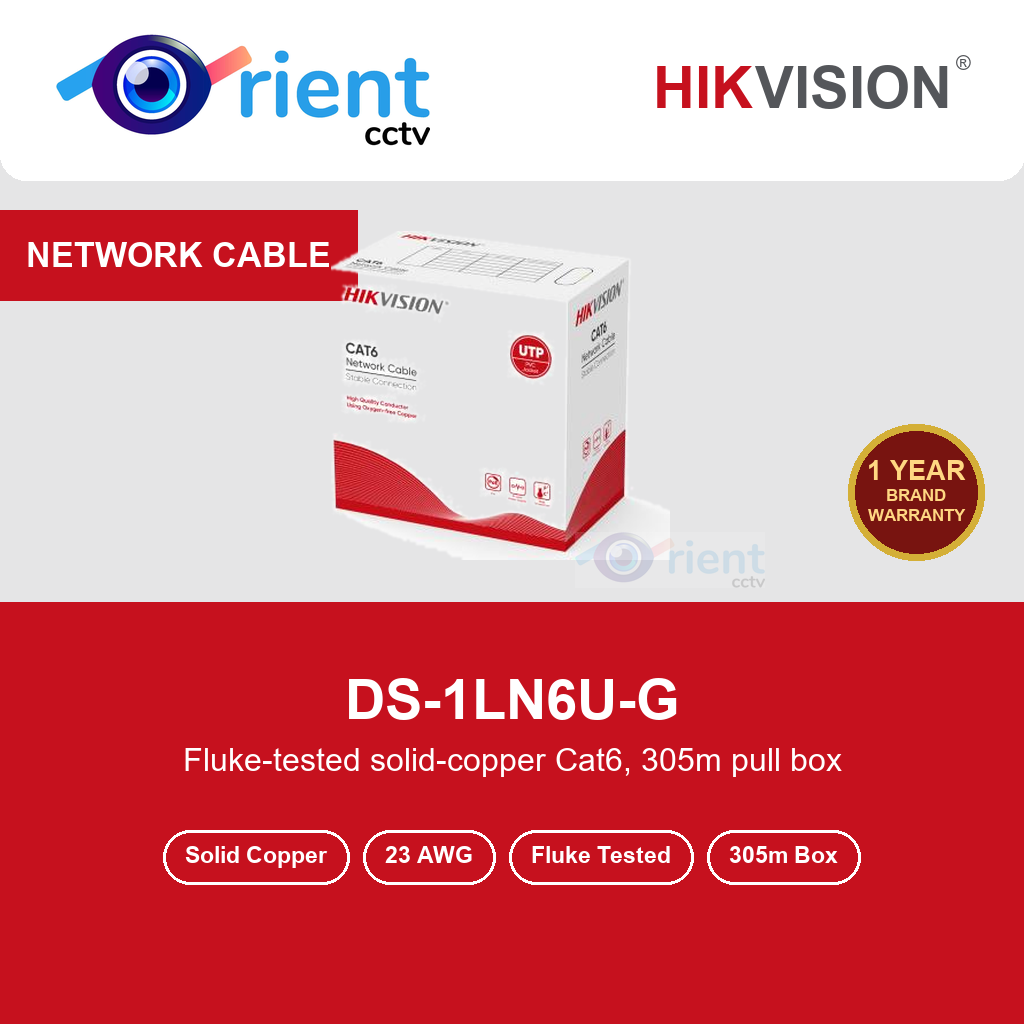

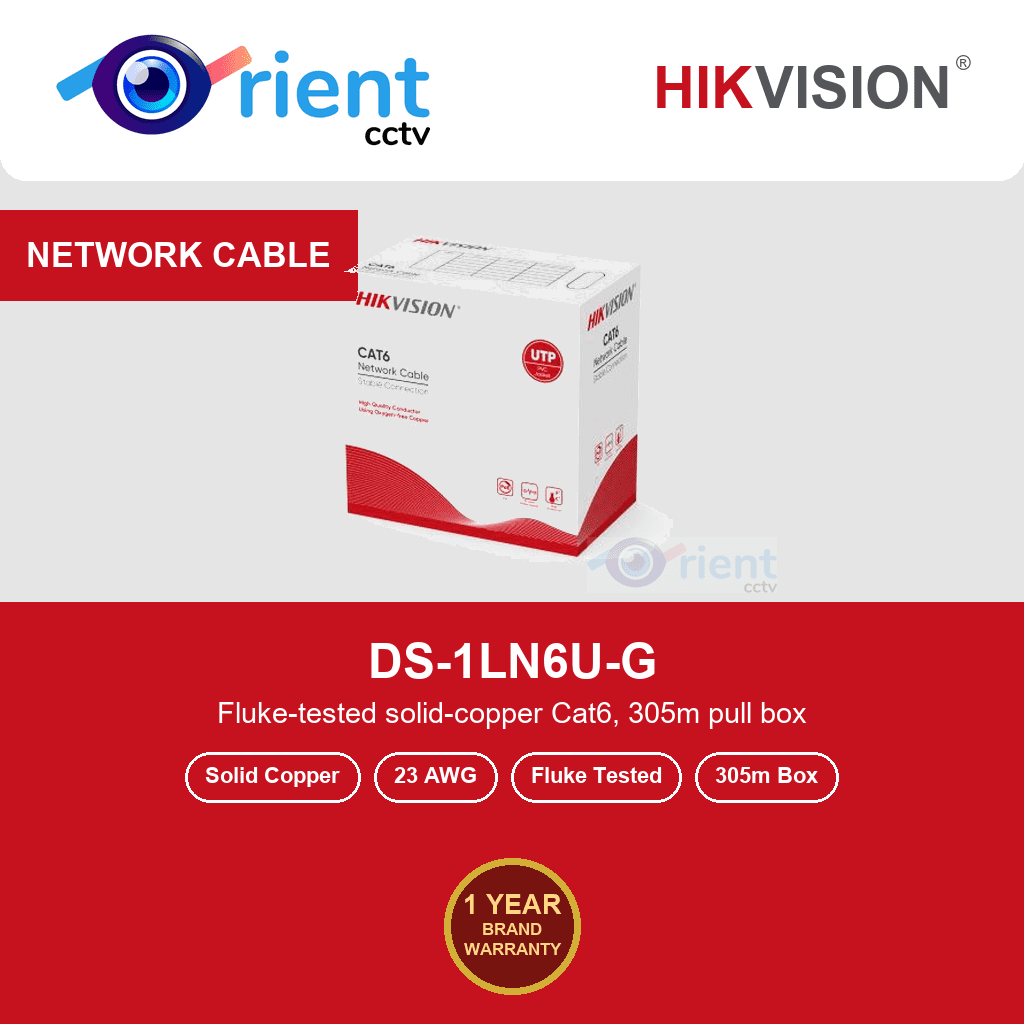

Hikvision DS-1LN6U-G Cat6 UTP Network Cable | 23 AWG Solid Pure Copper | Fluke Tested | 305m Box | Grey

Description

Hikvision DS-1LN6U-G Cat6 UTP Network Cable — Fluke-tested solid-copper Cat6, 305m pull box

99.95% solid bare copper conductors for clean gigabit signal and long PoE runs. Fluke-test verified to ANSI/TIA-568-C.2 and ISO/IEC 11801.

Key Features

• 99.95% solid bare copper conductors for clean gigabit signal and long PoE runs
• Fluke-test verified to ANSI/TIA-568-C.2 and ISO/IEC 11801
• 0.55 mm / 23 AWG cores with HDPE insulation and cross separator for low crosstalk
• Flame-resistant PVC sheath rated -20°C to 75°C ambient
• 305m boxed pull length — ideal for CCTV and structured cabling projects

Specifications

Model	DS-1LN6U-G
Category	Cat6 U/UTP
Conductor	Solid bare copper 99.95%, 0.55 mm (23 AWG)
Insulation	HDPE, 0.98 mm
Sheath	PVC, Grey, 6.0 mm OD
Length	305 m (±1.5 m) per box
Impedance	100 ±15 Ω @ ≤100 MHz
DC Resistance	≤9.38 Ω/100 m
Standards	ANSI/TIA-568-C.2, ISO/IEC 11801, RoHS 2.0
Ambient Temperature	-20°C to 75°C
