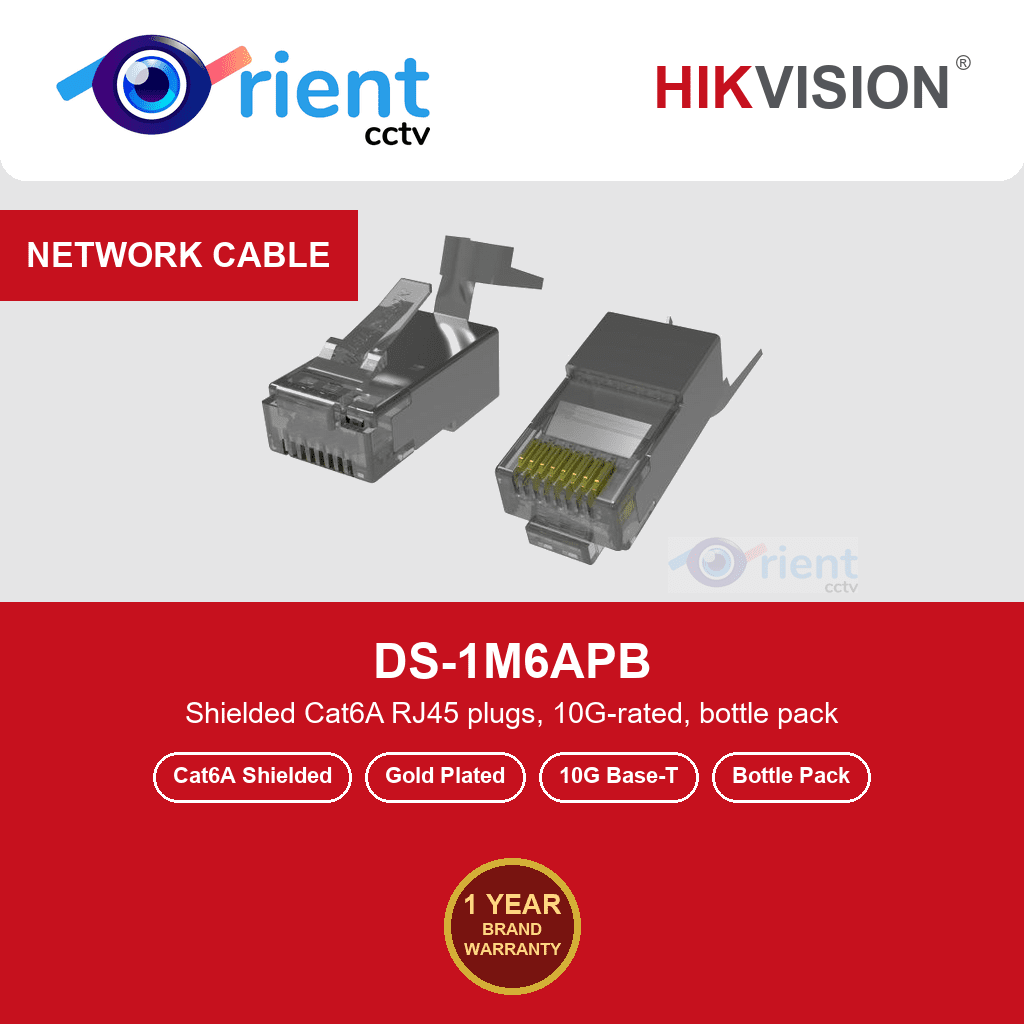

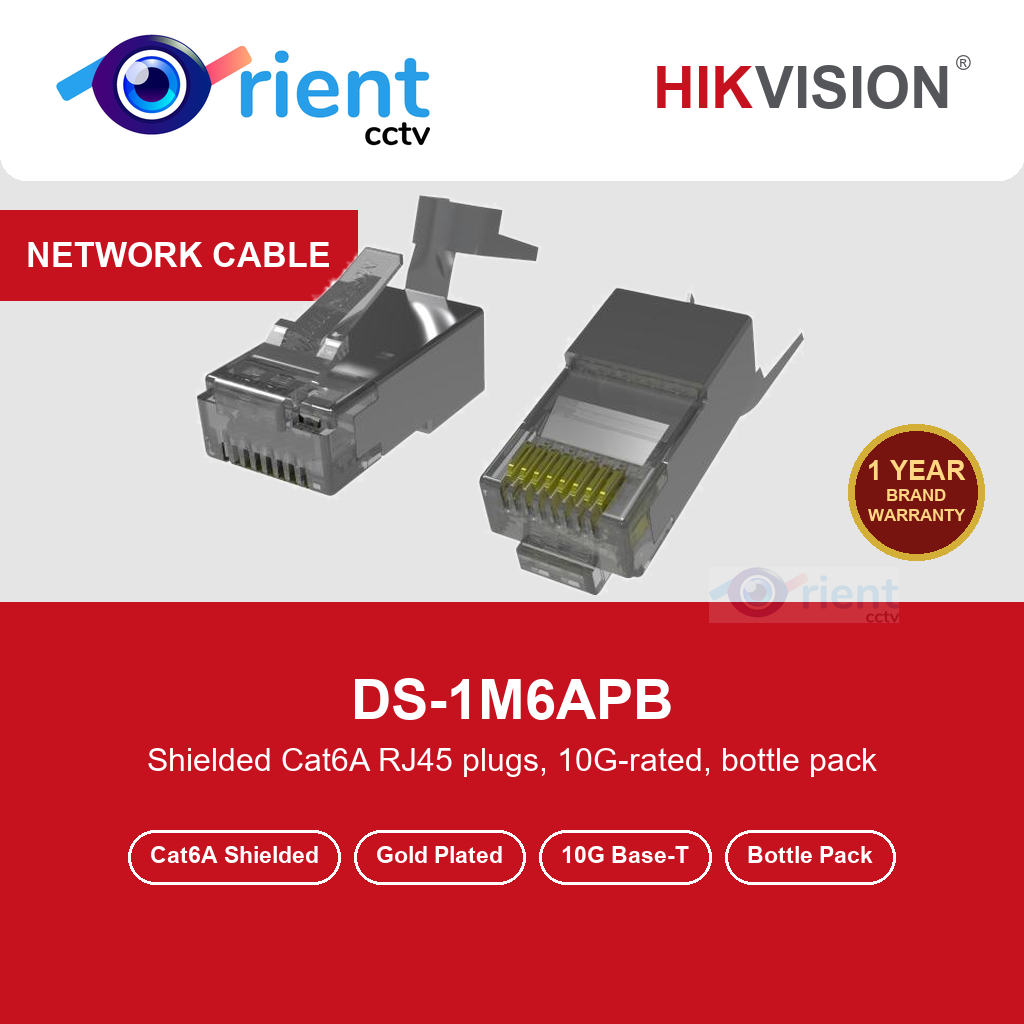

Hikvision DS-1M6APB Cat6A Shielded RJ45 Connector | 15µ Gold-Plated Contacts | 10G Base-T | Bottle Pack
- Fully shielded metal RJ45 plug keeps 10G Base-T links noise-free
- 15µ-inch gold-plated contacts resist corrosion for lasting connections
- Rated for 750+ insert/extraction cycles — built for professional installs
- 8P8C design terminates shielded Cat6A cable cleanly
- Contact resistance ≤20 mΩ for minimal signal loss
₨ 190
💵Cash on Delivery all over Pakistan
🚚Ships within 24 hours · delivered in 2–4 working days (TCS / PostEx)
🛵Lahore: our own rider delivers within 20 km of our shop; further areas by courier
💳Pay online (card / bank) and save 4%
🛡️1-year Hikvision brand warranty
🔁14-day return & replacement policy on every product
📞Setup help on WhatsApp in Urdu · Mon–Sat, 10:30 am – 7:30 pm (Sunday off)
Order on WhatsAppLast chance! Sale ends in
00
Days
Days
00
Hours
Hours
00
Min
Min
00
Sec
Sec
Description
Hikvision DS-1M6APB Cat6A Shielded RJ45 Connector — Shielded Cat6A RJ45 plugs, 10G-rated, bottle pack
Fully shielded metal RJ45 plug keeps 10G Base-T links noise-free. 15µ-inch gold-plated contacts resist corrosion for lasting connections.
Key Features
- Fully shielded metal RJ45 plug keeps 10G Base-T links noise-free
- 15µ-inch gold-plated contacts resist corrosion for lasting connections
- Rated for 750+ insert/extraction cycles — built for professional installs
- 8P8C design terminates shielded Cat6A cable cleanly
- Contact resistance ≤20 mΩ for minimal signal loss
Specifications
| Model | DS-1M6APB |
| Type | RJ45 plug, Cat6A shielded (8P8C) |
| Contacts | 15µ-inch gold plated |
| Ethernet Support | 10G Base-T |
| Max Current | 1.5 A @ 25°C |
| Insulation Resistance | ≥1000 MΩ @ 100 V DC |
| Contact Resistance | ≤20 mΩ |
| Durability | ≥750 plug cycles |
| Housing | Polycarbonate, UL94V-2 |
| Packaging | Bottle pack, 0.196 kg (50 pcs per dealer list) |
