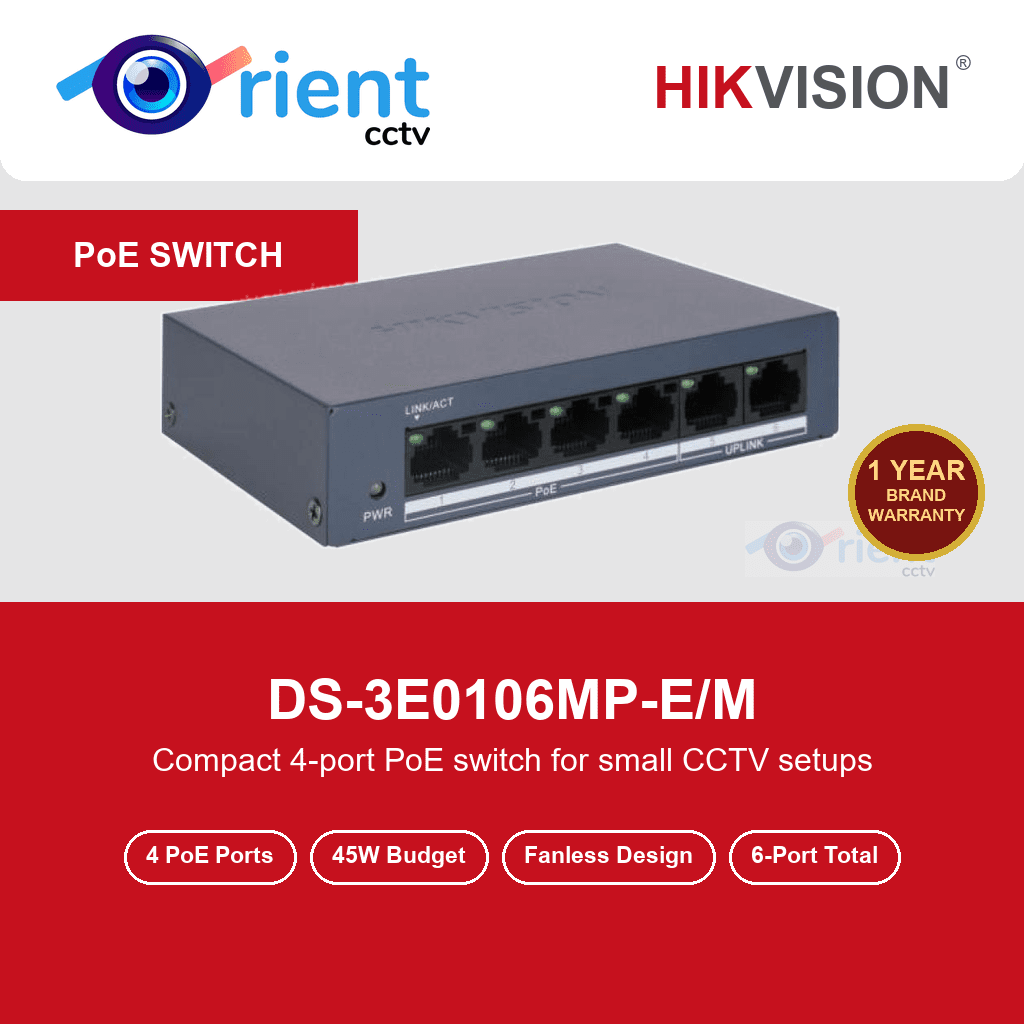

HIKVISION DS-3E0106MP-E/M 4 Port Fast Ethernet Unmanaged PoE Switch | 2 Uplink Ports | 45W PoE Budget | Fanless Metal Body

Description

HIKVISION DS-3E0106MP-E/M 4 Port Fast Ethernet Unmanaged PoE Switch — Compact 4-port PoE switch for small CCTV setups

Powers 4 IP cameras over a single cable each — no separate camera power supplies needed. 45 W total PoE budget runs a full 4-camera home or shop CCTV kit with headroom.

Key Features

• Powers 4 IP cameras over a single cable each — no separate camera power supplies needed
• 45 W total PoE budget runs a full 4-camera home or shop CCTV kit with headroom
• 2 extra 10/100 uplink ports connect your NVR and router at the same time
• Fanless solid-metal shell — silent, dust-proof and built for 24/7 operation
• Plug-and-play unmanaged design: no configuration, just connect and go

Specifications

Model	DS-3E0106MP-E/M
Ports	4 × 10/100 Mbps PoE + 2 × 10/100 Mbps RJ45 uplink
PoE Standard	IEEE 802.3af/at (Ports 1–4)
PoE Budget	45 W
Switching Capacity	1.2 Gbps
Packet Forwarding	0.89 Mpps
MAC Table	2 K
Power Input	48 VDC / 1.04 A (Max. 50 W)
Surge Protection	2 kV
Mounting	Desktop / Wall-mount
Dimensions	121.1 × 27.6 × 83.1 mm, fanless
