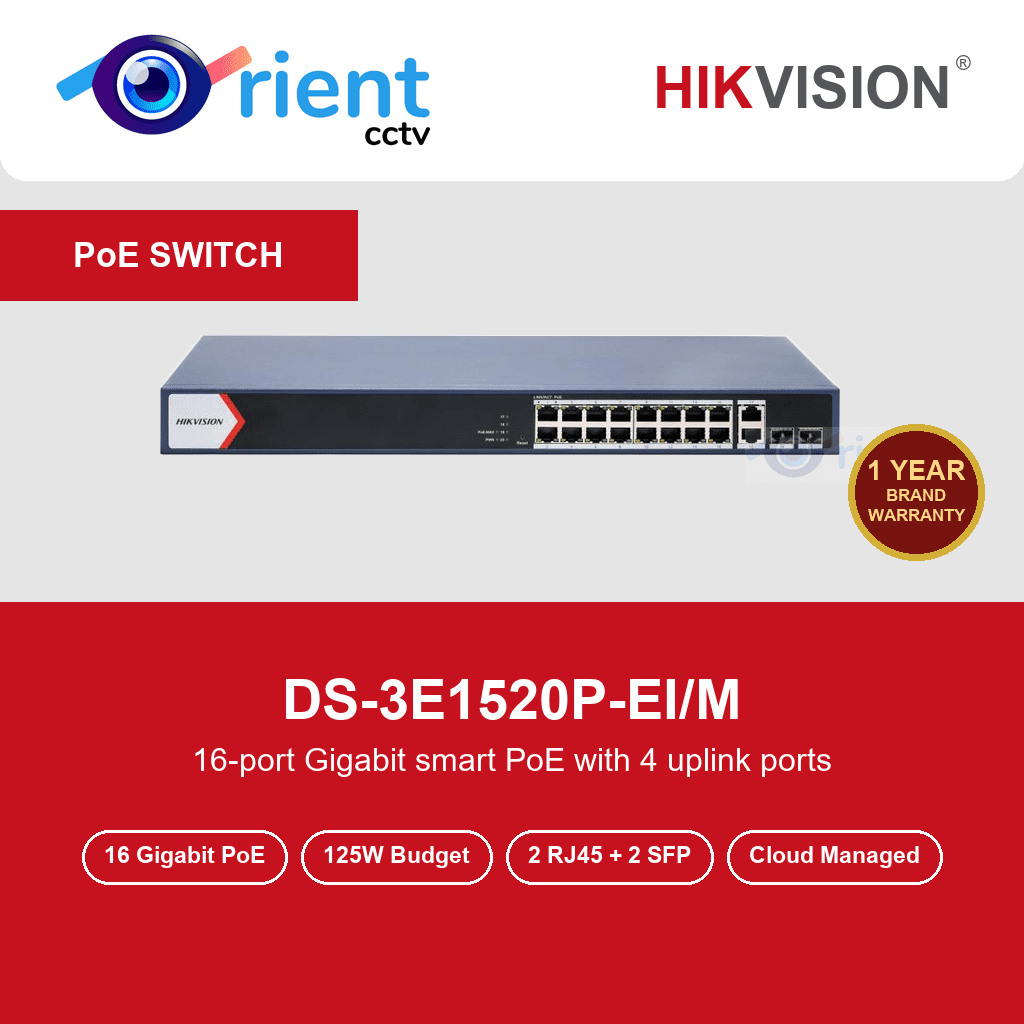

HIKVISION DS-3E1520P-EI/M 16 Port Gigabit Smart PoE Switch | 2 Gigabit Uplinks + 2 SFP | 125W | 300m Extend Mode

Description

HIKVISION DS-3E1520P-EI/M 16 Port Gigabit Smart PoE Switch — 16-port Gigabit smart PoE with 4 uplink ports

16 full-Gigabit PoE ports handle 4K/8MP camera fleets without breaking a sweat. 68 Gbps switching capacity — every port runs at wire speed simultaneously.

Key Features

• 16 full-Gigabit PoE ports handle 4K/8MP camera fleets without breaking a sweat
• 68 Gbps switching capacity — every port runs at wire speed simultaneously
• 4 uplinks (2 × Gigabit RJ45 + 2 × SFP fiber) for NVR, router and fiber backbone
• 300 m extend mode plus PoE watchdog keeps distant cameras alive automatically
• Visual topology, remote troubleshooting and cloud control via Hik-Partner Pro

Specifications

Model	DS-3E1520P-EI/M
Ports	16 × Gigabit PoE + 2 × Gigabit RJ45 + 2 × Gigabit SFP
PoE Standard	IEEE 802.3af/at, Max. 30 W/port
PoE Budget	125 W
Extend Mode	Ports 1–16 up to 300 m
Switching Capacity	68 Gbps
Packet Forwarding	50.59 Mpps
MAC Table	16 K
Power Input	100–240 VAC, 50/60 Hz (Max. 150 W)
Surge Protection	6 kV
Mounting	19″ Rack, 440 × 44 × 220.8 mm

Why Buy from Orient CCTV?

• 1 Year Hikvision Brand Warranty — genuine units with official warranty
• Cash on Delivery available all over Pakistan
• Expert configuration support on WhatsApp — free setup help
• Main Hall Road, Lahore — trusted CCTV & security supplier, thousands of installations
