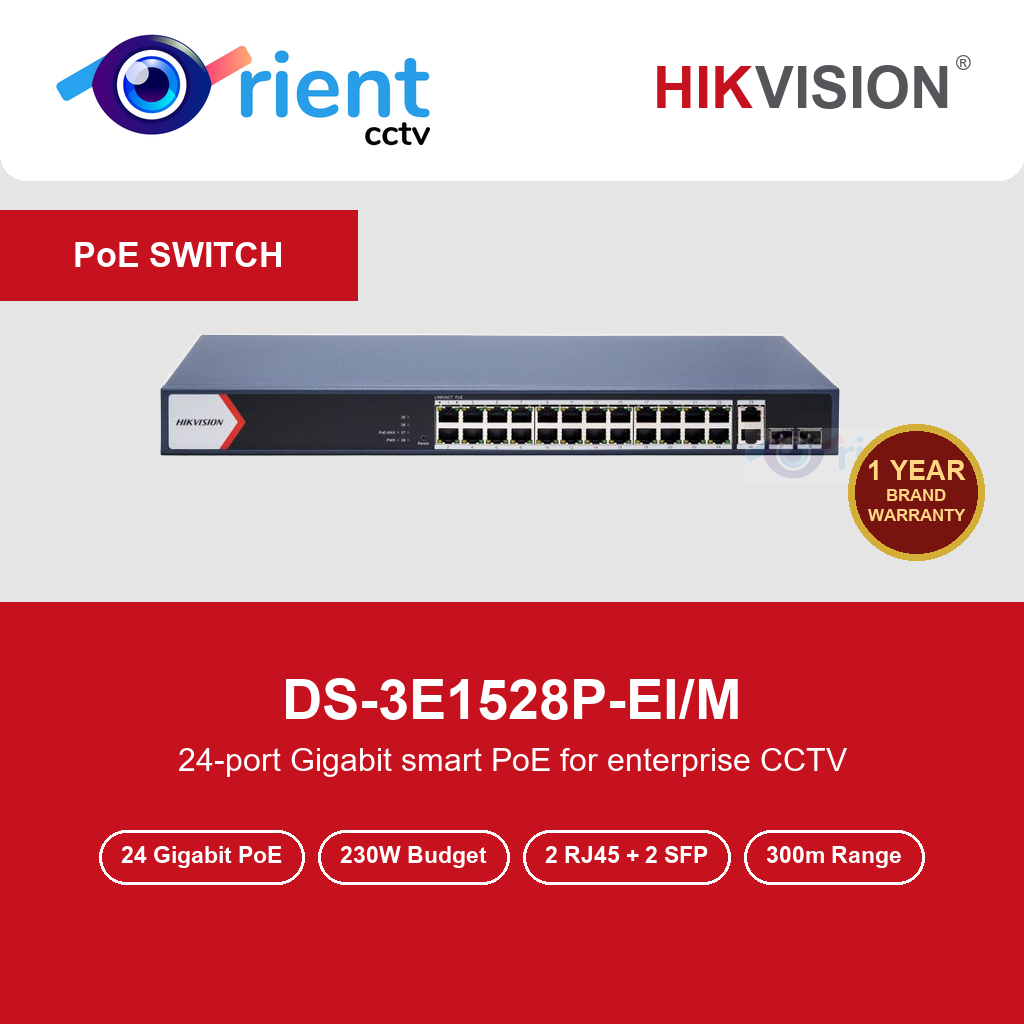

HIKVISION DS-3E1528P-EI/M 24 Port Gigabit Smart PoE Switch | 2 Gigabit Uplinks + 2 SFP | 230W | 300m Extend Mode
- 24 Gigabit PoE ports + 230 W budget: one switch for an entire large site
- 68 Gbps non-blocking fabric keeps all 24 camera streams smooth at once
- All PoE ports reach 300 m — cameras across parking lots need no extenders
- PoE watchdog, QoS, VLAN and loop prevention protect footage around the clock
- Cloud topology view and remote fixes through Hik-Partner Pro
₨ 69,600
Last chance! Sale ends in
00
Days
Days
00
Hours
Hours
00
Min
Min
00
Sec
Sec
Description
HIKVISION DS-3E1528P-EI/M 24 Port Gigabit Smart PoE Switch — 24-port Gigabit smart PoE for enterprise CCTV
24 Gigabit PoE ports + 230 W budget: one switch for an entire large site. 68 Gbps non-blocking fabric keeps all 24 camera streams smooth at once.
Key Features
- 24 Gigabit PoE ports + 230 W budget: one switch for an entire large site
- 68 Gbps non-blocking fabric keeps all 24 camera streams smooth at once
- All PoE ports reach 300 m — cameras across parking lots need no extenders
- PoE watchdog, QoS, VLAN and loop prevention protect footage around the clock
- Cloud topology view and remote fixes through Hik-Partner Pro
Specifications
| Model | DS-3E1528P-EI/M |
| Ports | 24 × Gigabit PoE + 2 × Gigabit RJ45 + 2 × Gigabit SFP |
| PoE Standard | IEEE 802.3af/at, Max. 30 W/port |
| PoE Budget | 230 W |
| Extend Mode | Ports 1–24 up to 300 m |
| Switching Capacity | 68 Gbps |
| Packet Forwarding | 50.59 Mpps |
| MAC Table | 16 K |
| Power Input | 100–240 VAC, 50/60 Hz (Max. 250 W) |
| Surge Protection | 6 kV |
| Mounting | 19″ Rack, 440 × 44 × 220.8 mm |
Why Buy from Orient CCTV?
- 1 Year Hikvision Brand Warranty — genuine units with official warranty
- Cash on Delivery available all over Pakistan
- Expert configuration support on WhatsApp — free setup help
- Main Hall Road, Lahore — trusted CCTV & security supplier, thousands of installations
