DAHUA HAC-HDW-1500T-IL-A 5MP Smart Dual Light TWO WAY TALK HDCVI Fixed-focal Eyeball DOOM Camera - Image 1

DAHUA HAC-HDW-1500T-IL-A 5MP Smart Dual Light TWO WAY TALK HDCVI Fixed-focal Eyeball DOOM Camera - Image 2

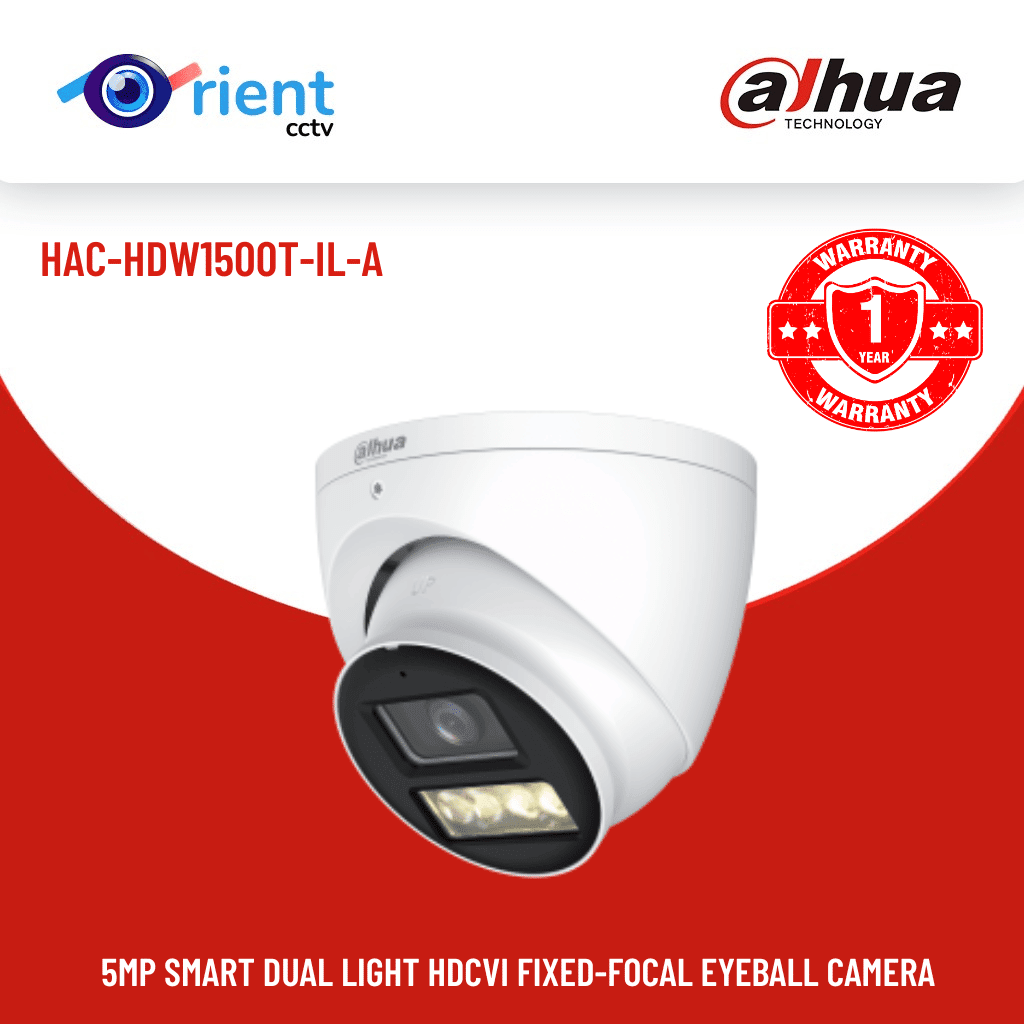

DAHUA HAC-HDW-1500T-IL-A 5MP Smart Dual Light TWO WAY TALK HDCVI Fixed-focal Eyeball DOOM Camera

DAHUA

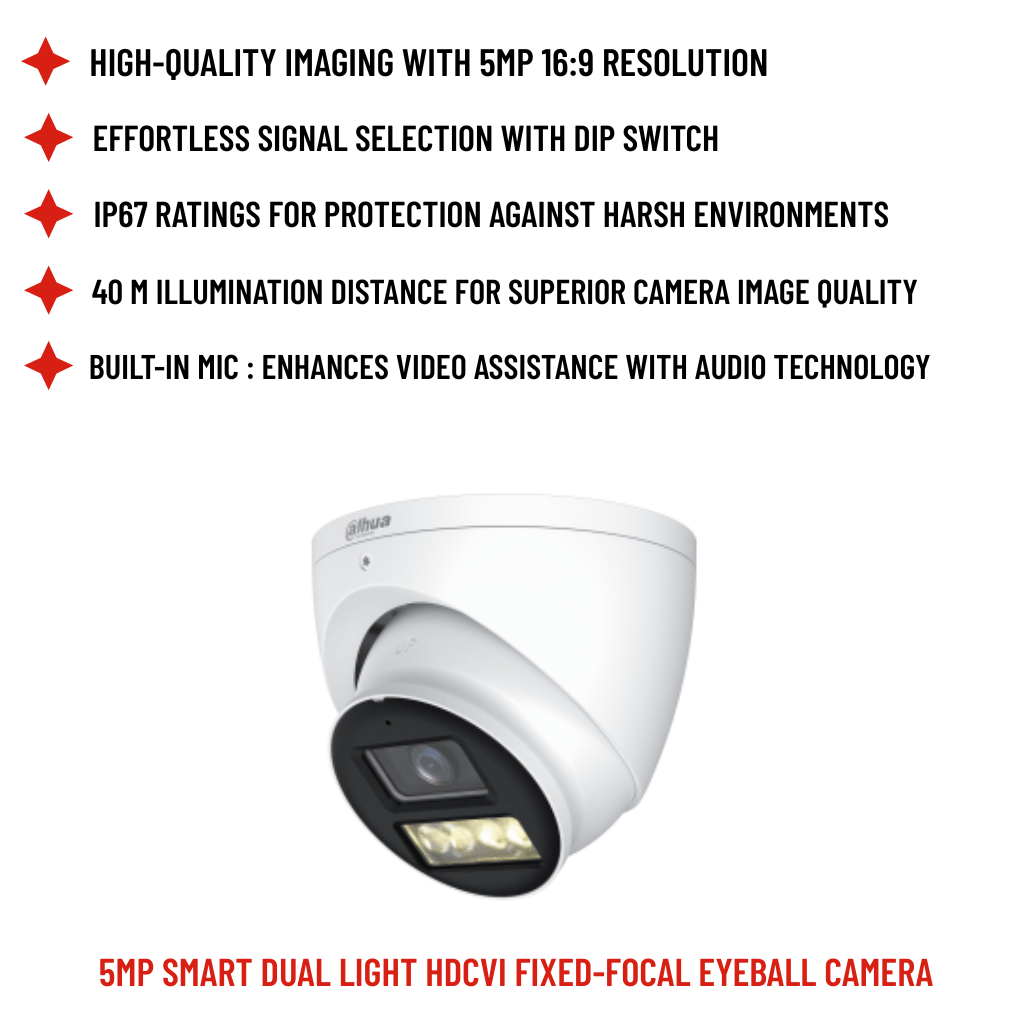

High-Quality Imaging with 5MP 16:9 Resolution

Smart Dual Light: Built-in IR and LED Lights with 3 Illumination Modes Supported

40 m Illumination Distance for Superior Camera Image Quality

TWO WAY TALK : Enhances Video Assistance with speaker and mic option

Smart Light+ : Clear Details with Advanced LED Processing Technology

3DNR & DWDR & Super Adapt Ensures Clear Details in Strong Backlight Conditions

Effortless Signal Selection with DIP Switch

IP67 Ratings for Protection Against Harsh Environments

₨ 7,990

Compare

Add to wishlist

Last chance! Sale ends in

00
Days

00
Hours

00
Min

00
Sec

Description

Dahua HAC-HDW1500T-IL-A 5MP Dome CCTV Camera is a high-performance security camera designed for reliable indoor and outdoor surveillance in Pakistan. With its advanced 5MP resolution, the camera delivers sharp, detailed, and crystal-clear video quality, making it ideal for homes, offices, shops, schools, and commercial spaces.

Featuring Smart Dual Light technology, this camera provides enhanced night vision by automatically switching between infrared and warm light modes for improved visibility in dark environments. Its full-color monitoring capability helps capture clearer details at night, improving overall security performance.

The compact dome design offers a professional look and added protection, while the durable weather-resistant body ensures stable operation in different weather conditions across Pakistan. Built with HDCVI technology, the camera supports smooth HD video transmission over long distances without signal loss.

Easy to install and compatible with Dahua XVR systems, the HAC-HDW1500T-IL-A is a dependable 24/7 surveillance solution for customers looking for strong security, excellent image quality, and long-lasting performa.

Image Sensor	5 MP CMOS
Max. Resolution	2880 (H) × 1620 (V)
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
Min. Illumination	0.01 [email protected] (Color, 30 IRE) 0.001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>65 dB
Illumination Distance	IR: 40 m (131.23 ft) Warm Light: 40 m (131.23 ft)
Illuminator On/Off Control	Auto
Illuminator Number	4 (Multi-core light)
Angle Adjustment	Pan: 0°–360° Tilt: 2°–74.8° Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Auto Focus

No

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 113.3°; V: 62.1°; D: 134.3°
3.6 mm: H: 90.1°; V: 47.8°; D: 109.3°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	59.8 m ( 196.19 ft)	23.9 m ( 78.41 ft)	12.0 m ( 39.37 ft)	6.0 m ( 19.69 ft)
3.6 mm	77 m ( 252.62 ft)	30.8 m ( 101.05 ft)	15.4 m ( 50.52 ft)	7.7 m ( 25.26 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Frame Rate	CVI: PAL: 5M@25 fps; [email protected] fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps CVBS: PAL: 960H NTSC: 960H
Resolution	5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
Day/Night	Auto(ICR)/Color/B/W
BLC	BLC; HLC; WDR
WDR	DWDR
White Balance	Auto;Area white balance
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	Yes
Illumination Mode	Smart IR&WL; WL Mode; IR Mode
Mirror	Yes
Privacy Masking	Off/On (8 areas, rectangle)
Pick-up Distance	8 m (26.25 ft)

Certification

Certifications	CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035;

Audio

Built-in Mic	Yes
Camera Audio	CVI; TVI

Port

Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Power

Power Supply	12 VDC (±30%)
Power Consumption	Max 6.5 W (12 VDC, WLED on)

Environment

Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	<95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	<95% (RH), non-condensing
Protection	IP67
Anti-corrosion Level	Basic Protection

Structure

Casing Material	Metal
Product Dimensions	Φ106.0 mm × 96.9 mm (Φ4.17" × 3.81")
Net Weight	0.50 kg (1.10 lb)
Gross Weight	0.64 kg (1.41 lb)
Installation	Wall mount; ceiling mount; vertical pole mount
