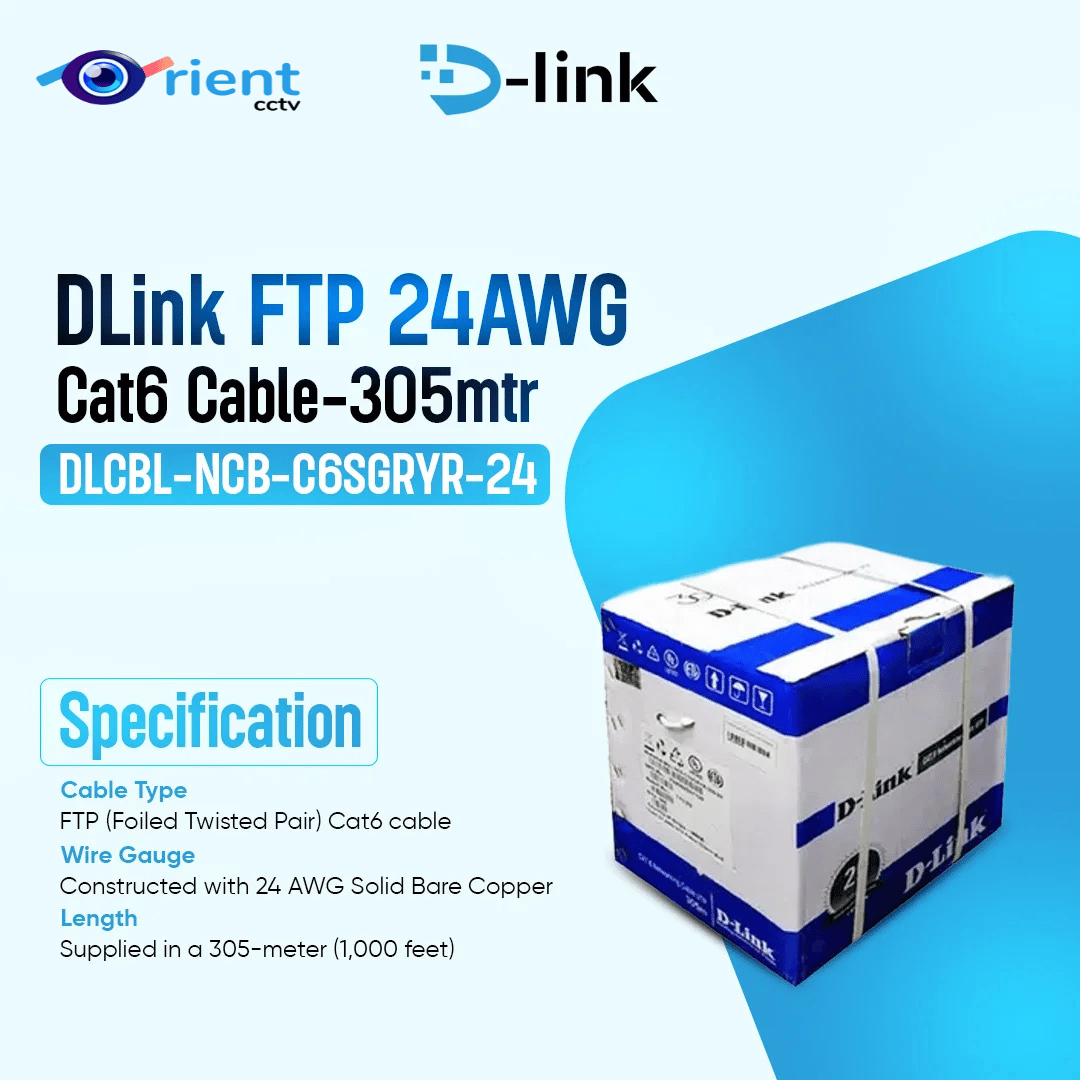

DLCBL-NCB-C6SGRYR-24 (DLink FTP 24AWG Cat6 Cable-305mtr Gray)

Cable Type: Cat6 FTP (Foiled Twisted Pair) — shielded cable for reduced interference and better signal integrity.

Length: 305 meters (≈ 1000 ft) roll.

Conductor: Solid Bare Copper, 24 AWG (~0.520 mm diameter).

Pairs: 4 Pairs FTP with aluminum‑polyester foil shield + drain wire (26 AWG).

Insulation: HD‑PE (High‑Density Polyethylene).

Jacket: Gray PVC UL94V‑0 flame‑retardant.

Central Separator: PE central cross for stable pair geometry.

Cable Diameter: Approx. 6.5 mm nominal.

Electrical/Transmission:

• Characteristic Impedance: 100 Ω ±15%

• Mutual Capacitance: <5.6 nF/100 m

• Nominal Velocity of Propagation: ~69%

• Conductor Resistance: <9.38 Ω/100 m

• Delay Skew: <45 ns/100 m

Standards: Meets Cat6 performance (up to 250 MHz) and suitable for Gigabit Ethernet (1000BASE‑T).
