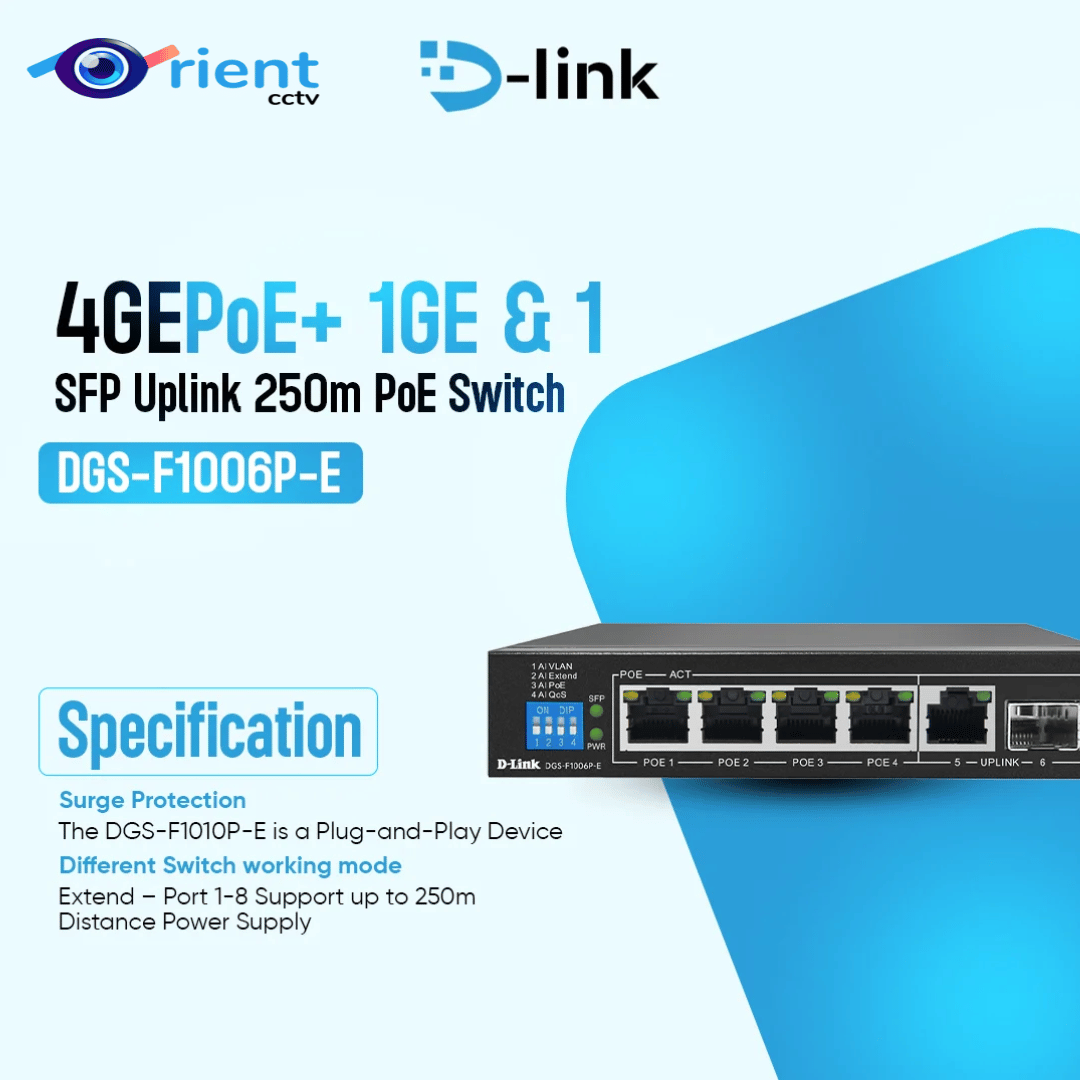

DLSW-DGS-F1006P (D-Link 6-port Gigabit Unmanaged Long 6-port Gigabit Unmanaged Long Range 250m POE+ Switch)

Model: D-Link DGS-F1006P / DGS-F1006P-E — 6-Port Gigabit Unmanaged PoE+ Switch

Ports:
• 4 × 10/100/1000 Mbps Gigabit PoE+ ports (PoE power)
• 2 × 10/100/1000 Mbps Gigabit uplink ports (no PoE)

PoE Standard: IEEE 802.3af / IEEE 802.3at (PoE+)

Total PoE Power Budget: ~60 W (≈30 W max per PoE port)

Extended PoE Reach: Supports Long Reach PoE up to 250 m (Extend Mode via DIP switch)

Smart DIP Switch Modes: Extend, VLAN, QoS, PoE Reset (hardware toggles)

Auto Features: Auto MDI/MDI-X on all ports; plug-and-play (unmanaged)

Surge Protection: 6 kV lightning/surge protection for network safety

Housing: Metal, fanless design — silent and durable

Switching Capacity: ~ 12 Gbps with store-and-forward switching

LEDs: Power, link/activity, PoE status indicators

Physical: Compact desktop/ wall-mountable metal case; ~125 × 75 × 27 mm

Operating Conditions: 0 °C to 40 °C; humidity non-condensing
