HIKVISION DS-3E0510P-E/M 8 Port Gigabit Unmanaged PoE Switch | 1 Gigabit Uplink + 1 SFP | 58W PoE Budget | Fanless

Description

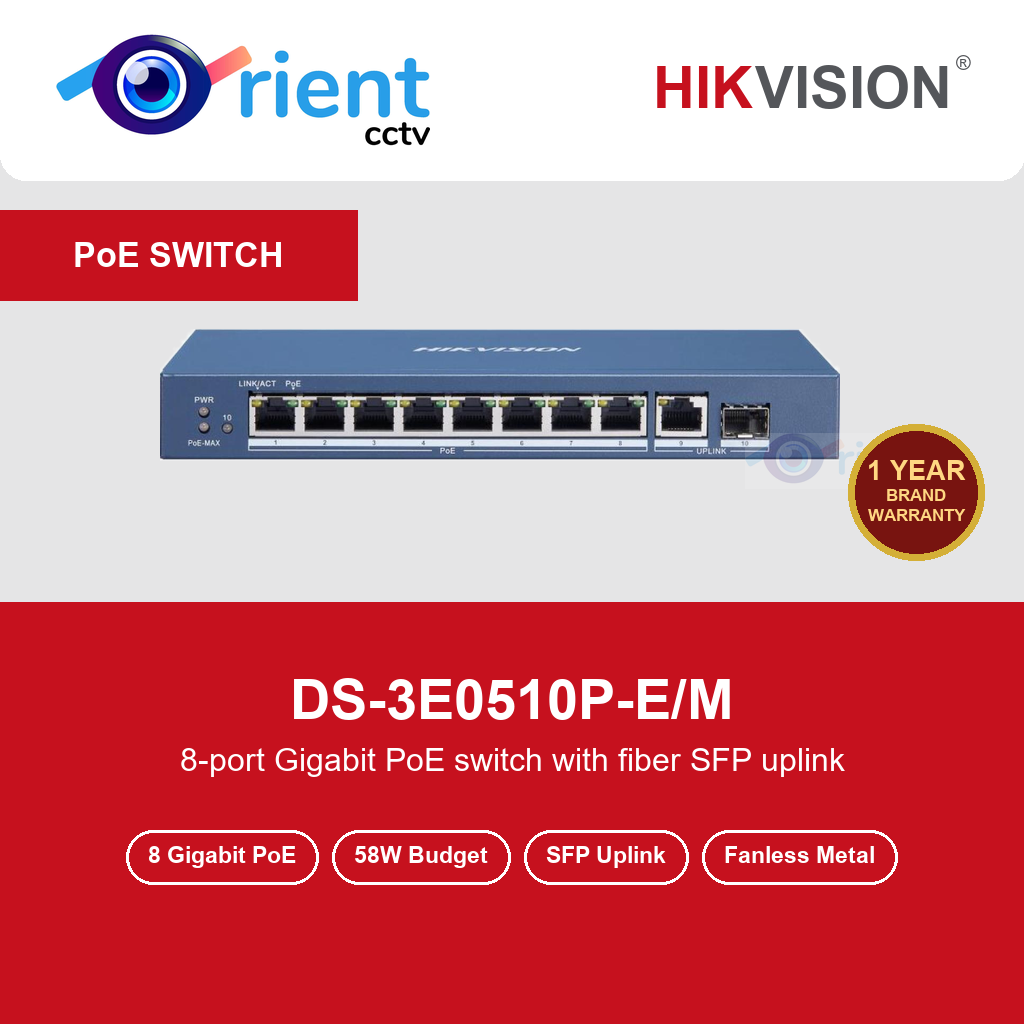

HIKVISION DS-3E0510P-E/M 8 Port Gigabit Unmanaged PoE Switch — 8-port Gigabit PoE switch with fiber SFP uplink

Full Gigabit on every port — smooth 4K camera streams with zero lag. 58 W PoE budget powers 8 cameras or access points off one compact box.

Key Features

• Full Gigabit on every port — smooth 4K camera streams with zero lag
• 58 W PoE budget powers 8 cameras or access points off one compact box
• SFP fiber slot links buildings hundreds of metres apart; RJ45 uplink for the NVR
• 6 kV surge protection on PoE ports shields cameras from lightning damage
• Fanless all-metal shell runs silent — perfect beside a counter or desk

Specifications

Model	DS-3E0510P-E/M
Ports	8 × Gigabit PoE + 1 × Gigabit RJ45 + 1 × Gigabit SFP
PoE Standard	IEEE 802.3af/at, Max. 30 W/port
PoE Budget	58 W
Switching Capacity	20 Gbps
Packet Forwarding	14.88 Mpps
MAC Table	4 K
Power Input	48 VDC / 1.35 A (Max. 65 W)
Surge Protection	6 kV on PoE ports
Mounting	Desktop / Wall-mount
Dimensions	217.6 × 27.8 × 108.55 mm, fanless
