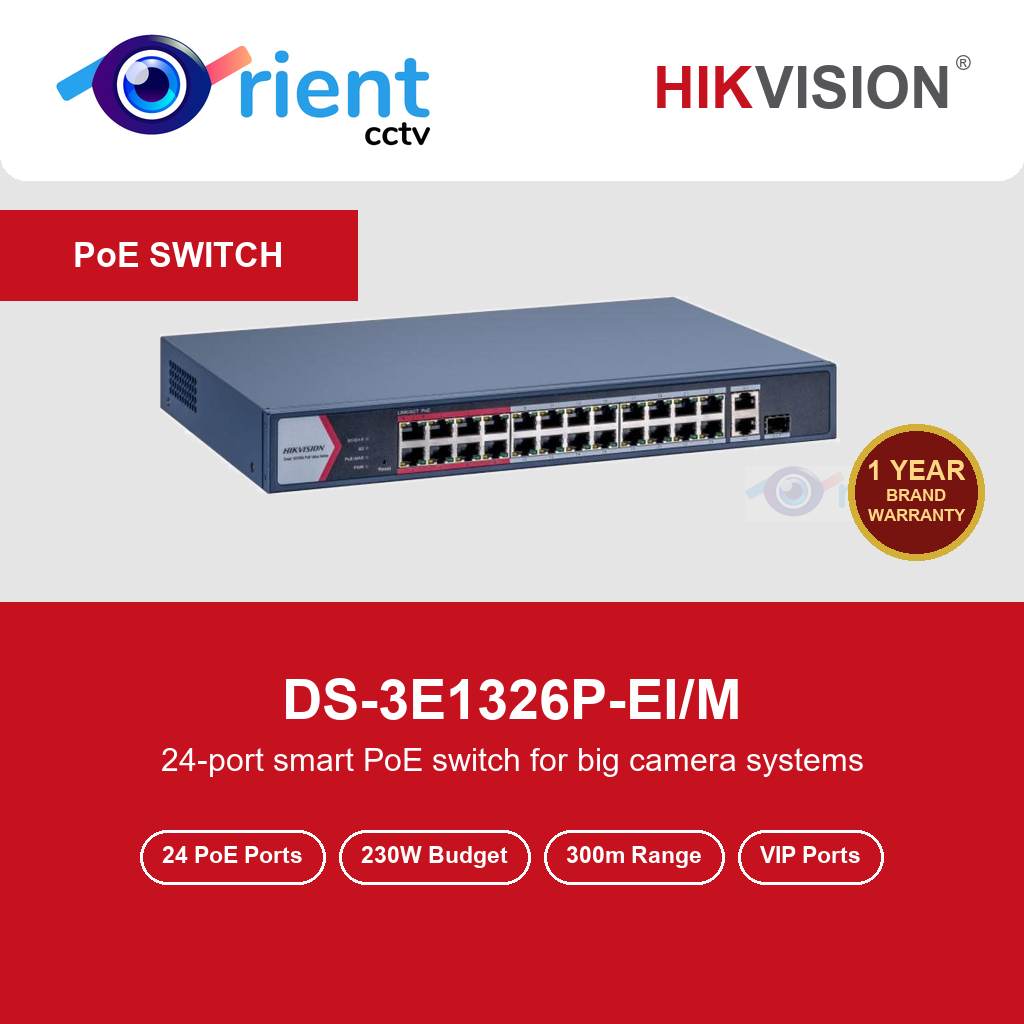

HIKVISION DS-3E1326P-EI/M 24 Port Fast Ethernet Smart PoE Switch | 1 Gigabit Uplink + 1 Gigabit Combo | 230W | 300m Extend Mode

Description

HIKVISION DS-3E1326P-EI/M 24 Port Fast Ethernet Smart PoE Switch — 24-port smart PoE switch for big camera systems

Powers a full 24-camera site from one rack unit with a 230 W PoE budget. All 24 ports reach up to 300 m — cover large plazas and warehouses without extenders.

Key Features

• Powers a full 24-camera site from one rack unit with a 230 W PoE budget
• All 24 ports reach up to 300 m — cover large plazas and warehouses without extenders
• PoE watchdog detects hung cameras and power-cycles them automatically
• VIP ports guarantee footage from your most important cameras always gets through
• 802.1Q VLAN, STP/RSTP loop prevention and cable diagnostics built in

Specifications

Model	DS-3E1326P-EI/M
Ports	24 × 10/100 Mbps PoE + 1 × Gigabit Combo + 1 × Gigabit RJ45
PoE Standard	IEEE 802.3af/at, Max. 30 W/port
PoE Budget	230 W
Extend Mode	Ports 1–24 up to 300 m
Switching Capacity	14.8 Gbps
Packet Forwarding	11.01 Mpps
MAC Table	16 K
Power Input	100–240 VAC, 50/60 Hz (Max. 250 W)
Surge Protection	6 kV
Mounting	19″ Rack (mounting ears included)
