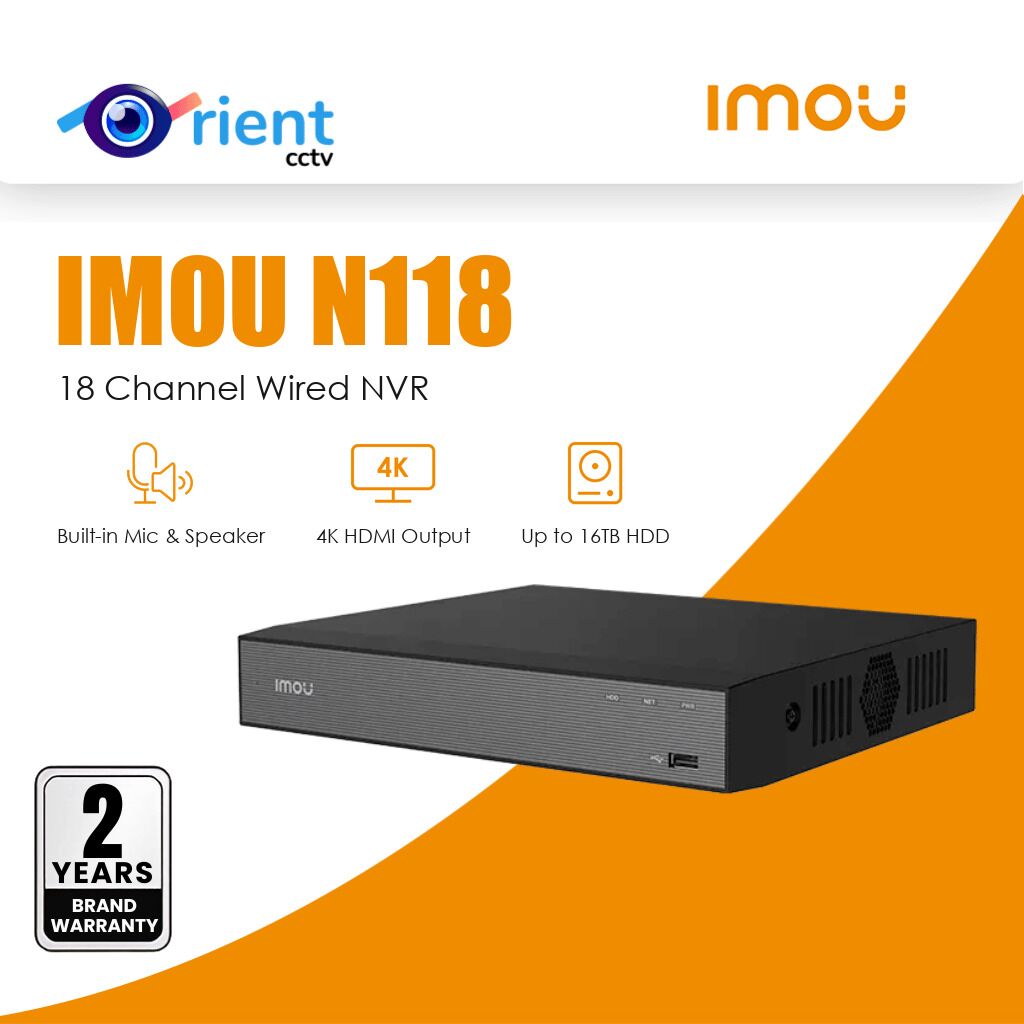

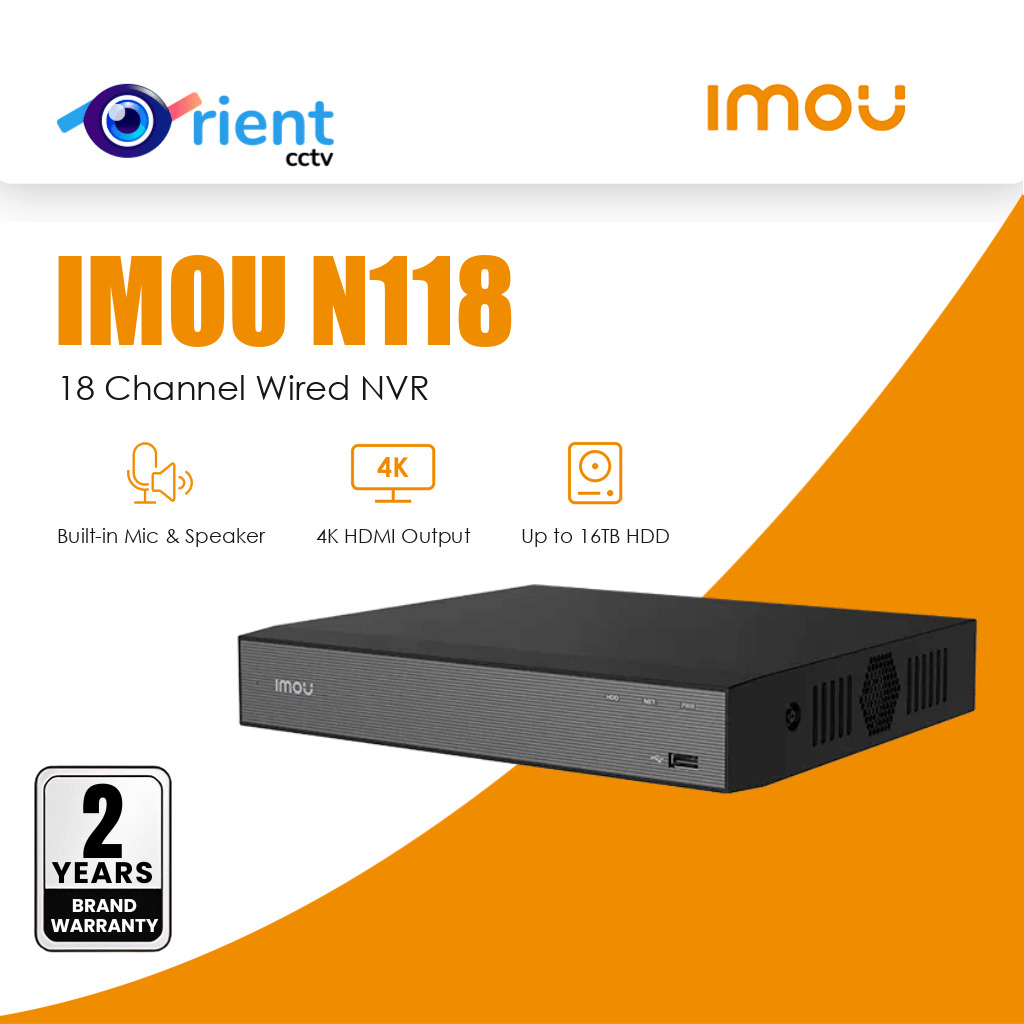

IMOU N118 18 Channel Wired NVR (NVR-N118-8A0E) | 4K Output, H.265, Built-in Mic & Speaker, Up to 16TB HDD

Description

IMOU N118 18 Channel Wired NVR – 4K Recorder for IMOU PoE and IP Cameras

The IMOU N118 (NVR-N118-8A0E) is an 18-channel wired network video recorder. It connects to your router or PoE switch with one LAN cable and records up to 18 IP cameras on a single hard disk. It suits homes, shops, offices, schools, warehouses and factories that want one recorder for the whole camera system.

H.265 compression keeps recordings small, so the same hard disk stores more days. The HDMI port shows live view and playback in up to 4K, and a VGA port is there for older monitors. A built-in microphone and speaker let you talk through two-way-audio cameras directly from the recorder, with no extra audio equipment.

IMOU cameras on the same network are found and added automatically, and other brands connect through ONVIF. With the Imou Life app you can watch live video, play back recordings and get motion, person and vehicle alerts on your mobile from anywhere.

Key Features

• 18 camera channels with 90 Mbps incoming bandwidth
• Supports cameras up to 8MP (4K)
• HDMI output up to 4K, plus VGA output
• H.265 / H.264 video compression
• Built-in microphone and speaker for two-way talk
• 1 SATA port for a hard disk up to 16TB
• 4-channel playback with 2x / 4x / 8x / 16x speed
• Motion, person and vehicle detection alerts
• ONVIF support and remote viewing in the Imou Life app

N118 (Wired) or N118W (Wi-Fi) – which one do you need?

Both recorders support 18 cameras. The difference is how the cameras connect:

• N118 (this model) – wired only. Best for PoE and LAN cameras connected through a switch or router. It has no Wi-Fi antennas.
• N118W – has four antennas and dual-band Wi-Fi 6, so IMOU Wi-Fi cameras can connect to the recorder without cables.

Please note: the N118 has no PoE ports. For PoE cameras, use a PoE switch such as the IMOU SF106P (4 port) or the IMOU SF110P (8 port). The hard disk is not included.

Specifications

Model	IMOU N118 (NVR-N118-8A0E)
Type	Wired NVR (LAN) – no Wi-Fi
Camera Channels	18
Incoming Bandwidth	90 Mbps
Video Compression	H.265 / H.264
Camera Resolution	Up to 8MP (4K)
Playback Decoding	4-ch 8MP@15fps / 4-ch 5MP@30fps
Video Output	1 × HDMI (up to 4K), 1 × VGA
Audio	Built-in microphone and speaker, two-way talk
Hard Disk	1 SATA port, up to 16TB (not included)
Backup	USB flash drive (MP4)
Network	1 × RJ-45 10/100 Mbps
USB	2 × USB
PoE Ports	None (use a PoE switch)
Smart Detection	Motion / Person / Vehicle
Protocol	ONVIF
Mobile App	Imou Life (Android & iOS)
Power Supply	DC 12V 2A
Power Consumption	Under 9W average, under 19W peak (with hard disk)
Working Temperature	-10°C to +45°C
Dimensions	260 × 227.5 × 45 mm
Weight	850 g (without hard disk)
Brand	IMOU
Warranty	2 Years Brand Warranty
