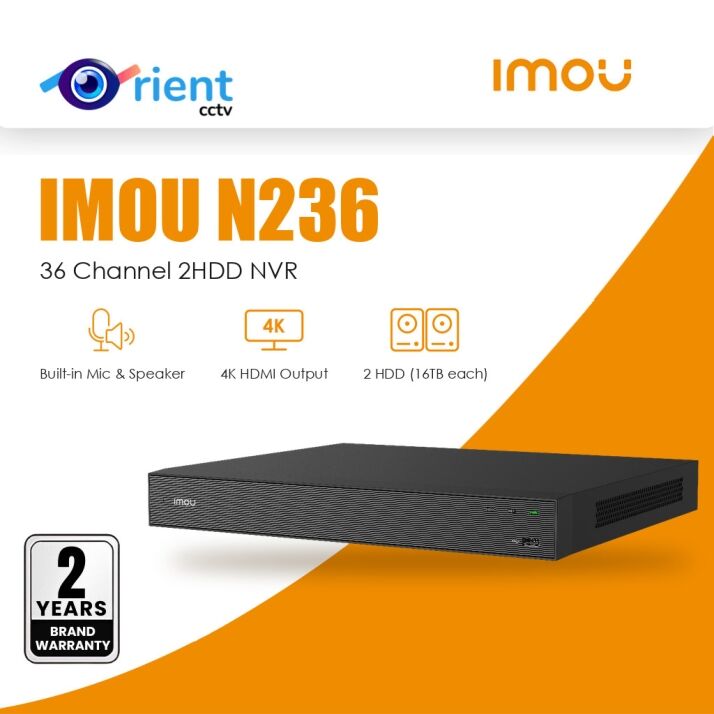

IMOU N236 36 Channel 2HDD NVR (NVR-N236-8A0E) | 4K Output, H.265, Built-in Mic & Speaker, 2 SATA up to 16TB Each

IMOU

36-Channel NVR – record up to 36 IP cameras over your LAN network
2 Hard Disk Bays – 2 SATA ports, up to 16TB per disk (hard disks sold separately)
320 Mbps Incoming Bandwidth – room for large 4K / 8MP camera systems
4K HDMI + VGA Output – sharp live view and playback on a TV or monitor
H.265 / H.264 Compression – more recording days on the same hard disks
Built-in Mic & Speaker – two-way talk without extra audio devices
Works with IMOU and ONVIF IP cameras – IMOU cameras are added automatically
Imou Life App – live view, playback and motion / person / vehicle alerts on your mobile
2 Years Brand Warranty | COD available

₨ 39,000

💵Cash on Delivery all over Pakistan

🚚Ships within 24 hours · delivered in 2–4 working days (TCS / PostEx)

💳Pay online (card / bank) and save 4%

🛡️2-year IMOU brand warranty

🔁14-day return & replacement policy on every product

📞Setup help on WhatsApp in Urdu · Mon–Sat, 10:30 am – 7:30 pm (Sunday off)

Order on WhatsApp

⇄ Compare with other cameras

Compare

Add to wishlist

Last chance! Sale ends in

00
Days

00
Hours

00
Min

00
Sec

Description

IMOU N236 36 Channel NVR – 2 Hard Disk, 4K Recorder for Large IMOU and IP Camera Systems

The IMOU N236 (NVR-N236-8A0E) is a 36-channel, 1U network video recorder with two hard disk bays. It connects to your router or PoE switch with one LAN cable and records up to 36 IP cameras. It is built for bigger sites – factories, warehouses, schools, hospitals, plazas, large houses and multi-floor offices – where one recorder has to handle the whole camera system.

With 320 Mbps incoming bandwidth the N236 handles cameras up to 8MP (4K). H.265 compression keeps recordings small, and the two SATA bays (up to 16TB per disk) give you long recording backup. The HDMI port shows live view and playback in up to 4K, and a VGA port is there for older monitors. A built-in microphone and speaker let you talk through two-way-audio cameras directly from the recorder.

IMOU cameras on the same network are found and added automatically, and other brands connect through ONVIF. With the Imou Life app you can watch live video, play back recordings and get motion, person and vehicle alerts on your mobile from anywhere.

Key Features

36 camera channels with 320 Mbps incoming / 320 Mbps outgoing bandwidth
Supports cameras up to 8MP (4K): 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p
2 SATA hard disk bays, up to 16TB per disk
HDMI output up to 4K (3840 × 2160), plus VGA output
H.265 / H.264 video compression
Built-in microphone and speaker for two-way talk
4-channel playback with 2x / 4x / 8x / 16x speed and smart search
Motion, person and vehicle detection alerts
Gigabit (10/100/1000 Mbps) network port
ONVIF support and remote viewing in the Imou Life app

Which IMOU NVR do you need?

N110 – up to 10 cameras, 1 hard disk
N118 – up to 18 cameras, 1 hard disk
N236 (this model) – up to 36 cameras, 2 hard disks – for large systems and longer recording

Please note: the N236 has no PoE ports. For PoE cameras, use a PoE switch such as the IMOU SF110P (8 port) or the IMOU SF106P (4 port). Hard disks are not included.

Specifications

Model	IMOU N236 (NVR-N236-8A0E)
Type	Wired NVR (LAN), 1U – no Wi-Fi, no PoE ports
Camera Channels	36
Network Bandwidth	320 Mbps incoming, 320 Mbps outgoing
Camera Resolution	8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p
Decoding Capability	4-ch 8MP@15fps / 4-ch 6MP@25fps / 4-ch 5MP@30fps / 5-ch 4MP@30fps / 10-ch 1080p@30fps
Live Display	1 / 4 / 8 / 9 / 10 / 16 / 19 / 25 / 36 split screen
Video Compression	H.265 / H.264
Audio Compression	AAC
Video Output	1 × HDMI (up to 4K 3840 × 2160), 1 × VGA (up to 1920 × 1080)
Audio	Built-in microphone and speaker, two-way talk
Hard Disk	2 SATA ports, up to 16TB per disk (not included)
Backup	USB flash drive (MP4)
Network	1 × RJ-45 10/100/1000 Mbps
USB	2 × USB
Smart Detection	Motion / Person / Vehicle
Protocol	ONVIF (20.12), P2P, DDNS, IPv4 / IPv6
Mobile App	Imou Life (Android & iOS)
Power Supply	DC 12V 2A
Power Consumption	9W or less (without hard disk)
Working Temperature	-10°C to +45°C
Dimensions	320 × 374 × 45 mm
In the Box	NVR, power adapter, mouse, SATA power cable, 2 SATA data cables, Ethernet cable, screws, quick start guide
Brand	IMOU
Warranty	2 Years Brand Warranty
