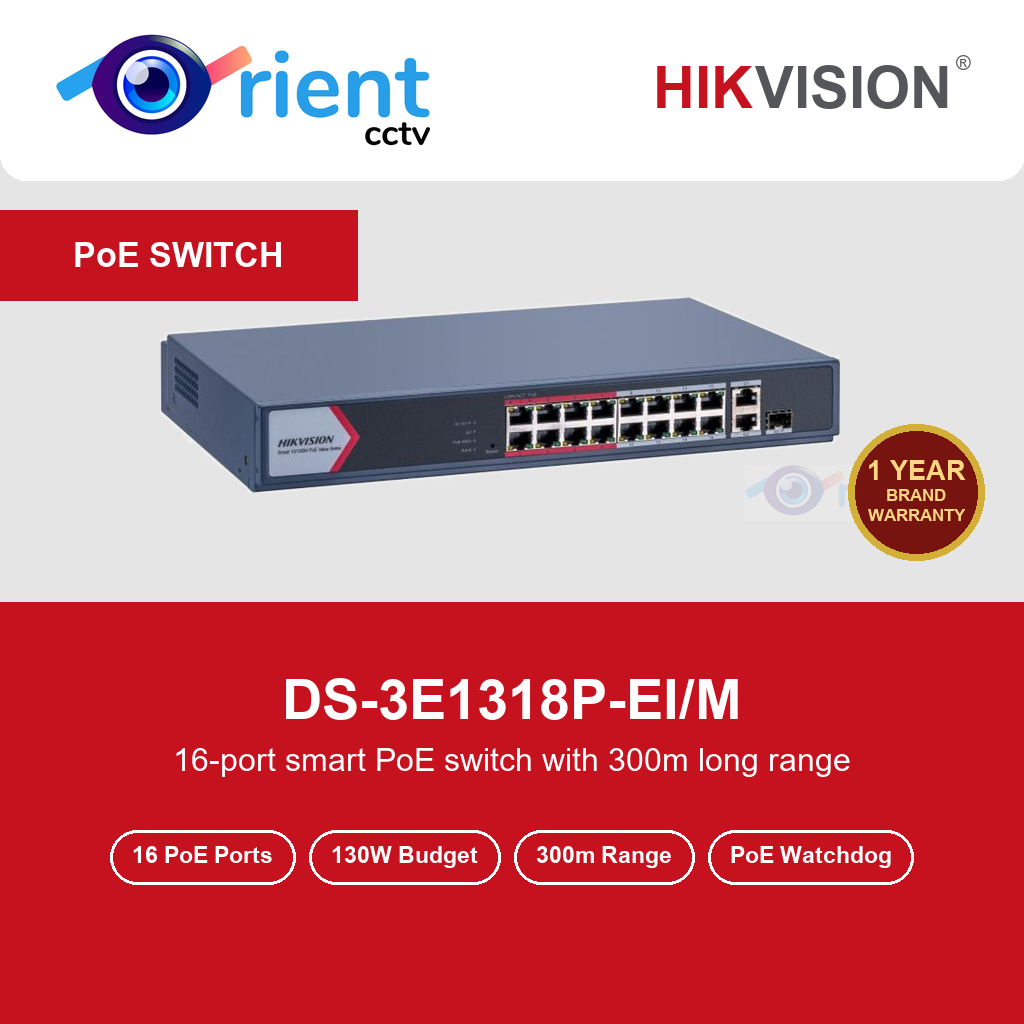

HIKVISION DS-3E1318P-EI/M 16 Port Fast Ethernet Smart PoE Switch | 1 Gigabit Uplink + 1 Gigabit Combo | 130W | 300m Extend Mode

Description

HIKVISION DS-3E1318P-EI/M 16 Port Fast Ethernet Smart PoE Switch — 16-port smart PoE switch with 300m long range

Runs 16 IP cameras up to 300 m away — double the normal Ethernet distance. PoE watchdog auto-restarts frozen cameras, cutting site visits.

Key Features

• Runs 16 IP cameras up to 300 m away — double the normal Ethernet distance
• PoE watchdog auto-restarts frozen cameras, cutting site visits
• Gigabit RJ45 + Gigabit combo uplinks keep NVR footage flowing without bottlenecks
• VIP ports 1–8 prioritise critical cameras when bandwidth is tight
• Remote cloud management and topology view via Hik-Partner Pro

Specifications

Model	DS-3E1318P-EI/M
Ports	16 × 10/100 Mbps PoE + 1 × Gigabit RJ45 + 1 × Gigabit Combo
PoE Standard	IEEE 802.3af/at, Max. 30 W/port
PoE Budget	130 W
Extend Mode	Ports 1–16 up to 300 m
Switching Capacity	9.2 Gbps
Packet Forwarding	6.84 Mpps
MAC Table	16 K
Power Input	100–240 VAC, 50/60 Hz (Max. 150 W)
Surge Protection	6 kV
Mounting	19″ Rack (mounting ears included)
